Corn Steep Liquor Fermented Protein Technology
• Process Advantages: Bio-fermentation using corn steep liquor, a by-product of corn starch production, to realize waste liquid resource utilization. The resulting fermented protein features high digestibility with crude protein ≥45%. It brings low raw material cost and combines environmental and economic benefits.
• Process R&D and Optimization Service: Strain screening, fermentation formula development, process design, lab & pilot test and parameter optimization are available to improve protein conversion rate and cut energy consumption and production cost.
• Production Technical Support: Fermentation equipment commissioning, operation training and on-site process guidance to ensure stable and continuous production.
• Technical Consultancy & Solution Service: Integrated technical services including project planning, production line layout design and complete process package.
• After-sales O&M Service: Long-term technical support covering equipment maintenance, troubleshooting and process upgrading.
• Pilot Scale-up & Industrialization Service: Lab test, pilot trial, process scale-up and industrial implementation delivery.
• Foundation for successful technology application: 30% Process + 70% Localized Execution.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Corn Steep Liquor Fermented Protein Technology — Turnkey Solution for Bio-Fermentation Production
Corn Steep Liquor Fermented Protein Technology converts corn steep liquor — a liquid by-product of corn starch processing — into fermented protein feed with a crude protein content of ≥45%. Shaanxi Zhenhuacui Biotechnology Co., Ltd. developed this process through over 10 years in biotechnology manufacturing and 8 years focused on nutritional fermentation R&D. The solution covers everything from strain selection and process design to equipment commissioning and after-sales support, making it practical for operations located near starch processing facilities with existing waste liquid management infrastructure.
Technology Overview
Corn steep liquor enters the process directly from corn starch production lines. The liquid contains soluble nitrogen, sugars, and organic acids that support microbial growth without requiring additional nutrient supplementation.
Selected functional strains are inoculated into the substrate under controlled fermentation conditions. Microorganisms grow and metabolize within the liquid, synthesizing bacterial protein and progressively increasing the crude protein concentration of the material.

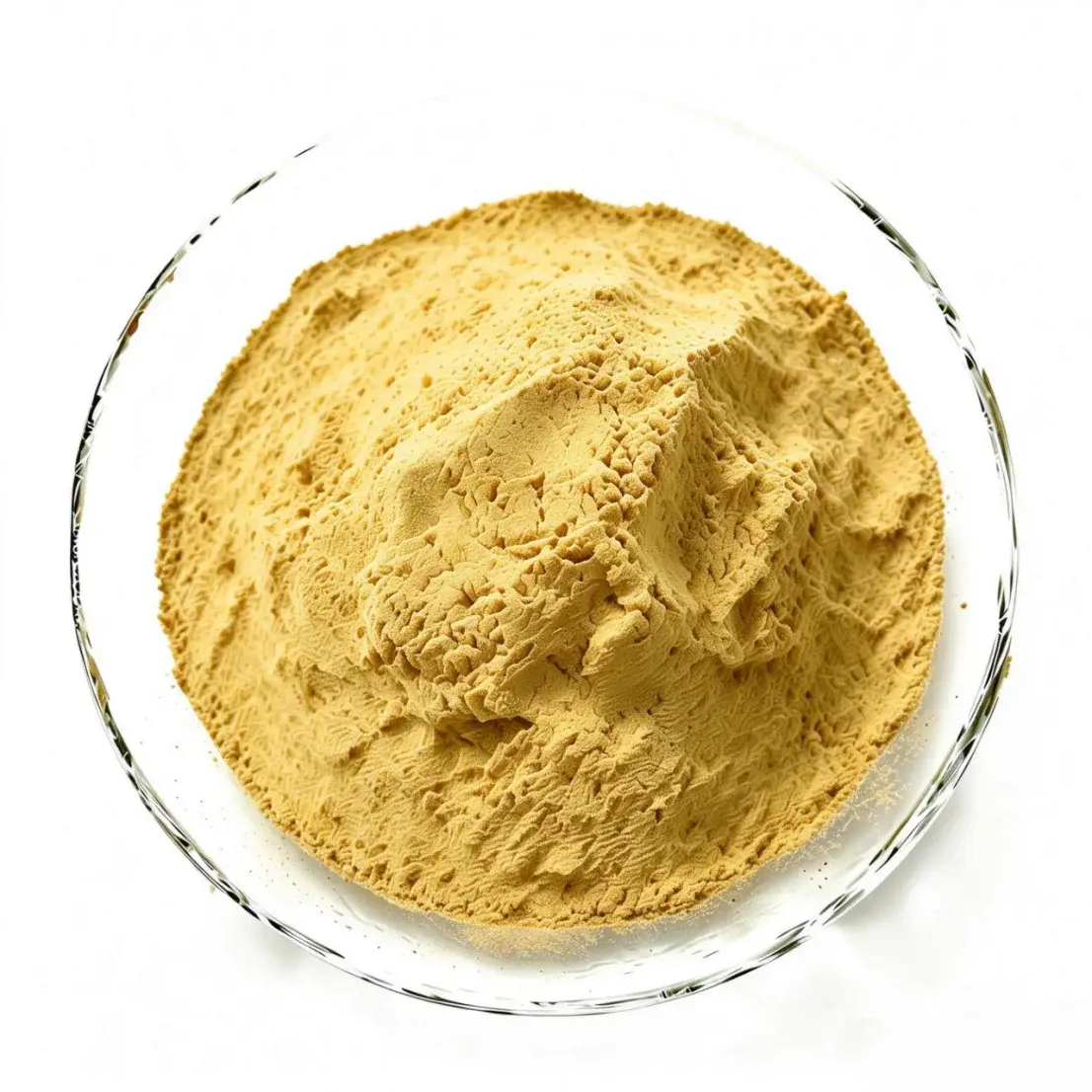

After fermentation, the broth is processed through evaporation, concentration, and drying to produce a finished feed ingredient: a pale yellow to brownish-yellow fine powder with high digestibility. This output is suitable for inclusion in standard animal feed formulations.
Production Process
The complete production flow:
Corn Steep Liquor → Strain Inoculation & Fermentation → Evaporation & Concentration → Drying → Finished Fermented Protein Feed
Each stage operates under defined parameter controls:
- Fermentation stage: Strain selection, pH, temperature, and aeration rate are managed to maintain consistent bioconversion.
- Concentration stage: Evaporation removes excess water while preserving protein integrity.
- Drying stage: Final moisture reduction produces a stable, free-flowing powder ready for feed formulation.
The process uses submerged microbial liquid fermentation, which supports continuous operation at production scales ranging from pilot to full industrial.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Raw Material | Corn steep liquor (corn starch by-product) |
| Fermentation Method | Submerged microbial liquid fermentation |
| Crude Protein Content | ≥45% |
| Product Form | Pale yellow to brownish-yellow fine powder |
| Key Process Steps | Strain inoculation → fermentation → evaporation → drying |
| Core Technology Focus | Strain screening, fermentation condition control, drying management |
| Production Scale Support | Pilot scale to industrial scale |
Because corn steep liquor is a by-product that starch processors would otherwise need to treat or dispose of, using it as a fermentation substrate reduces both raw material cost and wastewater treatment burden at the source facility.
Equipment Included
A complete production line covers all core unit operations:

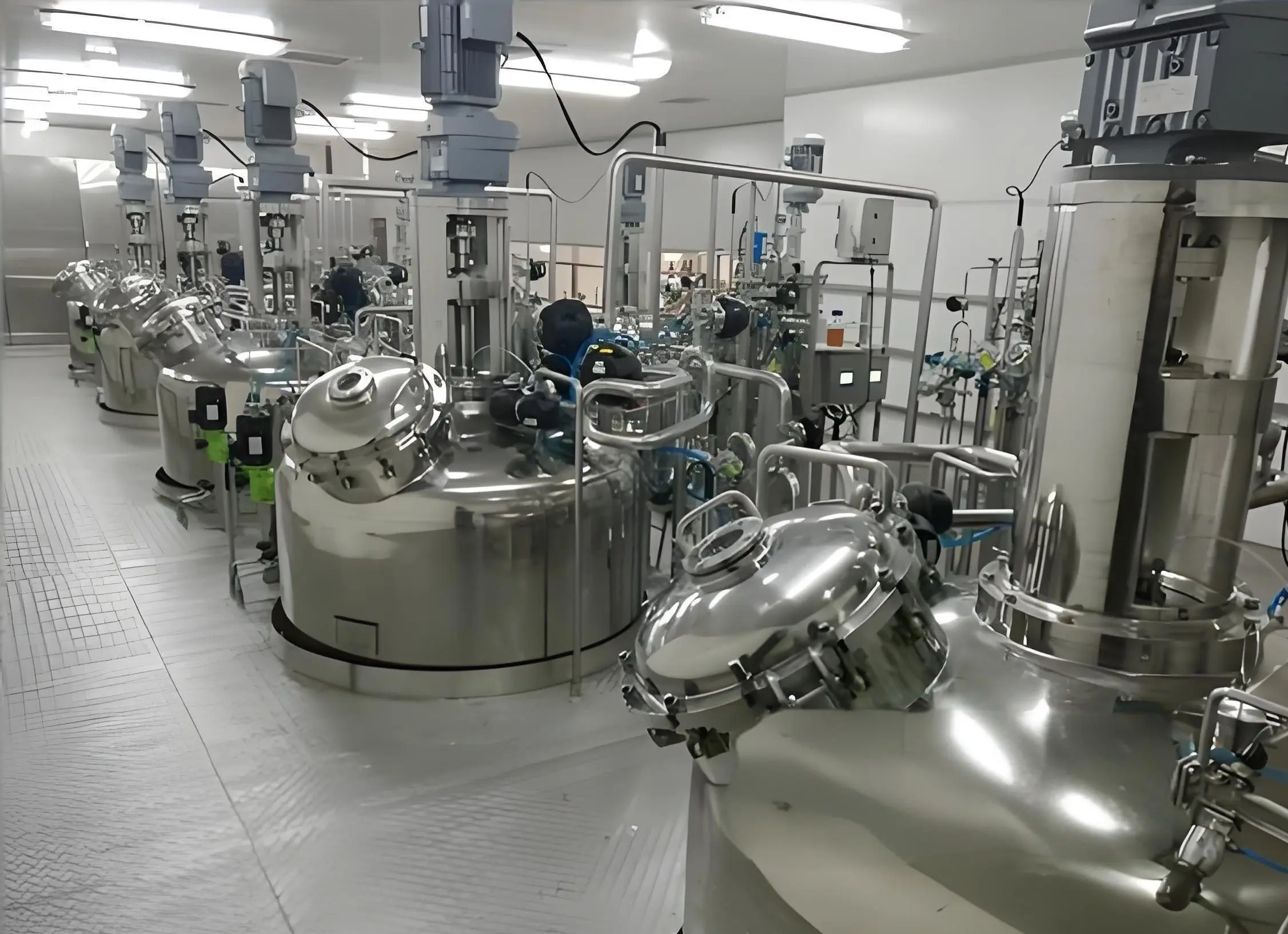

- Fermentation tanks with temperature, pH, and dissolved oxygen control systems
- Evaporator and concentration units for water removal
- Spray dryer or drum dryer for final powder production
- Sterilization and CIP systems for production hygiene
- Control and monitoring panels for real-time process management
- Storage and packaging units for finished product handling
Equipment configuration is matched to your target production capacity, whether at pilot scale or full industrial scale.

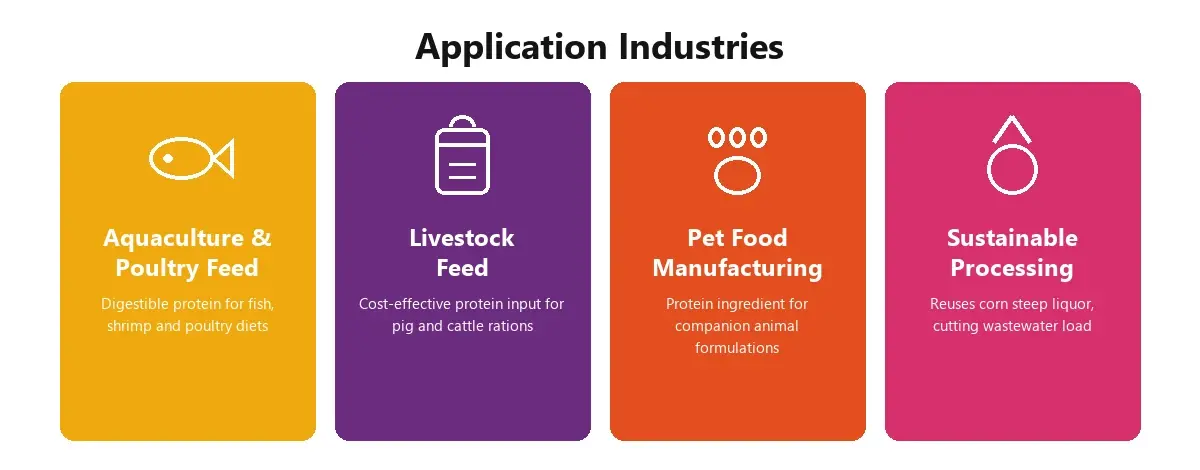

Application Industries
The fermented protein produced through this process functions as a high-protein feed ingredient in animal nutrition. Typical application sectors include:
- Aquaculture feed — digestible protein source for fish and shrimp diets
- Poultry feed — protein supplement supporting growth and feed conversion
- Livestock feed — cost-effective protein input for pigs and cattle
- Pet food manufacturing — protein ingredient for companion animal products
At the source facility, redirecting corn steep liquor into this process also reduces the volume of wastewater requiring treatment, lowering associated compliance costs.

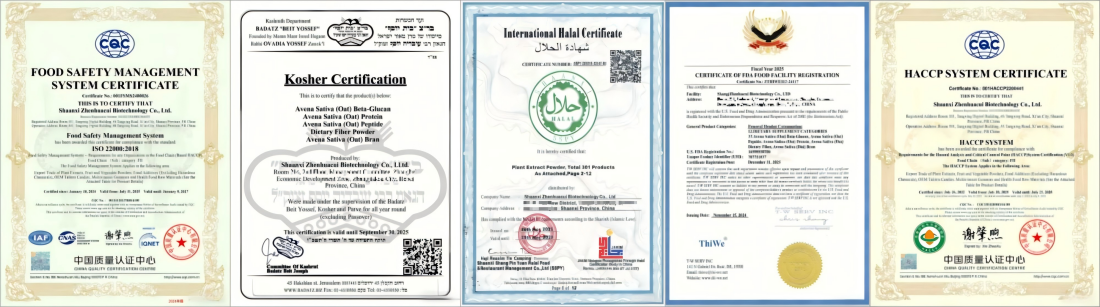

Certificate
- cGMP (Current Good Manufacturing Practice)
- FSSC22000 (Food Safety System Certification)
- ISO9001 Quality Management
- HACCP Food Safety
- HALAL and KOSHER Certifications
Turnkey Service Scope
The full Corn Steep Liquor Fermented Protein Technology package is structured around five service areas:
Process R&D and Optimization
Strain screening, fermentation formula development, process design, and parameter optimization through lab and pilot testing to improve protein conversion and manage energy use.

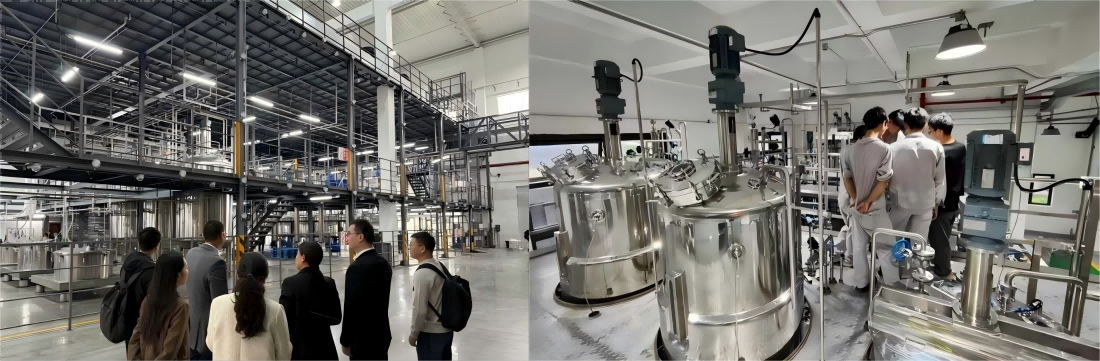

Production Technical Support
Equipment commissioning, operator training, and on-site process guidance during startup and initial production runs.
Technical Consultancy and Solution Design
Project planning, production line layout design, and a process package configured to your site conditions and capacity targets.
Pilot Scale-up and Industrialization
Progression from lab test to pilot trial to full industrial implementation, with direct technical support at each transition stage.
After-Sales Operations and Maintenance
Ongoing technical support covering equipment maintenance, fault diagnosis, and process adjustment as production requirements change over time.
Frequently Asked Questions
Q1: What crude protein content does the finished product reach?
A: The finished fermented protein feed is designed to meet a crude protein specification of ≥45%. Strain selection, fermentation control, and downstream processing are all configured to maintain this threshold.
Q2: Where does the raw material come from?
A: Corn steep liquor is the fermentation substrate. It is generated as a liquid by-product during corn starch processing and contains soluble nitrogen, sugars, and organic acids that support microbial growth.
Q3: What fermentation method does this technology use?
A: The process uses submerged microbial liquid fermentation. Functional strains are cultured in corn steep liquor under controlled temperature, pH, and aeration conditions to drive bacterial protein synthesis.
Q4: Can this process be adapted to different production scales?
A: The technology supports lab-scale testing, pilot-scale trials, and full industrial-scale production. Process parameters are adjusted at each stage to maintain consistent output quality.
Q5: What ongoing support is available after the production line is commissioned?
A: After-sales service covers equipment maintenance, troubleshooting, operator re-training, and process adjustments. Support continues beyond initial commissioning as production conditions evolve.
Q6: What site conditions are required?
A: This technology is most suitable for locations near mature starch processing operations with existing waste liquid management capacity. A site assessment is conducted during project planning to confirm feasibility before investment proceeds.
