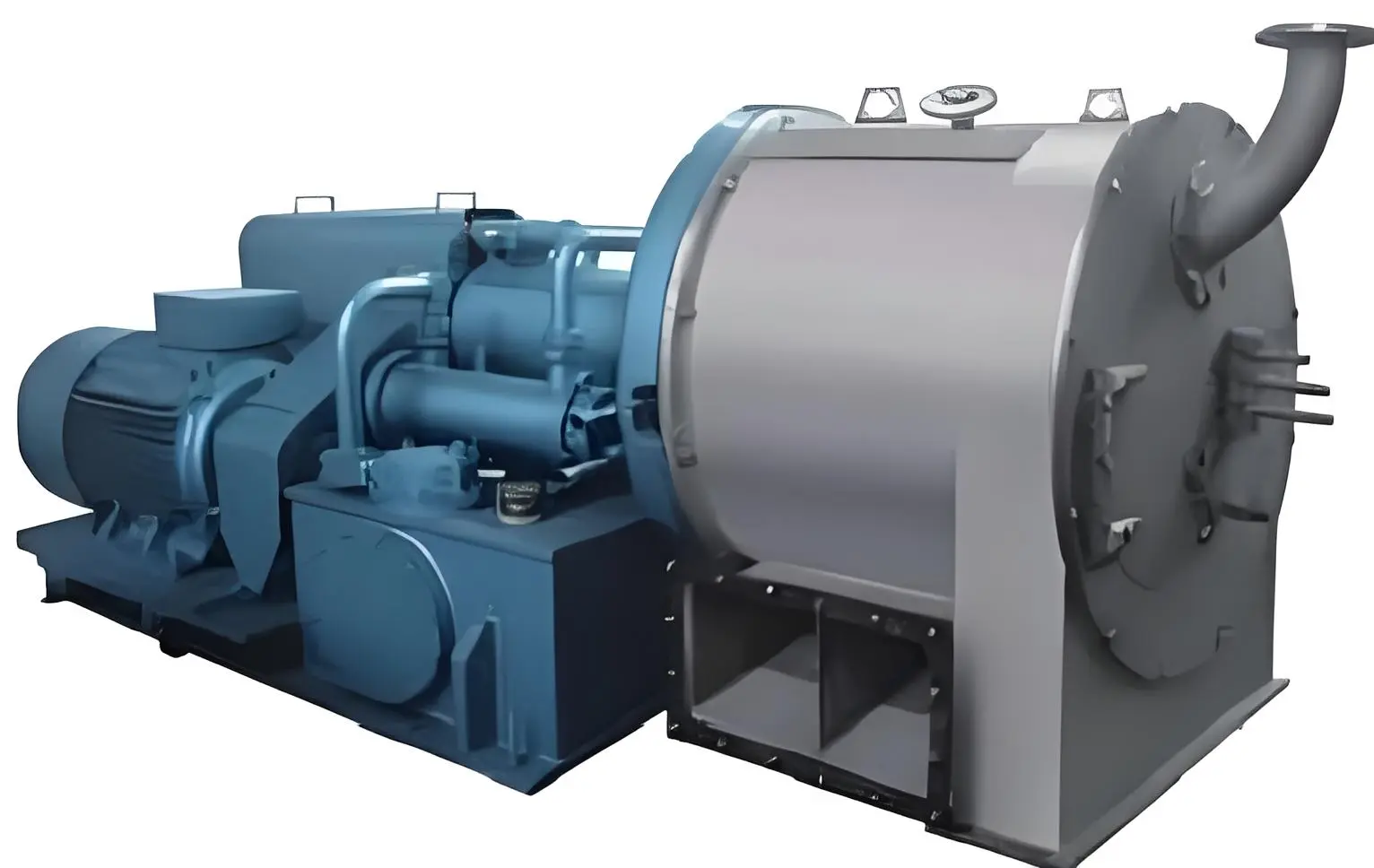

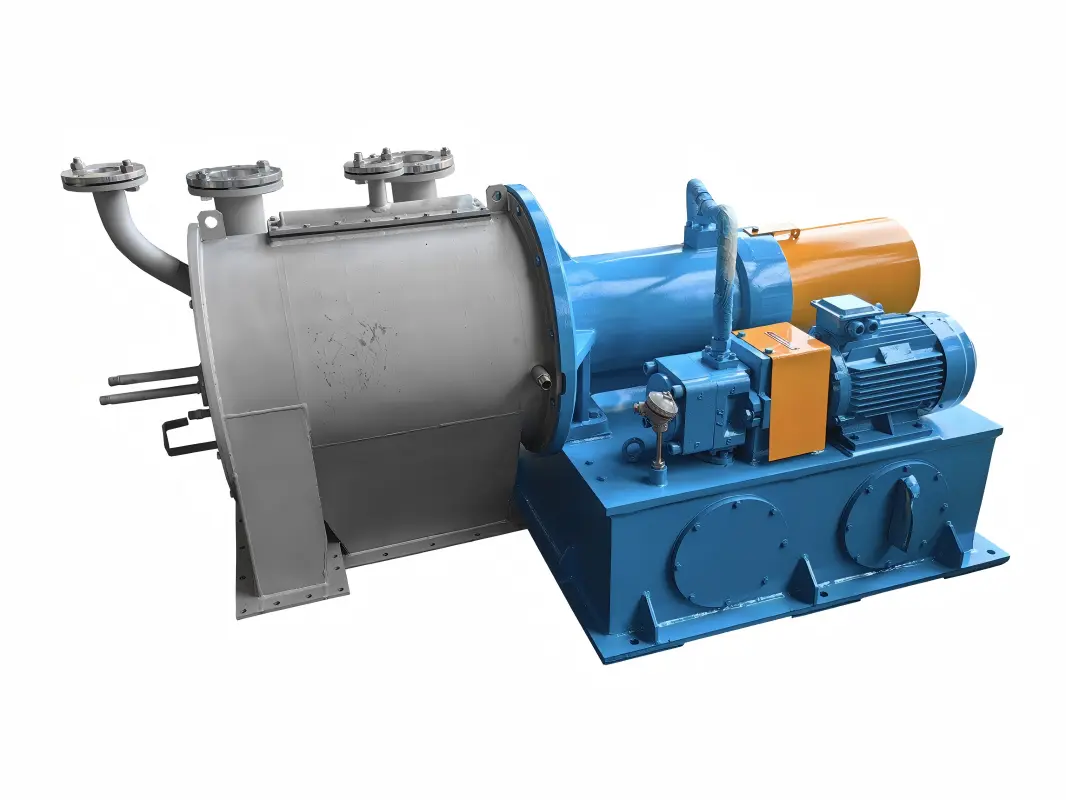

Centrifugal Discharge Machine
【Centrifugal Discharge Machine】
Main functions: Through the piston to push the material and the high-speed centrifugal force, continuous solid-liquid separation, washing and discharging of the material can be accomplished.
Equipment composition: It consists of a drum, a pushing mechanism, a transmission system, an inlet system, a casing and a control system.
Process features: Continuous automatic operation, large processing capacity, good separation effect, less material damage, and low energy consumption.
Structural and material characteristics: The contact parts with the material are made of stainless steel, which is wear-resistant, corrosion-resistant, has a stable structure and is easy to clean.
Technical features: Smooth operation, high automation level, suitable for continuous dehydration of granular crystalline materials.
Applicable materials: Salts, mirabilite, starch, citric acid, chemical crystals, feed additives and other crystalline materials.
Application industries: Widely used in industries such as chemical, food, medicine, starch, and fermentation for solid-liquid separation.
Control level: Adopt PLC automatic control.
Main functions: Through the piston to push the material and the high-speed centrifugal force, continuous solid-liquid separation, washing and discharging of the material can be accomplished.
Equipment composition: It consists of a drum, a pushing mechanism, a transmission system, an inlet system, a casing and a control system.
Process features: Continuous automatic operation, large processing capacity, good separation effect, less material damage, and low energy consumption.
Structural and material characteristics: The contact parts with the material are made of stainless steel, which is wear-resistant, corrosion-resistant, has a stable structure and is easy to clean.
Technical features: Smooth operation, high automation level, suitable for continuous dehydration of granular crystalline materials.
Applicable materials: Salts, mirabilite, starch, citric acid, chemical crystals, feed additives and other crystalline materials.
Application industries: Widely used in industries such as chemical, food, medicine, starch, and fermentation for solid-liquid separation.
Control level: Adopt PLC automatic control.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Centrifugal Discharge Machine Manufacturer
Shaanxi Zhenhuacui Biotechnology Co., Ltd. presents our advanced Centrifugal Discharge Machine outlined for nonstop solid-liquid partition operations. With over 10 a long time of fabricating ability, our double-stage cylinder pushing centrifuge conveys remarkable execution with handling capacities from 500-5000 kg/h and partition variables up to 2000G. This mechanized framework works at 1500-3600 rpm with 30-60 pushes per miniature, guaranteeing persistent crystalline fabric parchedness with negligible harm and most extreme proficiency for mechanical applications.
Product Overview
Our nonstop nourishing centrifugal separator combines progressed centrifugal innovation with computerized cylinder components. The framework utilizes high-speed centrifugal constrain and accuracy designing to accomplish predominant solid-liquid partition comes about. Built with SUS304/SUS316L stainless steel development, this gear guarantees erosion resistance and cleanliness benchmarks. The PLC programmed control framework gives variable recurrence speed direction and comprehensive security security counting overtemperature, overspeed, vibration, and over-burden monitoring.
Equipment Advantages
High Robotization Level: PLC completely programmed control kills manual mediation and guarantees reliable operation quality.
Large Preparing Capacity: Handle 500-5000 kg/h ceaselessly without interference, maximizing your generation efficiency.
Excellent Division Impact: Accomplish prevalent lack of hydration rates with negligible fabric harm through optimized centrifugal constrain application.
Energy Effective Operation: Moo control utilization plan diminishes operational costs whereas keeping up tall execution standards.
Hygienic Plan: Total stainless steel development meets nourishment and pharmaceutical industry sanitation requirements.
Easy Support: Straightforward structure plan encourages fast cleaning and schedule upkeep procedures.
Machine Specifications
| Specification | Parameters |
|---|---|
| Device Name | Double stage piston pushing centrifuge |
| Drum Diameter | Φ300–800 mm |
| Spindle Speed | 1500–3600 rpm |
| Separation Factor | 800–2000 G |
| Processing Power | 500–5000 kg/h |
| Frequency of Material Pushing | 30-60 times/minute |
| Mainframe Material | SUS304/SUS316L Stainless Steel |
| Drive Type | Motor direct drive |
| Control Method | PLC fully automatic control |
| Safety Protection | Overtemperature, overspeed, vibration, overload protection |
| Applicable Materials | Crystals, salts, chemical particles, starch |
| Certification | ISO9001, CE |
Application Fields
Chemical Industry: Culminate for handling chemical precious stones, salts, and different crystalline compounds requiring persistent separation.
Food Preparing: Perfect for starch preparing, sugar refining, and other food-grade crystalline fabric dehydration.
Pharmaceutical Fabricating: Appropriate for pharmaceutical crystalline materials requiring tall virtue and contamination-free processing.
Salt Generation: Great execution in mirabilite, table salt, and mechanical salt preparing operations.
Feed Industry: Compelling for bolster added substance preparing and crystalline supplement preparation.
Machine Components
The gear comprises of six primary frameworks working in concordance. The drum gathering gives the centrifugal division chamber. The pushing instrument guarantees ceaseless fabric Centrifugal Discharge Machine through exact cylinder developments. The transmission framework conveys steady control through engine coordinate drive innovation. The gulf framework oversees nonstop fabric bolstering. The defensive casing guarantees administrator security and prepare control. The control framework oversees all operational parameters through progressed PLC technology.
Workflow
Material enters the turning drum through the bolstering framework. High-speed revolution creates effective centrifugal drive, isolating fluid from strong particles. The cylinder instrument pushes isolated solids toward the release conclusion whereas fluid passes through the drum holes. Ceaseless operation guarantees continuous preparing. The robotized control framework screens all parameters and alters operation for ideal execution. Isolated materials exit through assigned outlets for collection.
Certificate
- ISO9001 Quality Management
- ISO 14001 (Environmental Management)
- ISO 45001 (Occupational Health & Safety)
- CE European Conformity Certification
- HACCP Food Safety
- FCC Certification
- UL & CSA Certification

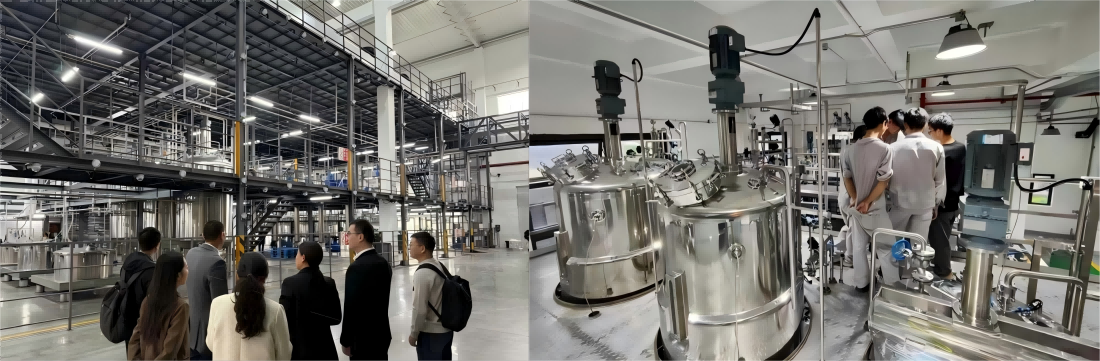

Installation & Support
Our technical team provides comprehensive installation guidance and training services. We offer 24/7 technical support through multiple communication channels. Standard equipment ships within 20 days, while customized configurations take anywhere from 30 to 90 days, depending on the specific specifications. Complete documentation including operation manuals, maintenance schedules, and troubleshooting guides accompanies each unit.
FAQ
Q: What is the processing capacity range of your centrifugal discharge machine?
A: Our double-stage piston pushing centrifuge offers flexible processing capacities from 500-5000 kg/h, suitable for both medium and large-scale industrial operations.
Q: Can the machine handle different types of crystalline materials?
A: Yes, our centrifugal separator is designed for various materials including chemical crystals, salts, starch, pharmaceutical compounds, and feed additives with minimal material damage.
Q: What safety features are included in the equipment?
A: The machine includes comprehensive safety protection systems monitoring overtemperature, overspeed, vibration, and overload conditions, all managed through our PLC automatic control system.
Q: How long does delivery take for standard and customized equipment?
A: Standard equipment ships within 20 days, customized solutions require approximately 30-90 working days.
Q: What material construction ensures hygiene standards?
A: All equipment is constructed with SUS304/SUS316L stainless steel, meeting food and pharmaceutical industry sanitation requirements with complete corrosion resistance.
Q: What technical support and training do you provide after purchase?
A: We offer comprehensive installation guidance, operator training, 24/7 technical support, complete documentation including operation manuals, and ongoing maintenance consultation services.
Inquiry Section
Ready to use the Centrifugal Discharge Machine to enhance your separation processes? Contact our engineering team at producttech@asianbios.com for detailed technical consultation and quotation.
