How Valine Production Technology Improves Amino Acid Yields

On every amino acid fermentation floor, one number outranks all the others: the yield curve. In valine manufacturing, that curve — grams of L-valine recovered for every gram of sugar fed — decides whether a plant prints margin or merely covers its utilities. What makes this amino acid worth boardroom attention is how much of its yield is engineered rather than bought. Modern valine production technology improves output at three distinct points: the genetically optimized strain that sets the ceiling, the high-density fermentation that defends it hour by hour, and the downstream train that converts broth into payable crystals. This article follows the yield curve through all three stages, then translates the numbers into a practical framework for choosing the right partner.

valine production technology

Why Every Extra Yield Point Pays Twice?

The Fourth Limiting Amino Acid Finally Gets Its Turn

When pigs and chicken are fed a corn–soy diet, valine usually comes in fourth or fifth place, after lysine, methionine, and threonine. It is an important branched-chain amino acid. In the business world, that situation is important because as formulators try to lower the amounts of crude protein, they run out of traditional vitamins and find valine as the next thing that limits animal performance. Feed-grade L-valine helps poultry, livestock, and aquatic animals grow by balancing their amino acid levels, making better use of protein, and boosting their defense systems. With each new low-protein diet plan, the market grows, and the industrial yield of the fermentation that makes it possible becomes a competitive weapon instead of a technical footnote.

Where the Yield Equation Is Actually Won?

Making valine is a classic example of an industrial biotechnology that requires a lot of money and technology. Its economics follow one main rule: conversion efficiency controls the cost stack. When it comes to a commodity-grade product, the margin goes up almost immediately every time the sugar-to-product conversion rate goes up. Plants can't price their way out of a weak process because valine is sold at feed-grade prices. Instead, they have to build their way out. This is the reason why high-yielding strains, tightly controlled large-scale fermentation, and disciplined separation engineering are seen as the three most important parts of a competitive plant. Any honest audit starts with these three areas instead of a sales brochure.

Three Levers, One Curve

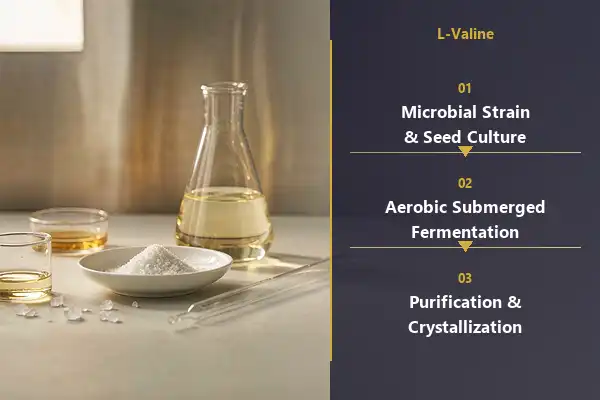

The rest of this article treats yield as the product of three levers applied in sequence. The strain defines the theoretical ceiling; the fermentation hall determines how much of that ceiling survives dozens of hours of living biology; and the downstream train decides how much of the broth's bounty leaves the gate as saleable crystal. Together, these elements form the foundation of modern valine production technology. The table below maps the three levers before the deep dives that follow, and doubles as an audit checklist you can carry into any supplier conversation.

Yield Lever	Where It Acts	What It Decides	What a Buyer Should Audit
Strain construction	Cell metabolism	The theoretical yield ceiling	Host lineage, pathway edits, titer records
High-density fermentation	Production tank	How much of the ceiling survives the run	Control system, feeding strategy, batch data
Downstream recovery	Separation train	How much product leaves as crystal	Recovery steps, purity records, batch consistency

Lever One: Strain Construction — The Genetic Foundation of Yield

Two Workhorse Hosts, One Industrial Pedigree

Commercial L-valine is produced with genetically modified Corynebacterium glutamicum or Escherichia coli strains, both backed by decades of amino acid manufacturing history. Corynebacterium brings a naturally pyruvate-rich metabolism and a long industrial record; engineered E. coli offers faster growth and the most flexible genetic toolkit in biotechnology. The two hosts complement more than they compete, and the choice shapes everything downstream — oxygen demand, by-product spectrum, even the refining load. The contrast below shows how the workhorses differ as they are actually deployed at production scale.

Attribute	Corynebacterium glutamicum	Engineered E. coli
Metabolic character	Naturally pyruvate-rich, ideal valine precursor	Fast-growing, highly pliable metabolism
Industrial heritage	Decades in amino acid plants	Decades across recombinant fermentation
Typical strengths	Robust at high density, predictable runs	Rapid strain iteration, dense engineering tools
Yield implication	Stable, repeatable long campaigns	High ceilings under tight process control

Rewiring the Branched-Chain Pathway

Valine is made from pyruvate in five steps by enzymes, and each commercial strain is a set of changes made on purpose along those steps. The feedback-resistant acetohydroxyacid synthase enzyme keeps carbon moving when normally it would stop; it cuts off flow to competing pyruvate sinks like lactate, alanine, and pantothenate; and it over-expresses the terminal transaminase enzyme so pyruvate leaves the cell as valine instead of as a neighbor metabolite. Some platforms even weaken the pyruvate dehydrogenase complex to store precursor, which is okay because the production of valine makes up for it. This is where the plant's maximum yield is written long before any seeds are put in a single tank.

Why the Strain Sets the Ceiling, Not the Average?

A better strain doesn't mean that the plant will produce more each year; it just means that it will have a higher possible limit, which the rest of the plant either uses up or throws away. The boring work that needs to be done between released titers and shipped drums is to replicate a genetic edge on a hundred-cubic-meter scale, across seasons, operators, and raw material lots. So, when buyers look at any valine production technology, they should ask less about headline titers and more about the difference between the best and worst commercial batches. This difference shows if the strain's potential has been truly industrialized or just shown in a pilot hall.

Lever Two: High-Density Fermentation That Defends the Curve

Renewable Sugar, Fed with Precision

The carbon that turns into valine comes into the plant as sugar that has been broken down from corn and sugarcane, which are both renewable sources of carbon. It's just as important how the sugar is fed as how much is given. If you give too much at once, the cells will turn the carbon into waste products that overflow; if you feed too little, the tank will sit idle below its capacity. As the plants get older, they are fed in batches that are based on what the type needs. This keeps the carbon balance between growth and production in big fermentation tanks with a high number of plants. Because raw materials are the most expensive thing that can be controlled, a plant's engineering culture is most clear in how it handles feeding.

The Control Variables That Keep Yield Climbing

Inside production fermenters, valine yield is defended through a handful of variables held within narrow bands: temperature, pH, and dissolved oxygen, with ammonia doing double duty as nitrogen source and pH regulator. High-density cultures demand aggressive aeration and agitation, and every excursion — an oxygen dip, a pH drift, an uncaught foam event, a contamination scare — taxes the batch. Modern facilities pair online monitoring with automated intervention so deviations are corrected in minutes rather than discovered at harvest. The difference between a world-class tank farm and an average one is rarely the equipment list; it is how tightly those variables are actually held, run after run.

Scale-Up: Where Laboratory Yields Live or Die

Scale-up is where valine projects most often stumble, because a recipe that performs in a laboratory fermenter must be rebuilt for tanks a hundred times larger. Mixing time lengthens, oxygen transfer weakens at the tank's far corners, and heat removal becomes a genuine design problem rather than a footnote. Experienced teams re-derive the process at each scale — seed-train design, feeding profile, aeration strategy — instead of assuming small-tank numbers will simply travel. This is precisely why process know-how alone accounts for only part of a successful plant, a theme the closing section takes up in full.

If you are mapping these levers against your own project — a feed mill evaluating supply, a supplement brand pricing a launch, or an investor scoping a plant — it helps to see the numbers behind the narrative. The Asianbios team keeps working files of fermentation benchmarks, strain documentation outlines, and refining flow diagrams that serious inquirers can review before committing. Send your questions to producttech@asianbios.com and you will receive a substantive reply within hours — benchmarks, not brochures.

Lever Three: Downstream Recovery — Turning Broth into Payable Crystal

Membrane Separation and Ion Exchange, in Sequence

When a run ends, the broth is a dense soup of cells, proteins, salts, and dissolved amino acids, and every downstream choice either preserves or erodes the yield the tank earned. Membrane separation first strips out biomass and macromolecules without solvents or heat damage, delivering a clarified liquor. Ion exchange then captures valine selectively and elutes it in concentrated, purified form. Running these two steps in sequence, with tight control of loading and regeneration, protects both recovery rate and product quality — and represents a critical stage of advanced valine production technology that largely settles the plant's true annual output.

Continuous Crystallization and the Making of a White Powder

The purified stream is concentrated and driven to supersaturation, where continuous crystallization grows L-valine into uniform crystals under controlled conditions. Continuity is the point: a steady crystallizer fed by a steady upstream produces crystals of consistent size, moisture, and flowability — attributes that matter enormously when powder must meter accurately in a premix plant. Drying and sieving finish the material as a free-flowing white powder, packed into 25 kg barrels and staged for express, air, or sea shipment to wherever the feed, food, or pharmaceutical supply chain requires it.

Holding 98.5% Purity, Batch After Batch

Every gram of valine that fails specification is a gram of yield lost, which is why purity discipline and yield discipline are the same discipline viewed from different doors. Mature processes deliver crystals at 98.5% purity or better, meeting international quality standards across feed, food, and pharmaceutical grades. Full-chain quality control — incoming raw material screening through finished-product release, backed by in-house research and testing laboratories and certified systems such as ISO 9001, HACCP, FSSC 22000, and CGMP — is what converts one good batch into a dependable annual record.

Downstream Step	Purpose	Contribution to Yield and Quality
Membrane separation	Removes cells and macromolecules	Gentle, solvent-free clarification protects recovery
Ion exchange	Selective capture and concentration	High recovery of valine from clarified liquor
Continuous crystallization	Grows uniform crystals	Consistent size, moisture, flowability at ≥98.5% purity
Drying and packing	Finishing into 25 kg barrels	Free-flowing white powder, shipment-ready

Choosing a Valine Production Technology Supplier Who Protects Your Yield

The 30/70 Formula: Process Plus Localization

Industry experience compresses the transfer of valine manufacturing into a memorable ratio: successful application equals 30% process and 70% localization. The standardized technical package — strain, medium design, control philosophy, refining flow — is only the beginning; the larger share of the work is adapting it to local raw materials, utilities, regulations, and teams. A capable valine production technology supplier therefore delivers commissioning, operator training, and continuous support alongside the documents, and can extend to a complete technology set for building a production line where legal norms and market realities differ from home.

Commercial Terms That Fit Your Stage

Wherever a buyer stands, entry points should match the stage of ambition. Validation begins at a 1 kg minimum order with samples for independent testing; standard specifications ship from inventory above one ton within roughly ten days of payment; customized products complete in about twenty working days; and urgent shortfalls ride a green channel of 7–10 days. OEM/ODM programs cover powders, tablets, capsules, and gummies under a buyer's own brand, moving through global delivery partnerships with DHL, FedEx, and SF Express by express, air, or sea. Flexible order adjustment and low minimums mean small trials never wait behind large contractual shipments.

Match the Grade to the Market You Serve

Valine's applications span three regulated worlds, and the specification conversation should begin with yours. In feed, L-valine balances amino acid ratios across poultry, swine, and aquaculture diets, lifting protein utilization, growth performance, and animal immunity. In food, it fortifies beverages, infant formula, and health products with an essential nutrient. In pharmaceuticals, it enters compound amino acid injections, oral nutrition solutions, and physical-recovery formulations. Beyond the product itself, judge the laboratory behind it: professional technicians who can run experimental verification, propose formulation solutions, and provide technical guidance add a second layer of value that a transactional vendor simply cannot match.

Valine Production

Conclusion

Valine yield is not a single breakthrough; it is the compound result of three engineered levers — a strain that raises the ceiling, a fermentation that defends it, and a downstream train that converts broth into saleable crystal with minimal loss. Together, these elements define the effectiveness of modern valine production technology. The plants that dominate feed-grade markets industrialize all three together, supported by localization discipline rather than paper know-how. For buyers, the practical route is verification: request samples, audit batch data, and confirm that commercial terms — low minimums, fast dispatch, real technical support — match the technology story. Yield, in the end, is a promise kept at every stage.

FAQ

1. Which microorganisms and raw materials does modern valine production technology rely on?

Commercial L-valine is produced by microbial fermentation using genetically modified Corynebacterium glutamicum or Escherichia coli strains, grown at high density in large fermenters on sugars derived from renewable resources such as corn and sugarcane. Ammonia serves as the nitrogen source and pH regulator. Engineered strains combined with precise fermentation control are what allow industrial plants to reach high titers and recover crystals at 98.5% purity or better for feed, food, and pharmaceutical grades.

2. What commercial terms should I expect when sourcing L-valine?

Expect a low entry point — a 1 kg minimum order with samples for independent validation — followed by scalable supply. Standard specifications are typically held in inventory above one ton and ship within about ten days of payment; customized orders complete in roughly twenty working days; urgent small batches can use an expedited channel of 7–10 days. Packing is 25 kg barrels, with express, air, and sea delivery through DHL, FedEx, and SF Express, plus OEM/ODM formats for powders, tablets, capsules, and gummies.

3. Can the technology be transferred so we can build our own production line?

Yes, under the 30% process plus 70% localization model. A standardized technical package covers strain documentation, medium design, fermentation control, and the membrane–ion-exchange–crystallization refining flow, while the larger share of the work adapts everything to your local raw materials, utilities, regulations, and team. Serious partners support commissioning, operator training, laboratory verification, and continuous technical guidance after start-up, so the plant reaches its designed yields rather than merely following a blueprint.

Get a Valine Sample and Yield Benchmark Today

Whether you buy finished feed-grade powder, plan a private-label line, or intend to build a fermentation plant of your own, Asianbios can support your valine project with advanced valine production technology and help move your plans forward this week. Tell us your species, target market, and expected volume, and you will receive specifications, certification copies, and a working quotation — typically within hours. Start with a 1 kg sample and let your own trials settle every claim before volume orders follow. Email producttech@asianbios.com with your requirements, and a valine specialist will reply the same business day with a clear, no-pressure plan.

References

1. Blombach, B., Schreiner, M. E., Holátko, J., Bartek, T., Oldiges, M., & Eikmanns, B. J. (2007). L-Valine production with pyruvate dehydrogenase complex-deficient Corynebacterium glutamicum. Applied and Environmental Microbiology, 73(7), 2079–2084.

2. Elisáková, V., Pátek, M., Holátko, J., Nešvera, J., Leyval, D., Goergen, J.-L., & Delaunay, S. (2005). Feedback-resistant acetohydroxyacid synthase increases valine production in Corynebacterium glutamicum. Applied and Environmental Microbiology, 71(1), 207–213.

3. Holátko, J., Elišáková, V., Prouza, M., Sobotka, M., Nešvera, J., & Pátek, M. (2009). Metabolic engineering of the L-valine biosynthesis pathway in Corynebacterium glutamicum using promoter activity modulation. Journal of Biotechnology, 139(3), 203–210.

4. Kelle, R., Hermann, T., & Bathe, B. (2005). L-Valine production. In L. Eggeling & M. Bott (Eds.), Handbook of Corynebacterium glutamicum (pp. 465–488). Boca Raton: CRC Press.

5. Oldiges, M., Eikmanns, B. J., & Blombach, B. (2014). Application of metabolic engineering for the bioproduction of L-valine in Corynebacterium glutamicum. Applied Microbiology and Biotechnology, 98(13), 5853–5863.

6. Sahm, H., Eggeling, L., & de Graaf, A. A. (2000). Pathway analysis and metabolic engineering in Corynebacterium glutamicum. Biological Chemistry, 381(9–10), 899–910.
