How to Follow a Multiple Effect Evaporator Operating Procedure

A method for operating a multiple effect evaporator is provided to guide an operator through start up, continuous concentration, shut down and cleaning while keeping the process within its allowable limitations. The multiple effect evaporator operating procedure is simple. The steam generated in one effect goes to the next, giving away its heat. The use of various effects boosts the incoming steam efficiency. The key difficulty is how to coordinate the feed, the steam, the hoover, the cooling water and the discharge of the product without losing control of the concentration. This manual outlines the operation sequence for a multi-effect evaporator machine and points out the most significant checks during processing plant extracts, fermentation liquids, syrups and other industrial solutions.

Choose the Right Operating Setup Before Startup

Match the Machine Configuration to the Liquid

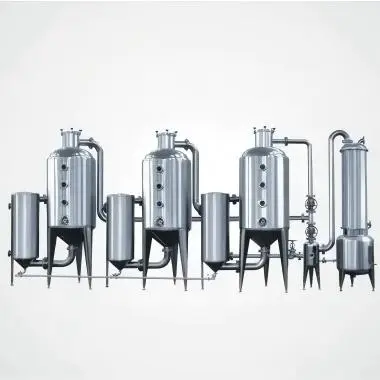

The amount of effects on the machine should not determine the operating process, but the concentrate. A glucose solution or saline waste water can demand a different temperature profile and residence time than a heat sensitive plant extract. Other criteria like as viscosity, foaming propensity, solids content and cleaning requirements also determine the choice of falling film, rising film or forced circulation equipment. Asianbios offers 2 to 5 effect configurations with evaporation-water capacity ranging from 1000 to 50,000 kg/h. These are figures for the equipment options available, and the actual feed needs to be confirmed against the suitable setup and achievable throughput.

Confirm the Design Basis and Product Target

Before an operator commences any multiple effect evaporator operating method, the production team should establish the incoming feed rate and concentration, the required outlet concentration, the predicted evaporation load and the permitted product temperature. Design documents for the machine should include allowable pressures, utility requirements, valve locations and control setpoints. This information is useful for buying teams, as it provides more meaningful comparisons of equipment than a headline energy saving statistic alone. Several effects lead to a reduction of the steam use by the reuse of the heat of the vapour . But the obtained saving relies on the number of effects, the feed qualities, the operating parameters and the single-effect process used as a reference.

The following design information provides a common starting point for operators and suppliers:

Item to confirm	Why it matters to operation
Feed composition and solids content	Influences flow, fouling, and concentration control
Target outlet concentration	Defines the discharge endpoint
Effect arrangement and flow path	Determines how liquid and vapor move through the system
Utility availability	Confirms steam, cooling water, power, and vacuum support

Prepare Utilities and Start the System in Sequence

Complete the Pre-Start Walkdown

Begin with the site approved checklist and the equipment drawings. Verify that the heating chambers, separators, condenser, vacuum system, pumps, pipework and PLC controls are all operational. Confirm that drains and product-transfer routes are routed to the correct locations, instruments are available and selected valves match the approved startup lineup. The team should also ensure that all cleaning and product changeover checks are complete. On a multi-effect evaporator machine​, a missed utility connection or wrong valve position might affect multiple effects, thus a gradual walkdown is more beneficial than a hasty startup.

Establish Cooling, Feed, Vacuum, and Steam Safely

Startup order shall be in accordance with the manufacturer’s commissioning instructions and the process safety standards of the site. As a rule, the operators check the condenser cooling and other necessary services, get the required liquid inventory or feed flow in place, and get the vacuum system up to its permitted working condition before the distillation begins. Steam is then slowly added and temperature, pressure, level and circulation are monitored. Don’t heat a vessel or run a pump outside its allowed liquid-level limitations and don’t circumvent an interlock to speed up startup. The instrument will read vacuum values in the units it uses. Gauge and absolute pressure are not interchangeable.

If you are developing an operating procedure for a new installation, a process specific review helps avoid confusion prior to commissioning beginning. Send your feed parameters, production objective and available utilities to plantex@asianbios.com so that we may discuss which equipment configuration and operating manuals should be examined.

Keep Each Effect Balanced During Continuous Production

Follow the Vapor and Liquid Paths

In the first effect the feed is heated and water evaporated from it. The vapour produced can then be employed as the heating medium for the next effect. This process of heat transmission proceeds through the installed effects and the ultimate vapour is dealt with by the condenser and vacuum system. The liquid is directed and pumped according to the design and differs from one machine to the other. The actual effect sequence and flow path, rather than the assumption that all the liquid always goes from the first effect to the last, will be defined in a sound operating procedure for a multiple effect evaporator.

Monitor the Variables That Protect Product Quality

“When production is stable, operators should be looking for patterns, not single numbers. The feed rate, steam conditions, impact temperatures and pressures, vessel levels, vacuum performance, condensate removal and output concentration all play a part. A change in concentration could mean a change in feed, a change in heat transfer or a flow control problem. PLC automation can log and change chosen variables, but it cannot substitute sampling and review by the operator. In the case of alarm, the action should be that defined in the site procedure, particularly in the case of low level, overheating, overpressure or pump overload protection.

The readings are organised according to the judgement they support, making a shift log easier to use:

Operating check	What to compare
Feed and discharge flows	Stability of throughput and material balance
Effect temperatures and pressures	Expected heat-transfer pattern
Levels and pump status	Continuous, controlled liquid movement
Outlet concentration	Agreed product specification
Condensate and vacuum trends	Consistent vapor removal and condensation

Check Energy Performance Without Chasing a Single Number

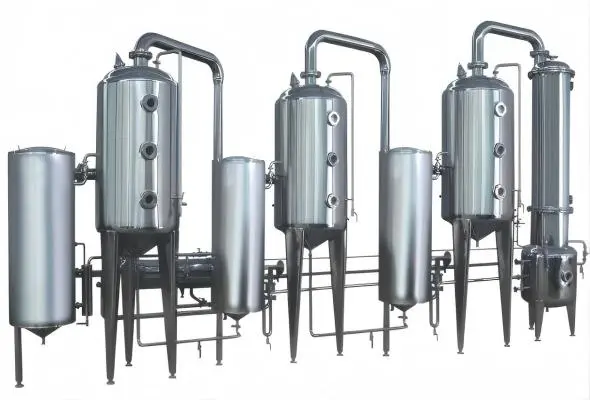

The fundamental advantage of a multi-effect evaporator machine​ is its efficiency. A multi-effect evaporator machine​ uses secondary vapour as heat instead of fresh steam at each stage. Compare steam usage to the amount of water evaporated and note the input concentration and operational parameters. That’s how you measure that benefit. If throughput falls, or the outlet product misses its aim, then an apparent improvement is of less benefit. Asianbios equipment is available with stainless-steel structure, PLC control and configurable effect configurations. Actual energy performance of a project should be proven at commissioning and monitored as feed conditions change.

Shut Down, Clean, and Prepare for the Next Run

Reduce Load and Stop According to the Approved Sequence

A planned shutdown should enable product recovery and equipment cool down and depressurisation as designed. Typically, operators will use the sequence specified for their machine to reduce or shut down feed and steam, deal with excess liquid through allowed transfer routes, and maintain supporting systems during the shutdown procedure. 7. Documented hoover release. 2. Halting heating does not justify the opening of a vessel simply like that. Record final product concentration, observations during operation and cautions to provide the next shift with a complete picture of the run.

Inspect and Clean the Product-Contact Route

When isolated and confirmed safe to open or clean, check parts most likely to store material including heating surfaces, separators, transfer lines, pumps and discharge terminals. The cleaning approach must be compatible with the liquid treated and the materials of the equipment. SUS304 or SUS316L stainless steel as specified Document cleaning completion and any deposits indicative of change in heat transfer performance. Repeated fouling observations are useful operating data, and may lead to a revision of feed pretreatment, concentration targets, cleaning frequency or the specified evaporator architecture.

Conclusion

A good multiple effect evaporator operating procedure begins before steam enters the first effect. Operators need a validated design basis, a checked utility and valve line-up and a start-up method that respects the protections built into the machine. They should be able to balance the vapour and liquid pathways and the outlet concentration and energy utilisation with the process objectives during production. The cycle is complete with a clear record of shut down and handover of shift.” Use this advise to guide the discussion and then follow the exact operating limits and actions in the manuals of the installed machine, approved site procedures and qualified persons.

FAQ

1.What liquids can a multi-effect evaporator machine​ concentrate?

Applications include solutions of plant extracts, fermentation liquids, glucose solutions, syrups and some saline wastewaters. The name of the liquid is not the only factor that determines suitability. Equipment selection is influenced by viscosity, particles content, foaming, fouling behaviour, heat sensitivity, and cleaning requirements. Representatives are defined as feed data and goal concentration before the number of effects or a specific circulation design are decided.

2.Does adding more effects always produce the best result?

Other effects can increase further the reuse of heat but also modify the size of the equipment, the investment, the control needs and the available temperature differential along the system. The optimal number of effects relies on the cost of utilities, evaporation capacity, feed qualities and desired operational flexibility. A supplier should look at the whole process, not only recommend the maximum number of effects as the default.

3.Can operators use one procedure for every product?

Shared machines may have a similar safety and equipment foundation, but product specific parameters should be recorded individually. various feeds may need various flow rates, concentration targets, cleaning procedures, and sensitivities to foaming or fouling. Approved operating instructions should explicitly explain such variations so that a product transition is not dependent on memory or informal adjustments.

Ready to Build a Safer, More Efficient Evaporation Line?

Whether you are choosing a new evaporator or retrofitting an existing line, begin with the information that defines the job: feed composition, inlet and target concentrations, needed throughput, available utilities and cleaning requirements. Asianbios can address your process requirements for 2 to 5 effect combinations, equipment integration, commissioning needs, and operator training. Please email your project overview to plantex@asianbios.com for technical details required for an initial review. A well-matched equipment and a clear, site-specific multiple effect evaporator operating procedure provide your team a stronger platform to consistently concentrate and efficiently produce daily.

References

1. McCabe, W. L., Smith, J. C., & Harriott, P. Unit Operations of Chemical Engineering. 7th ed. McGraw-Hill, 2005.

2. Green, D. W., & Southard, M. Z., eds. Perry’s Chemical Engineers’ Handbook. 9th ed. McGraw-Hill Education, 2019.

3. Geankoplis, C. J. Transport Processes and Separation Process Principles. 4th ed. Prentice Hall, 2003.

4. Kern, D. Q. Process Heat Transfer. McGraw-Hill, 1950.

5. Singh, R. P., & Heldman, D. R. Introduction to Food Engineering. 5th ed. Academic Press, 2014.

6. Fellows, P. J. Food Processing Technology: Principles and Practice. 4th ed. Woodhead Publishing, 2017.
