What Is a Hanging Centrifuge and How Does It Improve Solid Liquid Separation?

Hanging centrifuges are a kind of separation equipment. They employ an upper-mounted motor system to create centrifugal force. This allows them to separate solids and liquids quickly, using high-speed spinning. The design is top driven rather than bottom driven, with the drum and rotating assembly suspended from above for a more stable centre of gravity and smoother operation, especially at large separation factors. Here's how a hanging centrifuge works, what makes its engineering unique among separation technologies, and why industries from food processing to pharmaceutical manufacturing rely on it for dewatering materials such as starch, salt, chemical crystals, and herbal extracts efficiently and reliably.

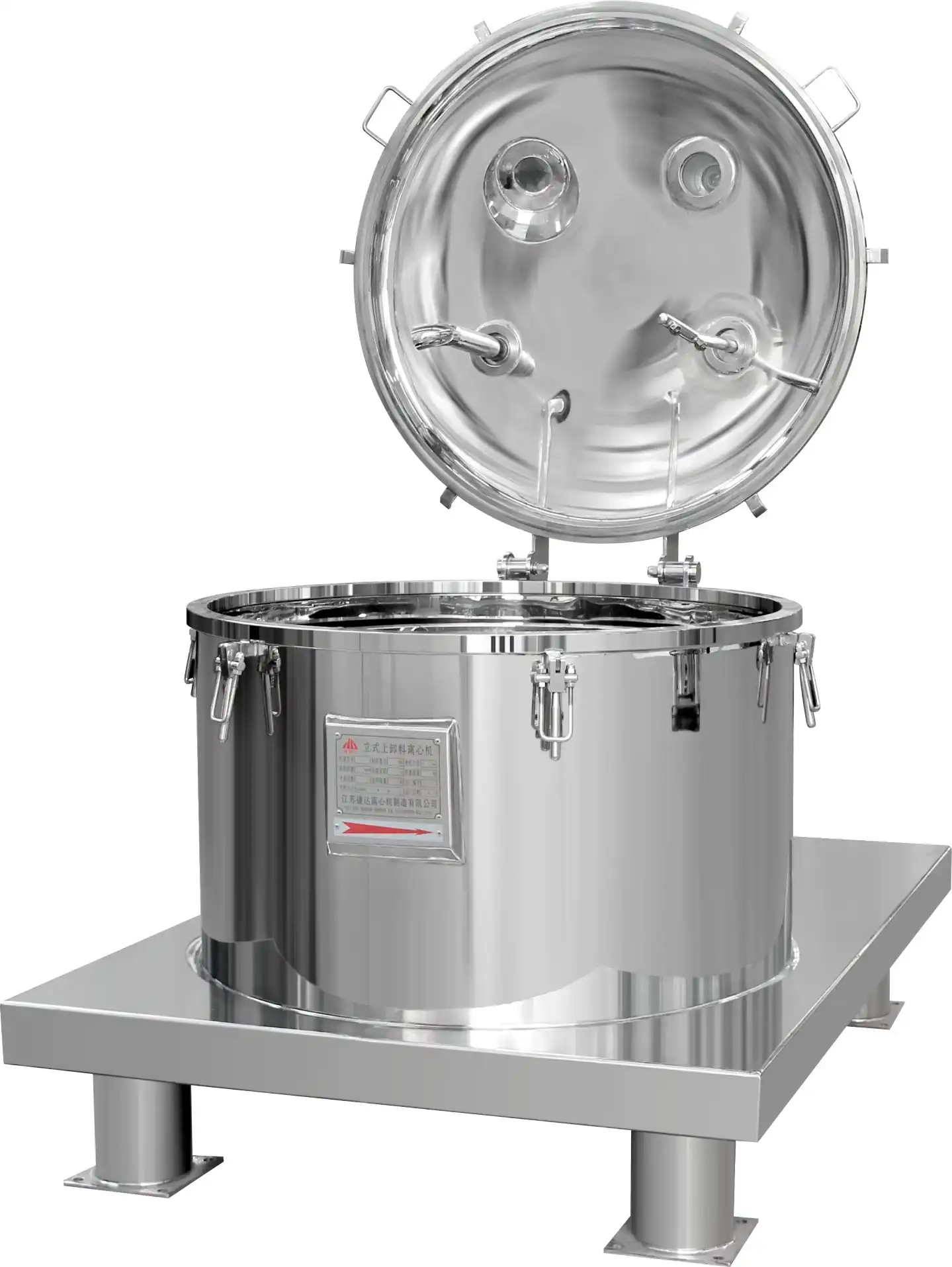

Hanging centrifuge

Defining the Hanging Centrifuge and Its Core Mechanism

To understand why this equipment is so reliable it is useful to first grasp the core concept that underlies its capacity to separate.

The Upper-Mounted Drive Concept Explained

The hanging centrifuge is characterised by the engine on the top. The drum is not supported from below, but rather suspended below the drive. This configuration allows the spinning unit to hang freely, reducing the stress on the framework and resulting in a smoother rotation at speeds approaching 3000 rpm. The system is inherently load balanced, eliminating the wobbling and vibration which are typical of bottom driven or horizontal centrifuge systems at high speeds.

How Centrifugal Force Drives Separation

After the drum achieves operational speed, the heavier solid particles are forced by centrifugal force to the outside of the drum wall, while the lighter liquid travels to the centre and drains via specified outlets. A hanging centrifuge may attain separation factors of 500 to 1500 G, thus particles are subjected to forces hundreds of times greater than gravity alone. It’s a powerful force to quickly remove water from material that normally would have to dry using gravity settling or filtering for hours to accomplish a similar moisture decrease.

Basic Equipment Composition and Layout

Each suspended centrifuge is equipped with a number of integrated components working in unison, such as the motor at the top that provides the driving force, the stainless-steel drum in which the separation takes place, the protective housing to reduce noise and contain splashing, the transmission that smoothly transfers the rotational energy and the braking system for controlled stopping. These components are integrated into a PLC automated control system. It controls feed rates, spin cycles and discharge time without needing continual human attention.

The Engineering Behind Superior Separation Performance

With the mechanical benefits it’s easy to see why this centrifuge design always out performs simpler designs in harsh industrial environments.

Center of Gravity Stabilization Benefits

The motor of the hanging centrifuge is located above the drum, so the centre of gravity is stabilised automatically during rotation. This is especially significant when working with unbalanced or heterogeneous loads. This stability leads to reduced vibration levels and quieter operation as opposed to devices where uneven loading may produce harmful oscillation. Operators benefit from extended equipment life and less maintenance associated with bearing wear or structural strain.

Variable Frequency Drive and Speed Control

Modern hanging centrifuges use variable frequency motors, so they may start gently and speed can be controlled accurately for different materials. Rather of running at one constant speed, operators may vary the spindle rotation between 800 and 3000 rpm, depending on whether they are dealing with delicate herbal extracts or harsh chemical crystals. This flexibility enables for the greatest feasible efficient separation without imposing excessive mechanical stress or energy cost on the system.

Automated Discharge and Continuous Operation

The material needs to be removed effectively to be able to maintain a high flow. Usually a hanging centrifuge is fitted with an automatic scraper unloading system. This unloading system unloads the separated particles off the wall of the drum without stopping the machine. This enables manufacturers to operate intermittently and in batch processing and continuous mode. This flexibility helps them to align equipment cycles with upstream and downstream production line requirements.

Design Element	Function	Operational Benefit
Upper-Mounted Motor	Suspends drum, stabilizes rotation	Reduced vibration, smoother operation
Variable Frequency Drive	Adjusts spindle speed 800–3000 rpm	Matches speed to material properties
Automatic Scraper System	Removes solids without stopping cycle	Continuous or intermittent flexibility
PLC Control System	Manages feed, speed, and discharge	Minimal manual intervention needed

Key Benefits That Set Hanging Centrifuges Apart

Beyond the basic functionality, there are a variety of practical benefits that have led to this equipment being a favoured option in a wide range of sectors.

Exceptional Dehydration Efficiency

The hanging centrifuge may create a solid output that is more drier than other lower force separation techniques . In fact , the hanging centrifuge can achieve up to 1500 G separation factor . This is a big issue when the moisture level of a product influences its shelf life, packing weight, or downstream processing costs. For example, the time needed for drying and the energy costs are lowered for starch manufacturers when centrifugal dewatering eliminates more moisture prior to heat drying.

Hygienic Construction for Sensitive Applications

The hanging centrifuge is composed of SUS304 or SUS316L stainless steel, and complies with the hygiene regulations of the food, pharmaceutical and biological fermentation sectors. The surfaces are corrosion resistant to acidic and salty fluids, and they are easy to clean between production cycles. Moreover, this level of construction might guaranty that facilities meet food safety standards like HACCP, FSSC22000, and others which control equipment used in consumable goods.

Comprehensive Safety Protection Systems

Safety has to be an afterthought at such high speeds and forces. A well-designed hanging centrifuge includes multiple layers of safety including overcurrent, overload, overtemperature and vibration monitoring devices that shut off operation promptly when parameters exceed safe limits. These safeguards protect the life of the equipment and the safety of the operator and thereby reduce the chances of accidents during high speed rotation cycles.

Choosing equipment with the right combination of speed range, drum capacity, and safety features can feel complex given the variety of configurations available; if you would like help matching specifications to your specific material and throughput needs, our team is reachable at producttech@asianbios.com for personalized technical guidance.

Industries and Materials That Benefit Most

The different industries use this separation technique for different purposes, showing how versatile current centrifuge design has become.

Food Processing and Ingredient Manufacturing

A hanging centrifuge is used by producers of starch and salt and monosodium glutamate plants to efficiently separate solid and liquid phases during the purification of ingredients. The equipment is capable of handling granular, crystalline materials and meeting food-grade hygiene requirements, making it ideal for procedures where yield and cleanliness are critical to the quality of the finished product and the safety of the customer.

Pharmaceutical and Herbal Extract Applications

Pharmaceutical businesses and herbal extract processors utilise hanging centrifuges in purification phases to remove active chemicals from processing liquids. The mild and effective separation process minimises the destruction of sensitive bioactive components while yet accomplishing the moisture reduction essential for future drying or formulation procedures. Such combination of efficiency and material preservation is especially helpful when dealing with traditional medicine extracts where the integrity of compounds is of great importance.

Chemical and Fermentation Industry Uses

This equipment is used by chemical plants for separation and purification of crystals and by fermentation plants for recovery of biomass or for separation of fermentation broths from solid byproducts. The versatility of a hanging centrifuge, capable of handling anything from small chemical crystals to fibrous fermentation leftovers, is a pointer to why this type of equipment is so widely used across so many different industrial processes.

Industry Sector	Typical Material Processed	Key Advantage Delivered
Food Processing	Starch, salt, MSG crystals	Hygienic, efficient dewatering
Pharmaceutical	Herbal extracts, active ingredients	Gentle separation, compound protection
Chemical Manufacturing	Crystals, chemical compounds	High-purity crystal separation
Biological Fermentation	Broths, biomass residues	Reliable solid-liquid recovery

Selecting the Right Configuration for Your Process

Matching equipment capabilities to your real production needs across different specifications will provide the best long term performance.

Matching Drum Size to Production Volume

The batch capacity is defined by the drum diameter and the effective volume, varying from Φ450 to 1600 mm, with effective volumes from 100 to 1100 litres. Compact designs may be suitable for smaller operations or trials, but bigger manufacturing plants may need drums of greater capacity to meet throughput requirements without excessive cycle repetition. Evaluating present and future production volumes assists in determining the right size before making a decision on a certain model.

Considering Automation Level for Your Operation

Fully automated PLC-controlled hanging centrifuge systems are a big advantage in facilities with continuous production, demanding little human control. Smaller companies or those working with highly variable material batches may want to balance automation with flexibility in human override capabilities, so operators may swiftly modify settings when material qualities change from batch to batch or supplier to supplier.

Planning for Maintenance and Long-Term Support

The life of the equipment is mostly determined by the availability of the maintenance assistance and replacement parts. Before you sign on the dotted line, be sure you have installation instructions, operator training, continuous technical support and appropriate response times for issues. A hanging centrifuge is a long-term operational commitment, and planning for maintenance requirements up front avoids unexpected downtime when the equipment goes into regular production usage.

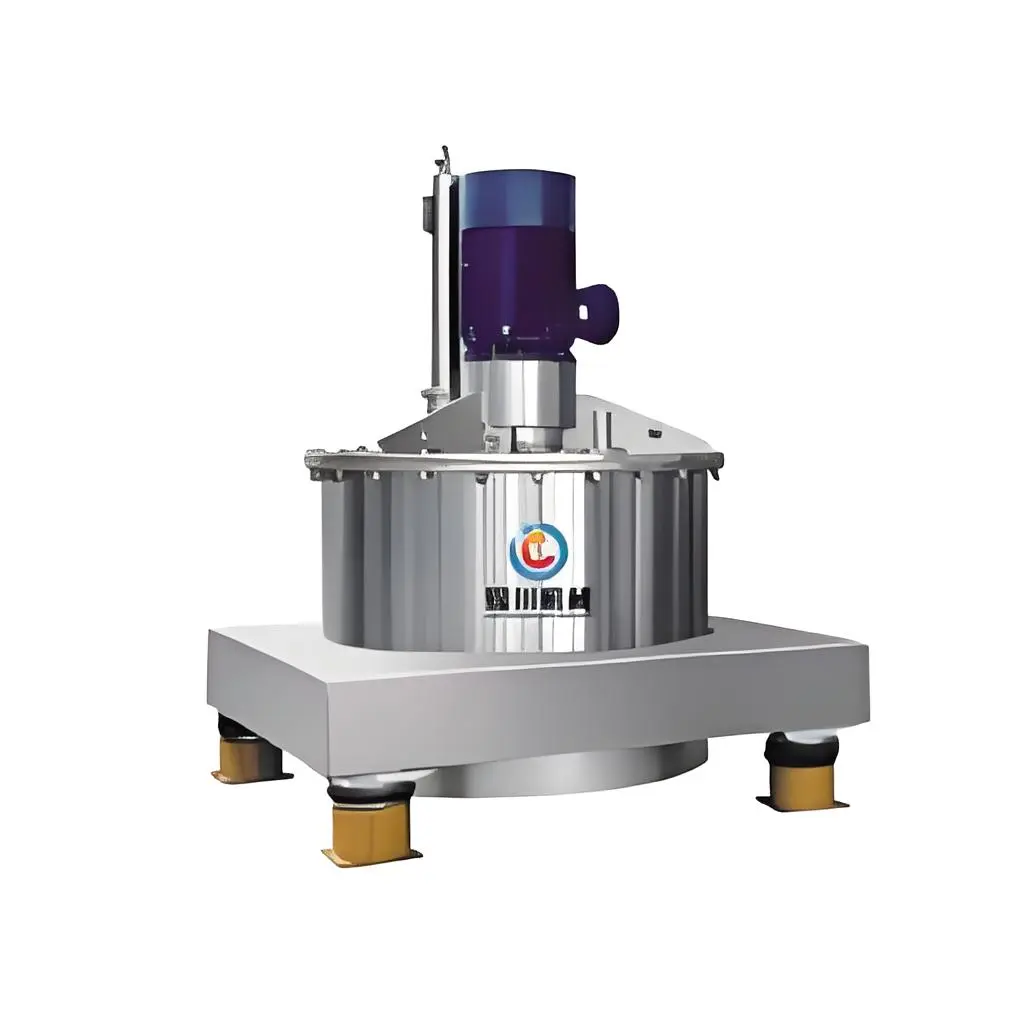

Hanging centrifuge

Conclusion

A hanging centrifuge delivers reliable, high-efficiency solid-liquid separation through its distinctive upper-mounted drive design, stable rotation, and robust safety systems. From food ingredient processing to pharmaceutical extraction and chemical crystallization, this equipment consistently improves dewatering outcomes while maintaining hygienic, corrosion-resistant construction. Understanding its mechanics and matching specifications to your material and volume needs ensures you select equipment capable of supporting efficient, compliant production for years ahead.

FAQ

Q: What makes a hanging centrifuge different from a bottom-driven centrifuge?

A: The upper-mounted drive suspends the drum from above, improving center-of-gravity stability and reducing vibration compared to bottom-driven designs, which can experience more instability at high rotational speeds.

Q: Which materials work best with this type of centrifuge?

A: It handles a wide range of solid-liquid mixtures including starch, salt, monosodium glutamate, chemical crystals, herbal extracts, and fermentation materials, making it versatile across food, chemical, and pharmaceutical applications.

Q: How does the separation factor affect final product moisture content?

A: Higher separation factors, up to 1500 G in this equipment, generate stronger centrifugal force that removes more liquid from solids, resulting in drier output and often reducing downstream drying time and energy costs.
