Centrifugal Discharge Machine Applications in Food Manufacturing

Food manufacturers processing crystalline ingredients face constant pressure to maintain purity, hygiene, and throughput while meeting strict regulatory standards. A centrifugal discharge machine addresses these challenges directly by combining piston-driven material advancement with high-speed centrifugal separation, enabling continuous dehydration and washing of granular substances like sugar, starch, citric acid, and salt without interrupting production flow. This article explores how this equipment supports various food manufacturing applications, from sweetener crystallization to starch refinement, explaining why processors handling 500 to 5000 kg/h of crystalline material increasingly depend on this technology to meet both output targets and food-safety compliance requirements across global markets.

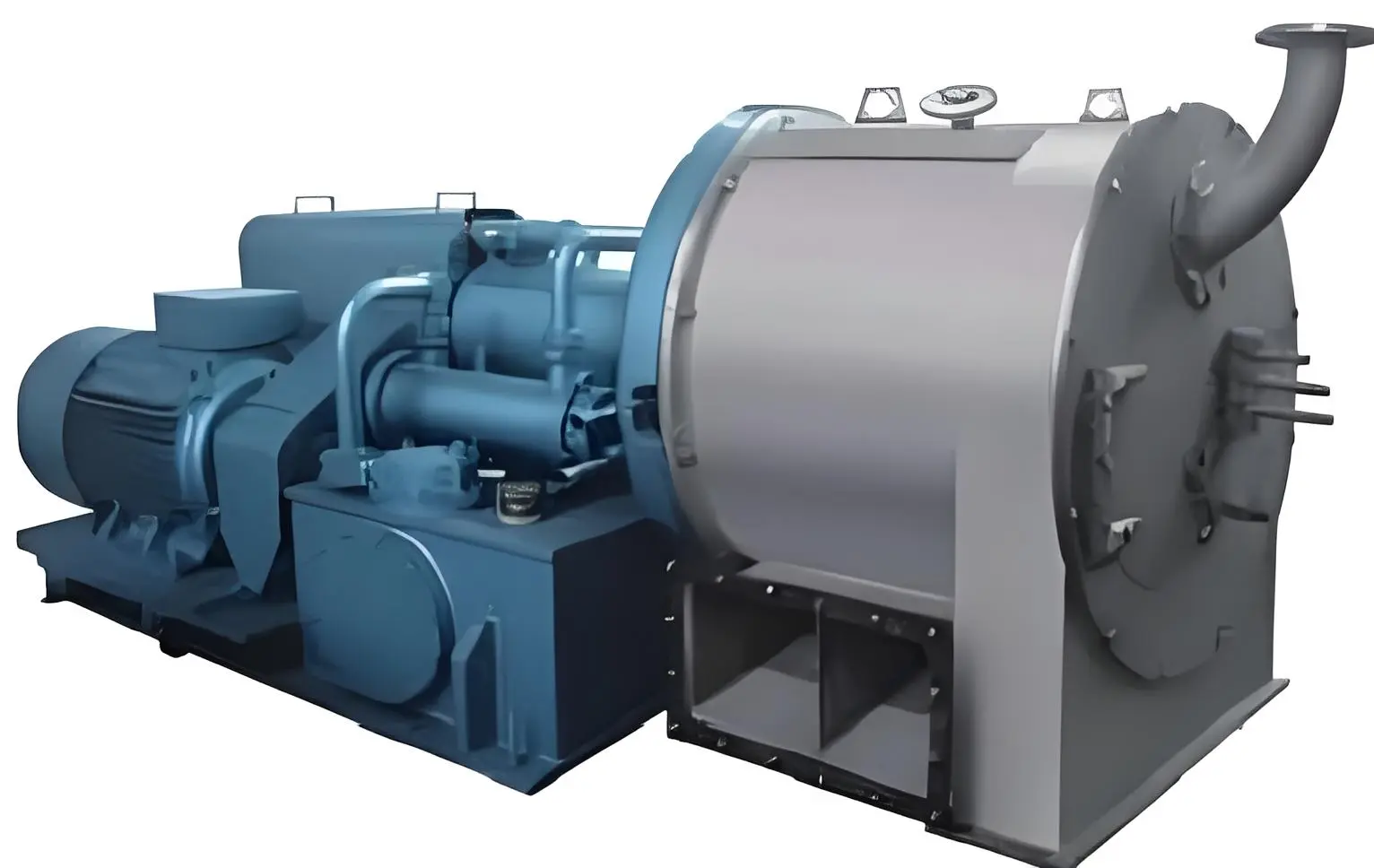

centrifugal discharge machine

Meeting Food Safety Demands Through Continuous Processing

Before we get into particular applications, it is crucial understanding why continuous centrifugal technology has become vital for current food quality crystalline processing.

Hygienic Construction Standards for Food Contact

All surfaces contacting food-grade material of a centrifugal discharge machine are constructed from SUS304 or SUS316L stainless steel. This meets the hygienic criteria that the regulatory bodies need for consumable items. This architecture does not corrode by acidic chemicals like citric acid, and is simple to clean between manufacturing batches. The smooth, gap-free design reduces the number of places where germs may hide, helping food makers meet HACCP procedures on the manufacturing line.

Continuous Operation Reduces Contamination Risk

The batch-type separation equipment has to be opened and closed repeatedly for loading and unloading, thereby providing several chances for airborne contaminants to enter the product stream. This weakness is avoided in a centrifugal discharge machine which is closed and continuous from the input of the material to its ultimate discharge. This closed-system approach is especially advantageous for food businesses seeking FSSC22000 or equivalent certifications with contamination touchpoints as a key audit factor.

Consistency Requirements in Food-Grade Output

For food items, consistency from batch to batch in moisture content and particle attributes is critical, since variations impact everything from the precision of package weights to the stability of shelf life. The PLC automatic control system built into modern centrifugal discharge machines keeps the operational parameters fixed over long production runs, so crystalline food ingredients can be produced to consistent specifications, regardless of how many shifts or how long a shift, over the course of a complete production day.

Food Safety Requirement	How the Equipment Responds
Contamination Prevention	Sealed continuous processing design
Material Compatibility	SUS304/316L stainless steel construction
Consistency Standards	PLC-controlled parameter stability
Cleaning Between Batches	Smooth, easy-to-sanitize surfaces

Sugar and Sweetener Crystallization Processing

In the food business, refining of sugar constitutes one of the most volume-intensive uses of continuous centrifugal separation.

Separating Sugar Crystals from Mother Liquor

Crystallised sucrose must be removed from the surrounding syrup (called mother liquor) for further processing into consumer-ready goods. The separation is performed in a centrifugal discharge machine which, by use of centrifugal forces of up to 2000 G, draws the liquid through the drum perforations while the crystal cake is advanced by a piston mechanism towards discharge. The method can handle far larger quantities than batch centrifuges and so provides the large scale production required by big sugar refineries.

Washing Stages for Purity Enhancement

Besides simple separation, the quality of sugar crystals is often dependent on washing steps to remove leftover syrup on the crystal surfaces. In a centrifugal discharge machine, the washing capacity incorporated into the machine itself enables the crystals to be rinsed with clean water or steam throughout the continuous cycle, so increasing the colour grade and purity without the need of additional processing equipment. This integrated washing function decreases the capital expenditure as well as the floor area requirements compared to conventional stand-alone washing systems.

Handling Alternative Sweetener Crystallization

The same continuous separation techniques also assist producers processing stevia extracts, erythritol or other crystalline sweeteners as alternatives to conventional sugar. Alternative sweeteners generally need more gentle treatment to maintain their crystal structure and flavour profiles. Variable spindle speeds of 1500 to 3600 rpm enable operators to accurately control the centrifugal force for different crystal hardness and density profiles, ensuring optimal separation without overworking the product.

Starch Refinement for Food-Grade Applications

Starch processing plants depend on continual dewatering technologies to properly produce food-grade ingredients.

Dewatering Starch Slurry Continuously

Wet starch slurries from extraction methods include a lot of water that has to be decreased prior to drying. This slurry is constantly processed in a centrifugal discharge machine up to 5000 kg/h with a large moisture decrease before the material is introduced to thermal drying stages. This pre-drying dewatering phase greatly decreases the energy load on downstream dryers. Mechanically eliminating water is much cheaper than evaporative drying techniques.

Maintaining Starch Granule Integrity

In food grade starch applications (e.g. thickening agents or ingredient bases) the granule structure must stay mostly intact after processing so as to retain functional qualities such as viscosity and gelling behaviour. The delicate handling properties of centrifugal discharge machines provide minimum harm to the material during separation. The gentle handling characteristics assist retain the functional characteristics better than the more aggressive mechanical dewatering techniques that may fracture the starch granules.

Supporting High-Volume Starch Production Lines

For large-scale starch production processes, whether using maize, potato or tapioca sources, equipment is required that can keep up with upstream extraction capacity without becoming bottlenecks. A centrifugal discharge machine can maintain pace with high-volume extraction lines due to its capability to run continuously without load-unload pauses, hence enabling the throughput consistency necessary for contemporary starch production plants to stay competitive in commodity ingredient markets.

If your facility is evaluating equipment options for starch, sugar, or other crystalline food-ingredient processing, our technical specialists can review your specific throughput and purity requirements; reach out anytime at producttech@asianbios.com to discuss configuration details suited to your production line.

centrifugal discharge machine

Citric Acid and Food Additive Purification

Particularly high purity criteria are required for the manufacture of food additives and the choice of separation method is of particular importance.

Achieving Pharmaceutical-Grade Purity in Citric Acid

Citric acid is a commonly used food preservative and flavour agent . It has to be separated from the remnants of the fermentation broth to a commercial grade . A discharge machine that uses centrifugal force works well with this crystalline material. The washing function is especially crucial to remove leftover organic compounds that might influence flavour or stability. Stainless steel structure resists the mild corrosive characteristics of citric acid solutions during continuous processing.

Processing Feed and Food Additive Crystals

In addition to citric acid, additional food and feed additives are crystalline and must be dewatered before packing. This continuous, high capacity processing is useful for amino acid supplements, certain preservatives and mineral additions. The equipment’s flexibility to accommodate numerous crystal types with configurable speed and pushing frequency settings makes it suitable for facilities manufacturing diverse additive products on common equipment.

Meeting International Additive Manufacturing Standards

Food additives intended for the worldwide markets typically have to meet other regulatory regimes concurrently, such as HALAL, KOSHER and Organic certifications, in addition to the usual food safety regulations. producers seeking these various certifications do not want to have separate production lines for products going to different markets. Equipment designed to uniform sanitary standards with comprehensive documentation of materials and cleaning validation aids producers in this regard.

Food Additive Type	Processing Challenge	Equipment Solution
Citric Acid	Organic residue removal	Integrated washing during separation
Amino Acid Supplements	Crystal purity maintenance	Gentle centrifugal handling
Mineral Additives	Consistent moisture content	PLC-controlled parameter stability
Preservative Compounds	Multi-market certification needs	Standardized hygienic construction

Salt and Mineral Processing for Food Applications

Another major application area in which continuous centrifugal technology provides apparent operational benefits is the manufacturing of food-grade salt.

Table Salt Dewatering and Purification

Moisture level and purity required for retail packaging necessitate complete separation of food grade table salt from brine solutions. The centrifugal discharge machine is very successful in processing salt crystals. The separation factors up to 2000 G effectively remove residual moisture and the washing step removes contaminants that might impair flavour or appearance. This continuous process enables the commercial salt producer to make the large quantities needed to satisfy the steady market demand.

Mineral Salt and Specialty Salt Processing

Regular table salt is not the only commodity that lends itself to ongoing centrifugal separation. Other goods such as sea salt, mineral-fortified salt and salt alternatives used in reduced-sodium foods are also being considered. Many of these speciality items need attention in processing to retain the mineral content or peculiar crystal structure that makes them unique for high-end retail markets; the customisable parameters for processing allow for treatment customisation for these unique product lines.

Maintaining Consistent Particle Size Distribution

Uniform particle size is essential for retail salt products to ensure optimal packaging, dissolving characteristics, and customer experience. The continuous process in a centrifugal discharge machine can provide a more uniform particle size distribution than can batch processing because the continuous process subjects the material to a constant centrifugal force, whereas batch processing can experience variations between different batches processed under different conditions.

Selecting Equipment Configurations for Food Production Lines

A number of practical considerations unique to their production area should be considered by food businesses interested in this technology before deciding on equipment requirements.

Matching Capacity to Production Volume Needs

Food production facilities may vary from producers of speciality ingredients processing small amounts to commodity manufacturers demanding maximum throughput. Since a centrifugal discharge machine offers a capacity of 500 to 5000 kg/h, the plant must carefully assess current and future production needs to select a drum diameter and operating parameters that match actual demand, not the maximum capacity specifications.

Certification Alignment for Target Markets

You will have to meet multiple export markets and certification criteria, therefore it’s necessary to validate your equipment construction and validation documents for your unique certification objectives, whether HACCP, FSSC22000, HALAL, KOSHER, or Organic standards. Manufacturers that aim to provide a number of foreign markets should ensure that the versions of equipment they choose do not accidentally restrict the opportunities for certification in any of the targeted regions.

Planning for Multi-Product Processing Flexibility

For example, facilities manufacturing a number of crystalline products such as sugar and citric acid are better served by equipment capable of variable speed and pushing speed ranges rather than set single product arrangements. This versatility enables a single centrifugal discharge machine to be used for many production campaigns, hence increasing capital efficiency compared with specialised equipment for each unique product line.

Conclusion

A centrifugal discharge machine provides food manufacturers with the continuous, hygienic separation capacity needed to process sugar, starch, citric acid, and salt efficiently at commercial scale. Its stainless-steel construction, integrated washing capability, and PLC automation support compliance with HACCP, FSSC22000, and other food-safety standards while maintaining the throughput consistency modern production lines demand. This technology remains a practical, reliable choice for crystalline ingredient processing across diverse food manufacturing applications.

FAQ

Q: Can this equipment process both sugar and citric acid on the same line?

A: Yes, adjustable spindle speed and pushing frequency settings allow the same unit to handle different crystalline materials, though thorough cleaning between product changeovers is recommended for purity assurance.

Q: How does the washing function improve food-grade product quality?

A: Integrated washing rinses residual mother liquor or organic compounds from crystal surfaces during continuous separation, improving purity, color, and taste characteristics without requiring separate washing equipment.

Q: What certifications should food manufacturers verify before purchasing?

A: Confirm ISO9001, CE, and HACCP compliance at minimum, and verify additional certifications like FSSC22000, HALAL, KOSHER, or Organic status if targeting specific international markets with distinct regulatory requirements.
