Choosing the Right Flash Dryer Device for Your Plant

In today’s industrial processes, the choice of the correct drying equipment may make the difference between success and failure in terms of production efficiency, product quality, and bottom line. The Flash Dryer Device is a revolutionary tool for facilities handling difficult materials such as pasty materials, filter cakes and other feedstocks with high moisture content. Traditional drying technologies need pre-treatment of a lot or have trouble dealing with viscous materials. The Flash Dryer Device combines high-speed hot air and mechanical agitation to produce immediate drying and dispersion. This novel method speeds the production cycles while assuring consistent quality, preventing agglomeration and maintaining the integrity of the product in a wide range of applications. Understanding how to choose the proper Flash Dryer Device is the first step to operational excellence for facilities that want to maximize their drying operations.

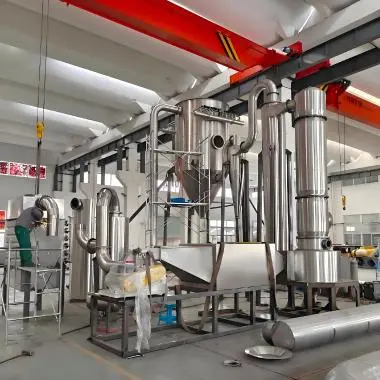

Flash Dryer Device

Understanding Your Material Requirements

Identifying Material Characteristics

Selecting the right Flash Dryer Device starts with an in-depth investigation of the specific features of your feedstock. Different materials bring different problems that directly affect the drying process. For example, fermentation filter cakes are usually very wet and sticky, which might provide operating problems in traditional dryers. The Flash Dryer Device is especially suitable for such materials, since its mechanical stirring device is adapted to break up lumps and to assure the uniform exposure to hot air. When considering compatibility with a Flash Dryer Device, consider viscosity, adhesiveness and particle size distribution. Materials with strong cohesion qualities may need unique designs of the Flash Dryer Device to minimize clumping and to guarantee smooth processing throughout the system.

Moisture Content Considerations

Moisture content is a key metric that impacts the efficiency and efficacy of your drying operation. The Flash Dryer Unit is highly efficient when dealing with materials that have a high moisture content initially, often 30% to 80% or more. This functionality makes the Flash Dryer Device an appropriate choice for the drying of filter cakes from biological fermentation or chemical processes that are normally difficult to dry. You need to know what the initial moisture content is, and what you want the ultimate moisture content to be. The Flash Dryer Device is capable of producing extremely low final moisture levels, generally less than 5%, making it suited for applications where very dry end products are desired. Understanding these criteria will assist you in choosing a Flash Dryer Device that has the right capacity and drying power for your operating demands.

Particle Size and Consistency Factors

The particle size and uniformity has a strong impact on how your input material will behave in a Flash Dryer Unit. Processing parameters may be different for fine particles than for bigger, more cohesive materials. The Flash Dryer Unit comes with a mechanical agitation system capable of handling various particle sizes, from small powders to bigger filter cakes. The combination of high speed air flow and stirring action of the Flash Dryer Device is very helpful when dealing with agglomerated materials, helping to break up clumps and achieve uniform drying. Think about whether the substance you are working with will retain its particle size after drying or whether it may break down into smaller particles. Knowing this will allow you to tweak your Flash Dryer Device setup to get the best outcomes.

Evaluating Processing Capacity Needs

Determining Throughput Requirements

The processing capacity is an important criterion when choosing a Flash Dryer Device for your operation. The usual range is from 100 to 5000 kg/h, so you have plenty of flexibility to accommodate diverse production sizes. Determine the appropriate size for your Flash Dryer Device based on your current output and peak demand times. As an example, a plant that processes 500 kg of material per hour will have a different Flash Dryer Device configuration than one that processes 2000 kg/h. Also, it is important to consider the starting and end moisture content of the material, since they directly influence the drying load. The Flash Dryer Device may be operated on a continuous basis, allowing you to process materials on a continuous basis. However, you should ensure the capacity of the Flash Dryer Device matches the capacity of your upstream and downstream processes to guarantee the workflow does not get disrupted.

Capacity Range	Suitable For	Typical Applications
100-500 kg/h	Small-scale production	Pilot plants, specialty chemicals
500-2000 kg/h	Medium production	Food processing, mid-size chemical plants
2000-5000 kg/h	Large-scale production	Major chemical plants, large food processors

Scaling for Future Growth

In purchasing a Flash Dryer Device, it pays to know not just your present demands but your development pattern as well. By choosing a Flash Dryer Device that has a little more capacity than you need, you will have space to grow without having to replace your equipment right away. Many facilities see increased production demands over time, and having a Flash Dryer Device that can scale with this development saves substantial capital investment later. Also, evaluate whether you may need to work with other materials in the future. The Flash Dryer Device is versatile and can frequently work with different feedstocks, but having excess capacity will guarantee you will not be held down as your product line expands.

Continuous vs. Batch Processing

The Flash Dryer Device was intended for continuous operation, with a number of benefits over batch processing equipment. The Flash Dryer Device may operate continuously, feeding wet material in and collecting dried product at the same time without interruption. This minimizes the down time associated with loading and unloading of batch systems and allows for more effective use of equipment, manpower and facility space. Plants requiring large volumes may realize a considerable increase in total output by using the Flash Dryer Device continuously. However, you need to be sure that the upstream and downstream processes can keep pace with the continuous operation of your Flash Dryer Device and maintain a balanced production line.

Technical Specifications and Customization Options

Temperature Control and Heat Sources

Temperature management is important for efficient functioning of a Flash Dryer Device particularly in the case of processing heat-sensitive materials. Flash Dryer Device . Flash Dryer Device provides intake air temperatures ranging from 160-350°C . The exit temperature is usually kept between 80-120°C . Wide temperature range enables Flash Dryer Device to handle diverse materials with differing heat sensitivity. Another key factor is the heat source. Asianbios provides Flash Dryer Device with electric, steam or gas heating choices. You may select the one that meets your facilities utilities and your unique needs in the most economical manner. The ability to accurately manage these temperatures allows for optimum drying conditions without heat destruction of delicate materials.

Material Construction and Durability

The building material of your Flash Dryer Device is an important factor as it determines its longevity, maintenance needs and its applicability to various uses. The Flash Dryer Equipment is usually manufactured from high quality stainless steel, especially SUS304 or SUS316L, because of its outstanding corrosion resistance and durability. SUS316L is generally used for applications involving corrosive compounds or greater hygiene requirements. The inside surfaces of the Flash Dryer Device are mirror polished (Ra ≤ 0.4 μm) to enable easy cleaning and to minimize the possibility of material accumulation that might impact drying performance and product purity. This tough design means that your Flash Dryer Device can survive the tough conditions of industrial processing, while retaining its performance over many years of operation.

Automation and Control Systems

Modern Flash Dryer Devices are equipped with modern PLC (Programmable Logic Controller) systems that provide accurate control of all key drying parameters. These control systems enable the operators to monitor and regulate the temperature, airflow, feed rate and other parameters in real time. The Flash Dryer Device’s automated capabilities enhance operating efficiency and decrease the risk of human mistake. Process optimization, quality control and regulatory compliance are enabled by complete data logging features. There are numerous available versions for facilities wishing to link their Flash Dryer Device to current production management systems and so monitor and control the whole production process centrally.

Industry-Specific Considerations

Chemical Processing Applications

The Flash Dryer Device has become an important equipment in the chemical industry for the processing of inorganic salts and different chemical substances. Many chemical compounds are formed as filter cakes with high moisture content that might be especially difficult to remove by conventional means. The Flash Dryer apparatus is used to efficiently process these materials, wherein high velocity hot air and mechanical agitation are used to break up the cakes and flash-dry the particles. This enables chemical producers to process materials continuously, producing high throughput with great product purity and uniformity. The corrosion resistant design of the Flash Dryer Device is especially useful in chemical applications where equipment life must be maintained for consistent operating dependability.

Food and Biological Fermentation

Food processors and biological fermentation facilities are using the Flash Dryer Device for its capacity to effectively dry starch, food additives and fermentation filter cakes. The Flash Dryer can handle the viscous, paste-like materials common in this business in starch processing, converting them to free-flowing powders with minimum damage. The Flash Dryer Device is an effective option for drying filter cakes which are leftovers of biological fermentation processes. The exact temperature control of the Flash Dryer Device prevents harm to heat-sensitive food ingredients and biological materials during drying, preserving their nutritional value, functional qualities and quality.

Environmental and Agricultural Uses

Flash Dryer Device may also be used in environmental protection and agricultural product processing. For environmental applications, the Flash Dryer Device is used for drying sludge and other waste products from wastewater treatment, greatly decreasing their volume for easier disposal or further processing. In the agricultural industry, the Flash Dryer Device may be used to dry a variety of items, from animal feed to plant extracts. This provides an effective means of preserving and processing these products. The Flash Dryer Device provides uninterrupted performance and great efficiency for more sustainable and cost-effective processing in the environmental and agricultural industries.

For plants seeking to optimize their drying operations with the right Flash Dryer Device configuration, Asianbios offers comprehensive technical consultation to match your specific requirements. Our team of drying specialists can guide you through the various options and specifications to ensure you select the optimal Flash Dryer Device for your unique material processing needs. To explore how our advanced drying solutions can enhance your plant's efficiency, contact our technical team at plantex@asianbios.com for personalized assistance.

Applications

Conclusion

The Flash Dryer Device represents a transformative solution for industrial drying, offering unmatched efficiency and versatility for processing challenging materials. By carefully considering material characteristics, processing capacity, and technical specifications, you can select a Flash Dryer Device that perfectly matches your plant's requirements. Its ability to handle continuous operation with precise temperature control makes it indispensable across chemical, food, biological, and environmental applications. Investing in the right Flash Dryer Device ensures enhanced productivity, consistent product quality, and long-term operational reliability for your facility.

FAQ

Q: What is the minimum capacity available for a Flash Dryer Device?

A: The Flash Dryer Device offers a minimum processing capacity of 100 kg/h, making it suitable for small-scale operations and pilot plants. This compact configuration of the Flash Dryer Device is ideal for facilities with lower production volumes or those testing new processes before scaling up. Even at this smaller capacity, the Flash Dryer Device maintains all the advanced features and efficiency benefits of larger models, ensuring consistent performance regardless of production scale.

Q: Can a Flash Dryer Device handle heat-sensitive materials?

A: Yes, the Flash Dryer Device is specifically designed to handle heat-sensitive materials through its precise temperature control system. With adjustable inlet temperatures between 160-350°C and outlet temperatures of 80-120°C, the Flash Dryer Device can be configured to process materials requiring gentler drying conditions. The short residence time in the Flash Dryer Device (often just a few seconds) also helps prevent thermal degradation, making it suitable for food ingredients, biological materials, and other heat-sensitive products that might be damaged by prolonged exposure to high temperatures.

Q: What maintenance is required for a Flash Dryer Device?

A: While the Flash Dryer Device is designed for durable and reliable operation, regular maintenance is essential to ensure optimal performance. This includes periodic cleaning of the drying chamber and dust removal systems to prevent material buildup. The stainless steel construction of the Flash Dryer Device makes cleaning relatively straightforward, and the mirror-polished surfaces help minimize residue accumulation. Regular inspection of mechanical components and calibration of sensors is also recommended to maintain the Flash Dryer Device's efficiency and accuracy over time.

Optimize Your Drying with Asianbios

Enhance your plant's efficiency with Asianbios' advanced Flash Dryer Device solutions, designed for maximum performance and reliability. Our systems offer precise temperature control, robust construction, and flexible configurations to meet your specific drying needs. With capacities from 100 to 5000 kg/h and multiple heating options, our Flash Dryer Devices deliver consistent results across various industries. Contact our technical team at plantex@asianbios.com to discuss how our drying solutions can enhance your production efficiency and meet your operational goals.

References

1. Mujumdar, A. S. (2014). Handbook of Industrial Drying (4th ed.). CRC Press.

2. Nonhebel, G., & Moss, A. A. H. (1971). Drying of Solids in the Chemical Industry. Butterworths.

3. Keey, R. B. (1992). Drying of Loose and Particulate Materials. Hemisphere Publishing Corporation.

4. Pakowski, Z., Mujumdar, A. S., & Strumillo, C. (1991). Drying '89: Proceedings of the International Drying Symposium. Hemisphere Publishing Corporation.

5. Baker, C. G. J. (1997). Industrial Drying: Equipment and Costs. Marcel Dekker, Inc.

6. Strumillo, C., & Kudra, T. (1986). Drying: Principles, Applications and Design. Gordon and Breach Science Publishers.
