How does a low temperature evaporator improve product yield?

Product yield loss during concentration processes represents one of the most costly inefficiencies in pharmaceutical, food, and biotechnology manufacturing, often stemming from heat-induced degradation of valuable compounds. A low-temperature evaporator addresses this challenge directly by using vacuum-assisted evaporation at 30-50°C, dramatically lower than conventional atmospheric boiling temperatures, to concentrate liquids while preserving the active ingredients, flavors, and nutritional properties that define product value. This article examines the specific mechanisms through which low-temperature evaporation technology protects yield, comparing it against traditional heating methods and exploring how various industries capture measurable improvements in recovered active content and overall product quality.

low-temperature evaporator

Why Traditional Concentration Methods Reduce Product Yield

Before we look at how low temperature technology addresses the yield issue, it is worth understanding precisely where the losses occur with standard evaporation techniques.

Thermal Degradation of Heat-Sensitive Compounds

The usual air evaporation needs temperatures over 100 °C to evaporate the water, but many important chemicals including enzymes, vitamins, polyphenols and volatile aromatics begin to degrade long before reaching such temperatures. This degradation immediately affects the concentration of the active chemicals in the final product. The overall amount of liquid seems to be effectively lowered. This difficulty is completely avoided by a low temperature evaporator, which operates in the 30-50°C range, and keeps processing temperatures below the degradation threshold for most sensitive botanical and biological chemicals.

Extended Processing Time Compounding Losses

Longer heating durations are needed for traditional evaporation to reach goal concentrations, which also worsens deterioration effects, even if the peak temperatures are not extreme. The longer the time of exposure at high temperature the more thermolabile chemicals are deteriorated. • Usually, the effective vacuum-assisted mechanism of a low temperature evaporator reduces the total processing time and at the same time maintains softer temperature conditions, thereby decreasing the cumulative thermal stress on the material to be concentrated.

Volatile Compound Loss During High-Heat Evaporation

In addition to deterioration, high temperature evaporation also often leads to the loss of volatile aromatic and flavour compounds with water vapour, which are permanently lost in the final concentrated product. This is especially true for fruit juice concentrates, extracts containing essential oils and fermented drinks, where the market value is strongly correlated with the scent. Evaporating at lower temperatures reduces the vapour pressure difference that draws these volatile chemicals out of the target liquid, helping to maintain more of the original sensory profile.

Degradation Factor	Traditional High-Heat Evaporation	Low-Temperature Evaporator
Operating Temperature	Often above 100°C	30–50°C
Heat-Sensitive Compound Loss	Significant	Minimal
Volatile Aroma Retention	Poor	Substantially improved
Processing Duration	Often extended	Optimized through vacuum efficiency

The Science Behind Low-Temperature Yield Preservation

The enormous differences between vacuum-based and atmospheric evaporation are explained by understanding the mechanics behind it.

Vacuum Pressure and Boiling Point Reduction

The basic science of gentle concentration is the link between pressure and boiling point. The low temperature evaporator sets up circumstances of negative pressure (usually -0.08 to -0.098 MPa) which reduces the boiling point of water much below the conventional limit of 100°C. In this vacuum environment, moisture may be removed at temperatures as low as 30° C, holding back chemicals that would otherwise denature or degrade under more traditional atmospheric processing settings.

Sealed System Contamination Prevention

The sealed vacuum environment is also important to preserve yields by eliminating oxidation and airborne contaminants during processing in addition to controlling temperature. Many beneficial substances, including antioxidants and certain vitamins, breakdown via oxidative processes when exposed to ambient air over long heating periods. The low temperature evaporator's closed design limits this oxidative exposure and provides additional security for the compound's integrity throughout the concentration cycle.

Optimized Heat Exchange for Efficient Processing

The operation involves moderate heating and the equipment is designed to efficiently transmit heat so that the material is heated evenly and not subject to hot spots that can degrade it locally even in an otherwise low temperature process. Multi-stage heat exchangers guaranty the uniform distribution of thermal energy in the evaporation chamber. Thus the material is subjected to a uniform mild treatment throughout its volume and not to an uneven exposure of certain parts of the material to a process that may negatively affect the whole batch.

Key Mechanisms That Maximize Recovery Rates

Beyond just preventing deterioration, there are several design elements that actively contribute to improved recovered yields during the concentration process.

Precise Temperature and Concentration Control

During processing, the evaporation temperature and vacuum levels are tightly controlled by automated PLC control systems, avoiding the temperature spikes or pressure variations that may otherwise precipitate rapid compound disintegration. This level of accuracy is important for batch-to-batch consistency, since a low-temperature evaporator with stable conditions produces more reliable and reproducible yield results than manually controlled systems subject to operator variability.

Reduced Product Loss Through Continuous Processing

Continuous or semi-continuous operating modes minimise the material handling procedures which are commonly the cause of physical product losses, such as residues left in transfer containers or partial batch recovery. Automated discharge systems allow effective removal of the concentrated product from the evaporation chamber when target density is attained, and clean-in-place capabilities minimise material stranded on equipment surfaces between processing cycles.

Energy Efficiency Supporting Consistent Operation

The advanced heat pump technology, coupled with optimised heat exchange design, leads to significant energy savings relative to conventional evaporation processes. This energy efficiency indirectly benefits yield by enabling the economic viability of gentler and more controlled processing cycles rather than hurrying through concentration steps to minimise energy costs. Without the temptation to maximise speed at the cost of temperature control, product quality gains organically.

If you're uncertain which evaporation parameters would best protect your specific formulation's active compounds, our technical team can review your material characteristics and recommend appropriate settings; contact us at plantex@asianbios.com for tailored guidance based on your production goals.

Industry Applications Where Yield Improvements Matter Most

The effects of yields benefit different industries in different ways depending on what particular chemicals or features constitute the value of their product.

Traditional Chinese Medicine and Herbal Extract Processing

Extracts from herbal and traditional medicines are generally complex combinations of alkaloids, flavonoids and other bioactive chemicals which are famously sensitive to heat exposure. The low temperature evaporator maintains these active medicinal constituents better than traditional concentration procedures, so immediately boosting the potency and uniformity of final herbal products. This yield preservation means that higher value final extracts need less raw material input to meet target potency criteria.

Fruit Juice and Food Slurry Concentration

Fruit and vegetable juice makers concentrate juice to decrease volume for shipment and to improve shelf life. Traditional high-heat concentration processes typically destroy the fresh flavour and nutritional value that contribute to product quality. Gentle vacuum evaporation maintains more vitamin C, antioxidants, and volatile aromatic compounds, so concentrated juices taste more like their fresh-pressed origin, while yet accomplishing the moisture reduction necessary for economical storage and transit.

Fermentation Liquid and Probiotic Concentration

Applications of biotechnology that use living cultures, enzymes or fermentation broths must be very careful with temperature, since too much heat might kill helpful microorganisms or completely denature useful proteins. The ability of a low temperature evaporator to concentrate these liquids at 30-50°C preserves viable cell counts and enzymatic activity hence directly supporting better output of functional biological material in the end concentrated product.

Industry Application	Sensitive Component Protected	Yield Benefit Realized
TCM/Herbal Extracts	Alkaloids, flavonoids	Higher potency retention
Fruit Juice Concentration	Vitamin C, aromatic compounds	Improved flavor and nutrition retention
Fermentation/Probiotics	Live cultures, enzymes	Preserved viability and activity
Industrial Wastewater	Recoverable valuable compounds	Increased material recovery

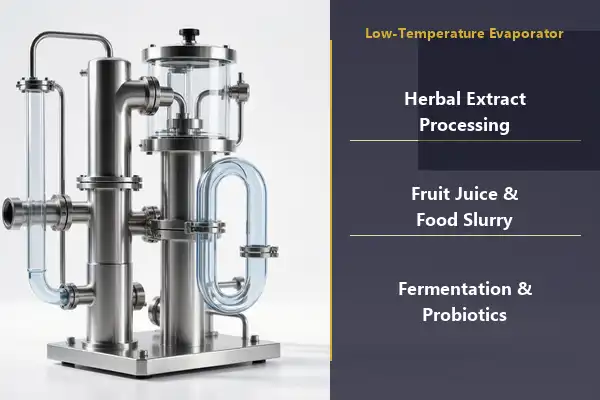

Industry Applications

Optimizing Your Evaporation Process for Maximum Yield

To realise the full yield advantages of this technology involves more than merely acquiring a vacuum evaporator. There are several operational and equipment selection issues to be addressed.

Matching Processing Capacity to Batch Requirements

Choosing the right equipment size is important for reproducible yields. A low-temperature evaporator running much below or beyond its optimum capacity range would not be able to provide the exact temperature and vacuum conditions required for maximal compound preservation. Processing capacity vary from 50 to 5000 L/h. This helps facilities to better align equipment to real production volumes for more constant operating conditions.

Material-Specific Temperature Calibration

varied materials will have somewhat varied temperature tolerances before deterioration occurs. So depending on whether you are working with fragile probiotic cultures or tougher herbal extracts your ideal evaporation temperature (within the 30-50C range) may be different. The equipment’s exact temperature control and adjustment enables facilities to tailor the setting to the sensitivity profile of their material, rather than utilising preset general values.

Maintenance Practices That Sustain Yield Performance

To maintain a consistent yield over time the vacuum system has to be maintained and the heat exchanger needs to be kept clean. If the seals wear out or the heat transfer surfaces become dirty the low temperature conditions that the equipment is supposed to maintain might slowly break down. It is important to do routine checks on vacuum pumps, condensers and control sensors so that the equipment remains within its design specifications and yields are consistent over long periods of time, rather than a progressive decline in performance.

Conclusion

A low-temperature evaporator improves product yield by operating within a gentle 30-50°C range under vacuum conditions, protecting heat-sensitive compounds that conventional high-temperature methods would degrade or drive off as volatile losses. From herbal extracts to fruit juices and fermentation liquids, this technology consistently preserves more active content, flavor, and biological viability, delivering measurable improvements in final product value across pharmaceutical, food, and biotechnology applications.

FAQ

Q: How much yield improvement can I expect compared to conventional evaporation?

A: Improvements vary by material, but heat-sensitive compounds like enzymes, vitamins, and volatile aromatics typically show substantially higher retention rates, since processing occurs well below the degradation thresholds triggered by conventional high-temperature methods.

Q: Is low-temperature evaporation suitable for all liquid materials?

A: It works particularly well for heat-sensitive materials like herbal extracts, fruit juices, fermentation liquids, and probiotic cultures. Adjustable capacity from 50-5000 L/h accommodates various material types and production scales.

Q: Does slower, gentler processing reduce overall production efficiency?

A: Not significantly. Optimized heat exchange and vacuum efficiency often reduce total processing time compared to conventional methods, while advanced heat pump technology helps control energy consumption despite the lower operating temperature.
