Industrial liquid concentration presents a fundamental engineering challenge: how do you remove large volumes of water from a solution efficiently, without wasting energy or damaging valuable compounds? A multi-effect evaporator machine answers this challenge by cascading steam energy through multiple sequential evaporation stages, achieving evaporation capacities from 1000 to 50000 kg/h while using dramatically less energy than single-stage alternatives. This article explains exactly how the technology functions from a mechanical and thermodynamic standpoint, then explores the specific industries and applications where this equipment has become standard practice for large-scale liquid concentration.

multi-effect evaporator machine

Getting Started: The Basic Concept Behind Multi-Effect Evaporation

Before diving into technical details, it helps to establish the foundational idea that makes this technology so much more efficient than simpler evaporation approaches.

The Problem with Single-Stage Evaporation

Removing water from liquid through a single evaporation stage requires substantial steam input, since each unit of water evaporated demands roughly equivalent thermal energy input, with much of that energy simply lost as the resulting vapor is condensed and discarded. This approach becomes prohibitively expensive at industrial scale, which is precisely why a multi-effect evaporator machine was developed to capture and reuse this otherwise wasted thermal energy across sequential processing stages.

Effect Cascading as an Energy Solution

Rather than discarding vapor after a single evaporation pass, this technology channels the vapor generated in one "effect" or chamber forward as the heating source for the next effect in the sequence. Each subsequent chamber operates at slightly lower pressure and temperature, allowing the cooler incoming vapor to still transfer usable heat. This cascading principle is the single most important concept for understanding why multi-effect systems achieve such substantial efficiency advantages over simpler alternatives.

Vacuum Environment as an Enabling Factor

The entire cascade depends on maintaining vacuum conditions throughout the system, typically between -0.08 and -0.098 MPa, since reduced pressure lowers the boiling point at each successive stage. Without this vacuum environment, the progressively cooler vapor available at later effects wouldn't generate sufficient temperature differential to drive continued evaporation, making the vacuum system just as essential to overall function as the thermal cascade itself.

Evaporation Approach	Energy Characteristic	Practical Implication
Single-Effect Evaporation	High steam consumption per unit water removed	Costly at industrial scale
Multi-Effect Evaporation	Cascaded steam reuse across effects	Substantially reduced energy costs
Vacuum-Assisted Operation	Lower boiling points at each stage	Enables cascade to function effectively

Step-by-Step: How the Evaporation Cascade Actually Works

With the basic concept established, tracing the actual sequence of events clarifies how raw liquid transforms into concentrated product through the machine.

Initial Feed and First Effect Processing

Raw liquid enters the first effect heating chamber through an automated feeding system, where primary steam, typically the only externally supplied heat source in the entire process, raises the material to evaporation temperature. As moisture vaporizes, the remaining liquid becomes measurably more concentrated, while the vapor generated here carries thermal energy forward rather than being wasted, setting the entire cascade sequence into motion.

Sequential Heat Transfer Through Subsequent Effects

The vapor produced in the first effect travels to the second effect, where it serves as the heating medium instead of fresh steam, warming the already partially concentrated liquid arriving from the first stage. This process repeats through however many effects the system includes, whether two, three, four, or five, with each stage further concentrating the liquid while extracting additional evaporative work from the diminishing but still useful thermal energy passed along the cascade.

Condensation and Vapor Recovery

At the final effect, remaining vapor passes to a condenser system where it returns to liquid form, often producing relatively clean water suitable for reuse in various facility applications. This condensation step also helps maintain the vacuum conditions essential throughout the system, since removing vapor volume from the final stage sustains the pressure differential that drives the entire cascade process from start to finish.

Final Concentration and Automated Discharge

Once the liquid reaches target concentration density, typically monitored continuously through PLC-controlled sensors, automated discharge systems release the finished concentrate from the final effect chamber. This automation ensures that a multi-effect evaporator machine maintains continuous production flow, with fresh material entering the first effect even as finished concentrate exits the last, sustaining uninterrupted processing throughout extended production runs.

Inside the Machine: Core Components and Their Roles

Understanding the physical hardware that enables this cascading process helps clarify why certain design choices matter for reliable, efficient operation.

Heating and Evaporation Chambers

Each effect within the system contains both a heating chamber, where thermal energy transfers into the liquid, and an evaporation separation chamber, where vapor separates cleanly from the concentrating liquid phase. These chambers feature specially engineered heat exchange surfaces designed to maximize thermal transfer efficiency, ensuring that each unit of available steam energy, whether primary or recycled from a previous effect, contributes as much evaporative work as possible.

The Condenser and Vacuum Systems

Working together, the condenser and vacuum systems maintain the pressure conditions that make the entire cascade function. High-efficiency condensers recover secondary vapor from the final effect while sustaining the negative pressure environment throughout the system. Advanced vacuum pumps continuously counteract pressure increases, ensuring stable vacuum conditions that keep evaporation temperatures within the gentle 50-90°C range across all effects.

Circulation Pumps and Material Flow Management

Variable-speed circulation pumps ensure liquid moves appropriately between effects and within each evaporation chamber, preventing the localized concentration buildup or fouling that could compromise heat transfer efficiency. This controlled material flow becomes particularly important when processing viscous liquids like syrups or concentrated plant extracts, where inadequate circulation could create processing inconsistencies within a multi-effect evaporator machine handling variable material densities.

PLC Control Architecture

A centralised PLC control system monitors temperature, pressure, flow rates and concentration levels across all effects concurrently, making real-time changes that would be unachievable via human operation. This automation guaranties constant product quality and safeguards the system via integrated safety monitoring of overheating, overpressure, overload and low level circumstances, which might otherwise endanger equipment or processing results.

If you're trying to determine how many effects your specific application requires or which structural configuration best suits your material properties, our technical team can review your process details and provide tailored recommendations; reach out anytime at plantex@asianbios.com for personalized guidance.

Where This Technology Delivers Value Across Industries

Having established how the equipment functions mechanically, it's worth examining the specific industries and applications where multi-effect evaporation has become standard practice.

Plant Extract and Traditional Medicine Concentration

This equipment is essential for biotech facilities working with plant extracts and formulations of traditional Chinese medicine, enabling them to concentrate solutions while retaining the bioactive chemicals. A multi-effect evaporator machine is especially helpful when it comes to herbal pharmaceutical extract processing. The low temperature operating range of 50-90°C in conjunction with vacuum conditions provides protection to heat-sensitive alkaloids and other therapeutic compounds that would otherwise degrade under more aggressive concentration methods.

Food and Beverage Manufacturing Applications

The technique may be used for fruit juice processing, syrup manufacture and glucose solution concentration with big scale and energy efficiency. The cascading energy efficiency benefits food manufacturers that process large quantities of liquids by providing lower production costs, and the mild conditions of evaporation help maintain flavour and nutritional properties that differentiate product quality in competitive food markets.

Fermentation and Pharmaceutical Intermediate Processing

This equipment is used in biological fermentation facilities and pharmaceutical manufacturing to concentrate fermentation broths and active pharmaceutical ingredient solutions where product integrity throughout processing has a direct effect on effectiveness of the end product. The steady and continuous operation, as well as the exact PLC controlled parameters, ensure the batch-to-batch uniformity that a regulated pharmaceutical production environment requires.

Environmental and Wastewater Treatment

This method is also useful in environmental applications such as reduction of industrial effluent and salty wastewater quantities with recovery of useable water by condensation. Multi-effect evaporation has been widely used by facilities with discharge volume constraints as a feasible technique of achieving considerable waste reduction, with the possible added advantage of resource recovery.

Application Area	Primary Benefit Delivered
Plant Extract/TCM Processing	Bioactive compound preservation
Food & Beverage	Cost-efficient large-scale concentration
Fermentation/Pharmaceutical	Consistent quality for regulated production
Environmental Treatment	Wastewater volume reduction, water recovery

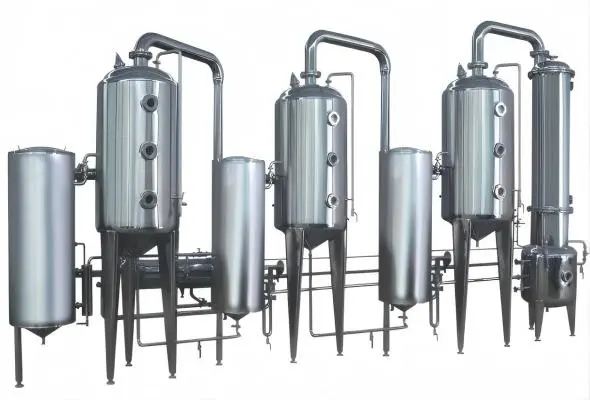

multi-effect evaporator

Choosing the Right Configuration for Your Process

Understanding how and where this technology works naturally leads to practical questions about selecting the right configuration for a specific application.

Determining Appropriate Effect Numbers

Facilities must balance capital investment against long-term energy savings when selecting between two, three, four, or five effect configurations. Higher effect numbers generally deliver greater energy efficiency but require larger initial investment and more complex system footprint, making this decision highly dependent on projected processing volumes and the value placed on long-term operating cost reduction versus upfront capital expenditure.

Matching Structural Form to Material Properties

Available structural options, including falling film, rising film, and forced circulation designs, each suit different material characteristics. Facilities processing highly viscous syrups or materials prone to fouling typically benefit from forced circulation designs, while cleaner, lower-viscosity solutions may process efficiently through simpler falling film configurations, making material characteristics a key factor in structural form selection.

Planning for Capacity and Future Scalability

Evaporation capacity ranges from 1000 to 50000 kg/h, and facilities should take into account present processing requirements and realistic future expansion when specifying equipment. It is important to choose the right capacity size to prevent oversized equipment from functioning at less than ideal capacity and undersized systems from becoming a bottleneck as production volumes expand.

Conclusion

A multi-effect evaporator machine achieves remarkable energy efficiency by cascading steam heat through sequential evaporation stages under vacuum conditions, enabling large-scale liquid concentration from 1000 to 50000 kg/h at gentle temperatures. From plant extract processing to food manufacturing, pharmaceutical production, and wastewater treatment, this technology's combination of thermal efficiency, PLC automation, and corrosion-resistant construction makes it the practical choice for industries requiring reliable, cost-effective concentration at industrial scale.

FAQ

Q: How does adding more effects improve energy efficiency?

A: Each additional effect reuses steam energy one more time before it's condensed, extracting more evaporative work from the same primary steam input, which reduces overall energy consumption per unit of water removed.

Q: What materials can this equipment process besides wastewater?

A: It handles plant extract solutions, fermentation liquids, glucose solutions, Chinese medicine extracts, and syrups, making it versatile across biotechnology, food, and pharmaceutical applications beyond environmental treatment.

Q: Is the low-temperature operation suitable for heat-sensitive materials?

A: Yes, operating between 50-90°C under vacuum conditions protects heat-sensitive compounds like bioactive plant extracts and pharmaceutical intermediates from thermal degradation during concentration.
