What Temperature Should a Low-Temperature Evaporator Maintain?

Selecting the correct operating temperature is arguably the single most important decision when configuring concentration equipment for heat-sensitive materials. A low-temperature evaporator typically operates within a 30-50°C range, achieved through vacuum-assisted evaporation that lowers water's boiling point far below atmospheric conditions. This article breaks down exactly what temperature ranges suit different materials, how vacuum pressure interacts with temperature settings, and what factors should guide your specific configuration choice, whether you're concentrating traditional Chinese medicine extracts, fruit juices, or fermentation liquids that each demand distinct thermal handling.

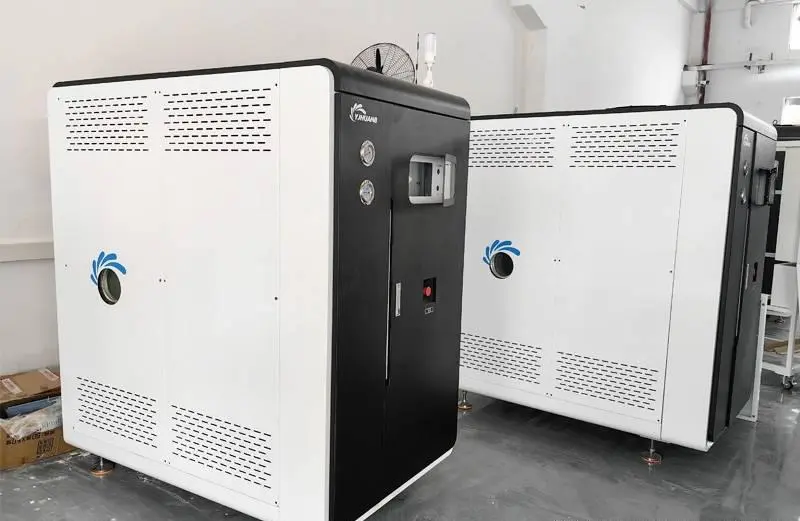

low-temperature evaporator

Understanding the Standard Operating Temperature Range

Before discussing differences concerning individual materials, it is useful to clarify the fundamental temperature characteristics that characterise this equipment class.

The 30-50°C Sweet Spot Explained

The majority of low-temperature evaporator applications run in the 30-50°C range, which is selected to strike the best balance between effective moisture removal and protecting the compound. This range is substantially below the temperatures at which most proteins, enzymes and thermolabile plant chemicals denature yet is high enough to allow respectable rates of evaporation under vacuum circumstances. Equipment makers have been tuning default settings in this range for decades, including processing data from pharmaceutical and culinary applications.

How the Design Temperature Range Extends Further

Normal operating range is normally in the 30-50°C region, although well-designed systems can frequently handle a greater range of design temperature from -20°C to 100°C to allow for unique applications or uncommon material qualities. The expanded range enables the low temperature evaporator to handle infrequent processing demands outside the normal working window, such as materials that need slightly warmer treatment, or applications that include pre-cooling phases before the evaporation process starts.

Why Temperature Alone Doesn't Tell the Full Story

Temperature parameters only make sense when put along with vacuum pressure. The connection between these two variables defines the actual evaporation behaviour. For example, the rates of removal of moisture at 40°C are drastically different under deep vacuum settings vs lesser vacuum levels at the same temperature. It is important to appreciate this interdependence before believing that a single temperature number would provide certain processing results.

Temperature Parameter	Typical Value	Purpose
Standard Operating Range	30–50°C	Optimal for most heat-sensitive materials
Extended Design Range	-20°C to 100°C	Flexibility for specialized applications
Vacuum Degree	-0.08 to -0.098 MPa	Enables low-temperature boiling

The Vacuum-Temperature Relationship That Defines Performance

To see why lower temperatures still provide effective evaporation we need to understand the fundamental concept that links pressure and boiling point.

How Negative Pressure Lowers Boiling Point

Water normally boils at 100°C at normal atmospheric pressure, but reduce the pressure around it and the boiling point drops. This phenomenon is used in a low temperature evaporator in which a vacuum of between -0.08 and - 0.098 MPa is established leading to water evaporation at temperatures as low as 30°C. This physical link is the whole basis of gentle concentration technology, which allows producers to eliminate moisture without exposing materials to hazardous heat levels.

Calibrating Vacuum Depth for Target Temperatures

For it to achieve a certain processing temperature, it is necessary to precisely calibrate the vacuum depth, since deeper vacuum conditions allow for lower evaporation temperatures at the same moisture removal rate. Operators often have to maintain more aggressive vacuum levels to compensate for the low end of the 30-50C range, especially if they have to process heat sensitive materials. Materials that can tolerate somewhat higher temperatures may run with somewhat less harsh vacuum settings.

Maintaining Stable Vacuum Throughout Processing

The temperature control is completely dependent on a stable vacuum throughout the whole evaporation cycle . This is because pressure changes are instantly translated into temperature changes that might be detrimental to sensitive substances . The low-temperature evaporator has integrated high-performance vacuum pumps that operate constantly to combat the pressure variations that naturally happen as vapour volume expands during active evaporation, guaranteeing a constant temperature within the desired range from the beginning to the end.

Matching Temperature Settings to Material Sensitivity

differing materials tolerate differing maximum temperatures before quality deterioration occurs, therefore material-specific calibration is necessary for best results.

Herbal and Traditional Medicine Extract Requirements

In fact, many extracts of traditional Chinese medicine are made up of complex alkaloid and flavonoid components which, unexpectedly, start deteriorating at lower temperatures than more durable materials. For these applications, the operators often aim the lower part of the normal range, usually about 30-35°C, so as to preserve as much as possible of the medicinal chemicals. A low temperature evaporator designed for the processing of herbs often supports this cautious temperature setting with higher vacuum levels to ensure effective removal of moisture without significant thermal energy input.

Fruit Juice and Food Slurry Considerations

Food slurries and fruit juices can typically handle somewhat higher temperatures in the normal range and are commonly run happily at 40-45°C. Many food grade chemicals are more thermally stable than pharmaceutical actives. However, manufacturers concerned with maximum flavour and vitamin retention may opt to operate towards the lower end of this range, accepting slightly longer processing durations in return for improved sensory and nutritional preservation in the final concentrate.

Fermentation Liquid and Probiotic Temperature Limits

Live microbial cultures and enzymatic solutions may have the most stringent temperature requirements, since temperatures over specific thresholds might kill beneficial species outright or irreversibly denature functioning proteins. Temperature verification is often critical in fermentation applications, where temperatures are held at the lower end of the range or even custom configurations below the standard 30°C minimum for especially sensitive biological materials that are processed through specialised evaporator setups.

Because optimal temperature settings depend so heavily on your specific material composition and sensitivity profile, it's often worthwhile to consult with equipment specialists before finalizing your process parameters; our technical team welcomes inquiries at plantex@asianbios.com to help determine appropriate temperature and vacuum combinations for your application.

Material Category	Typical Temperature Target	Key Sensitivity Concern
TCM/Herbal Extracts	30–35°C	Alkaloid and flavonoid degradation
Fruit Juice/Food Slurry	40–45°C	Vitamin and flavor loss
Fermentation/Probiotics	Lower end or below standard range	Cell viability, enzyme denaturation
Industrial Wastewater	Upper end of range acceptable	Less compound sensitivity concern

Control Systems That Maintain Precise Temperature

In reality, attaining the temperature objectives that are in principle possible requires complex control infrastructure to adapt to real-time changes in the process.

PLC Automation for Consistent Thermal Management

Modern equipment uses PLC-based automation to monitor and control temperature throughout the evaporation cycle, making micro-adjustments to heating input and vacuum levels that could not be replicated by human operation. This automated method guaranties that a low-temperature evaporator maintains its target temperature within tight tolerances if material qualities or environmental conditions vary over lengthy processing cycles.

Multi-Point Sensor Networks for Accuracy

The reliable temperature control is based on the location of sensors all across the evaporation chamber and heat exchange network, as a single measurement point may not be sufficient to describe conditions over the whole system. By monitoring at several points, the control system can identify minor changes in temperature and make compensations before they may influence the overall quality of the product. This means that consistent gentle handling can be achieved across the whole batch of material, not only at a single reference point.

Safety Interlocks Preventing Temperature Excursions

In addition to normal control, full safety measures safeguard against temperature excursions that may harm both product and equipment. If things go out of the safe zone , overtemperature protection will immediately engage , cutting heating input or changing vacuum levels , to bring things back into acceptable ranges . This protection is especially crucial when dealing with very sensitive materials because any temperature excursions, even transient ones, might ruin a whole manufacturing batch.

Practical Steps for Determining Your Optimal Temperature

To turn generic recommendations into a particular operational configuration demands a methodical strategy. The methodology must be matched to your individual material and production situation.

Conducting Small-Scale Trial Runs

Before committing to complete production specifications, doing small-scale trials at several temperature points within the standard range helps to discover the particular threshold where your material starts to exhibit quality differences. This empirical technique will typically reveal more exact ideal settings than just following generic industry norms, since even within a broad category of materials, there may be considerable variations in sensitivity based on unique formulation or sourcing variables.

Balancing Temperature Against Processing Speed

Generally, lower temperatures provide greater compound protection but may need longer processing times or deeper vacuum levels to accomplish similar moisture removal, posing a realistic trade-off for production planners to manage. For those materials that are just moderately sensitive to heat, rather than very sensitive, facilities need to consider if any throughput decrease is worth the minuscule quality increase that is achieved at the very lowest temperature.

Consulting Documented Compound Stability Data

For many active chemicals, there are published stability data showing a certain temperature threshold where the degradation rate increases sharply. Before running confirmatory trial runs, review the available literature on your target compounds, be they specific alkaloids, vitamins or enzymes. This can be valuable guidance in selecting initial temperatures to test, helping to narrow the range of testing required and to identify truly optimal processing conditions for your specific application.

Low-Temperature Evaporator Maintain

Conclusion

Determining the right temperature for a low-temperature evaporator depends on balancing the standard 30-50°C operating range against your specific material's heat sensitivity, with vacuum depth serving as the key variable enabling gentle processing at reduced thermal input. Herbal extracts, fruit juices, and fermentation liquids each demand different calibration approaches, making precise PLC-controlled temperature management essential for consistently protecting product quality across diverse concentration applications.

FAQ

Q: What happens if the temperature exceeds the recommended range during processing?

A: Exceeding recommended temperatures risks degrading heat-sensitive compounds, reducing potency, flavor, or biological activity. Built-in overtemperature protection systems typically intervene automatically to prevent sustained excursions beyond safe limits.

Q: Can the same equipment handle both low and higher temperature requirements?

A: Yes, many systems support an extended design range from -20°C to 100°C, though standard operation for heat-sensitive materials typically remains within 30-50°C for optimal compound protection.

Q: How does vacuum level affect the achievable processing temperature?

A: Deeper vacuum levels, closer to -0.098 MPa, allow lower evaporation temperatures for equivalent moisture removal rates, giving operators flexibility to fine-tune conditions based on material sensitivity requirements.
