Why Vacuum Control Matters in Multiple Effect Evaporator Operation

Pressure controls the boiling temperature in every effect, and boiling temperature controls how much heat travels through the tubes, therefore vacuum management is important. The steady vacuum makes it possible to utilise the vapour from one effect to heat the next effect. The multiple effect evaporator operating procedure can maintain concentration, protect heat sensitive product and minimise steam use. I witness fluctuating concentration, foaming, entrainment, fouling, and greater energy expenditures when the vacuum wanders. In this tutorial I discuss operating principle, parameters, starting, shutdown, troubleshooting, cleaning and equipment selection. Your team can operate and specify evaporators with fewer surprises.

The first effect is at the maximum pressure, the other effects are at deeper vacuum. US plant teams frequently ask me how to establish and retain that profile, so I provide the multiple effect evaporator operating technique that I advocate.

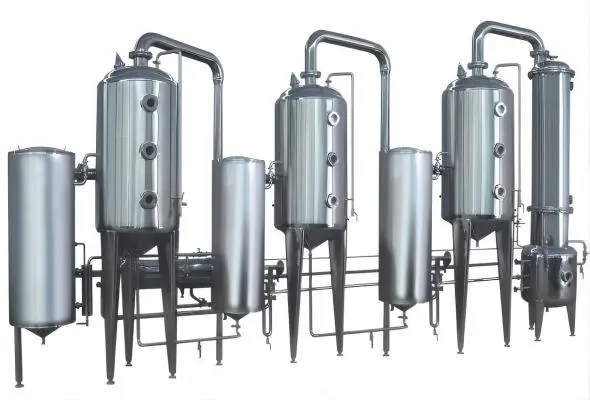

multi-effect evaporator machine

Multiple Effect Evaporator Working Principle and Vacuum Distribution

How Vapor Reuse Shapes the Multiple Effect Evaporator Operating Procedure

The initial effect is heated by steam. The vapour boiling off there heats the second effect which works at lower pressure and so at a lower boiling point. The same sequence is repeated along the train with the final vapour going to the condenser. Thus, one kilogram of steam may evaporate more than one kilogram of water. Textbooks like McCabe’s Unit Operations of Chemical Engineering mention that the steam economy is close to, but not equal to, the number of effects as heat losses and boiling-point elevation take their part. I start all multiple-effect evaporator operating procedures with the cascade, since each effect is dependent on the vacuum and heat of its neighbour.

Absolute Pressure Versus Gauge Vacuum

Operators can read the vacuum gauge, although boiling is a function of absolute pressure. -0.08 MPa would be roughly 21 kPa absolute at sea level. Water boils at about 61°C. A given gauge reading at a greater altitude suggests a lower absolute pressure, thus I constantly verify site elevation. Concentrated sugars, salts and extracts boil above the water value. That gap is the boiling point elevation, and it reduces the temperature difference available for heat transfer. The table illustrates the boiling temperature of pure water vs pressure.

Boiling temperature	Absolute pressure	Gauge vacuum at sea level
100°C (212°F)	101.3 kPa	0
80°C (176°F)	47.4 kPa	about -0.054 MPa
60°C (140°F)	19.9 kPa	about -0.081 MPa
40°C (104°F)	7.4 kPa	about -0.094 MPa

At deep vacuum a little change in pressure causes a large change in boiling temperature, hence a small loss of air may ruin the entire train.

Components That Control Vacuum

Vacuum is a product of a system, not of a single pump. The condenser takes out most of the volume by condensing the vapour of the last effect back into liquid. Then non-condensable gas (such as air leaking in) is pulled out using a vacuum pump or ejector. The system is completed with pressure transducers, control valves, separators, demisters and vents. In the Asianbios units, the evaporation chamber separates vapour from liquid, the condenser recovers secondary vapour and maintains vacuum, and a PLC measures temperature, pressure, flow and concentration. My multiple impact evaporator operating technique checks cooling water before the pump because if the condenser runs warm the pump works harder.

Multiple Effect Evaporator Operating Parameters and Normal Operation

Parameters to Watch in the Multiple Effect Evaporator Operating Procedure

I read vacuum together with the temperature of each effect. Never alone. A good train has a gradual drop in temperature and pressure from effect to effect. The same screen should display: feed flow, liquid level, steam pressure, condensate removal, product discharge, viscosity, solids loading and final concentration. A strange temperature gap has a tale to tell. A tiny gap is generally a sign of fouling, whereas a dramatic leap might indicate air leakage, flooding or a clogged condensate line. Log baseline values at commissioning so that drift is easily apparent. Use the supplier’s design pressure-temperature curve as the limit. These restrictions are written out in the operating method of the sound multiple effect evaporator.

Keeping Vacuum Stable During Production

The equilibrium gives the stable vacuum. Condenser duty, vacuum-pump capacity, steam pressure, feed rate, liquid level and discharge are all interrelated such that an aggressive modification might initiate oscillation. I like cascade control and trend monitoring more than frequent manual adjustments. Make one modification, let the trend settle, then decide. Watch the pressure differential between effects. This is an indicator of the heat transfer loading. Condensate fills tubes and decreases capacity when it is inadequately drained. Rising viscosity, foaming and entrainment distort the profile. Keep removing non-condensable gas, since even little volumes can blanket heating surfaces. I included the one-change-at-a-time rule in the operation procedure for the multiple effect evaporator.

Why More Steam Rarely Fixes Low Capacity

It seems logical to raise the steam pressure when the capacity is down, but it might backfire. A hotter wall bakes product onto tube surfaces, speeds up fouling, and may harm heat-sensitive plant extracts or fermentation solutions. It also uses more energy each kilogram of water removed. I begin by checking the vacuum, condensate drainage and fouling indicators. Usually cleaning restores capacity better than additional steam if the temperature differential across an effect has narrowed. The operating method for the multi-effect evaporator machine must include a trigger, such as a certain capacity loss at steady feed, so that the night-shift operators do not have to guess.

Multiple Effect Evaporator Operating Procedure: Startup and Shutdown

Multiple Effect Evaporator Startup Procedure Step by Step

I broke startup down into four phases. First, do the safety checks. Ensure that the P&ID and SOP match the installed unit. Check the equipment. Verify the steam, power and cooling water. Confirm that the cleaning chemicals are gone. Second, calibrate instruments and test alarms and interlocks. Third, turn on condenser cooling water, then the vacuum pump or ejector, and slowly draw vacuum. Fourth, feed, start circulation, and begin steam admission with a gradual, steady cascade of pressure and temperature. Take it slow to avoid rapid boiling, foaming, carryover, pump cavitation and heat shock. Record baseline data to be your troubleshooting reference before deploying the device. This step of the multiple effect evaporator working process pays back initially.

Normal Shutdown and Standby

For a planned stop, lower feed and steam slowly, retain the circulation or washing if the product needs it, cut off steam and allow the leftover vapour to condense. Stop the vacuum system only when the danger of carryover is minimal. For standby, determine in writing whether the unit is under vacuum, stays full or drains. Avoid crystallisation and freezing. Shut down and check the unit and note results. Note any cleaning to be done so that the next restart is clean. The shutdown method for the multiple effect evaporator needs the same attention as the starting procedure and should be part of the same multiple effect evaporator operating procedure manual.

Emergency Shutdown

Emergency conditions include loss of cooling water, severe loss of vacuum, pressure increase, leak, fire, pump failure and abnormal vibration. The initial actions are still the same: isolate steam, halt feed, and put the unit in a safe condition. Loss of cooling water demands particular attention when the condenser ceases to remove vapour and the pressure builds. Asianbios systems include safety for overheat, overpressure, overload and low level, but I encourage drills so operators know each trip point. Safely relieve pressure, document what occurred, and use “lockout/tagout” before making repairs. Then debrief the shift crew on the experience and include the missing step in the multiple effect evaporator operating procedure.

Vacuum System Troubleshooting, Cleaning, and Scaling Prevention

Common Causes of Low Vacuum

Low vacuum is seldom caused by one thing. Number one on my list is air leakage at flanges, seals and sight glasses. Next are condenser fouling, heated or restricted cooling water, vacuum-pump wear, ejector trouble, clogged suction lines, and high vapour load. Foaming and condensate floods may overburden the system and a bad transmitter can mimic the whole situation. The table gives the prevalent symptoms, potential causes and my initial examination. Use it as a stepping stone. If there is a difference, your design data and proven multiple effect evaporator operating method should be followed.

Symptom	Likely cause	First check
Slow vacuum pull-down	Air leak or worn pump	Leak test, pump condition
Vacuum drifts after hours	Condenser fouling or warm water	Cooling-water temperature and flow
Pressure oscillates	Loop tuning or foaming	Controller trend, feed rate
Narrow gap between effects	Tube fouling	Capacity versus feed trend
Product in condensate	Entrainment or demister problem	Separator level, conductivity

A Diagnostic Sequence That Saves Time

I always do it in the same sequence. First, check the local gauges with the transmitters to rule out a defective instrument. Then check the pressure patterns. A quick decrease suggests a leak or trip, a slow decline indicates fouling. Then check utilities like cooling water temperature and flow, steam pressure and electricity. Check separator levels and demister levels. Where the procedure permits, test the vacuum system under lower load. If vacuum returns, suspect vapour load or condenser capacity. Oscillating pressure often requires a loop tuning review, and excessive vacuum may cause foaming, so don't resort to chasing deeper vacuum. This order should be part of your operating routine for your multiple effect evaporator.

CIP and Scaling Prevention That Protects Vacuum

Insulate tubes, scale and residue reduce evaporation capacity and force operators to use more steam, destabilising vacuum. The standard cleaning cycle involves product removal, pre-rinse, circulation of a suitable alkaline, acid or enzymatic solution, final rinse and inspection. Check spray devices, return lines, dead legs, low points and condensate chambers, and accept the cycle based on rinse conductivity and pH. For food and pharmaceutical applications, keep records and check chemical compatibility with SUS304 or SUS316L. Prevention is better: pretreat feed, manage final concentration, prevent excessive wall temperature, and clean on condition rather than on the calendar alone. Add these CIP procedures to the operating method of the multiple effect evaporator.

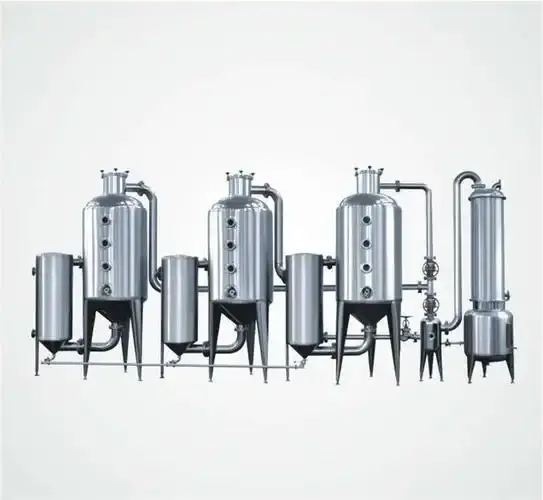

multi-effect evaporator machine

Equipment Selection, Verification, and Common Mistakes

Choosing Feed Arrangement, Effect Number, and Evaporator Type

There are several important considerations: feed orientation, pumping requirements, and product temperature and viscosity management. In forward feed, liquid flows with the vapour, uses fewer pumps, and is good for low-viscosity or hot feeds. In backward feed, the thickest liquid is in the hottest effect, which is useful when the end product is viscous, but requires more pumps. Special concentration profiles are possible via parallel and mixed configurations at the expense of control complexity. More effects reduce steam usage but require investment, footprint and maintenance, and boiling-point elevation restricts how many a device can sustain. Falling film is ideal for heat-sensitive and low-viscosity liquids, while forced circulation is best for fouling, salt-carrying or viscous streams. Pilot testing on your actual feed establishes the option, and I lock in the multiple effect evaporator operating process once the data is available.

Asianbios Multi-effect Evaporator Machine at a Glance

Here are the main specifications of our Multi-effect Evaporator machine in plant extract solution, fermentation liquid, glucose solution, Chinese medicinal extract, syrup and saline wastewater.

Item	Specification
Evaporation capacity	1000–50000 kg/h
Effects	2, 3, 4, or 5
Evaporation temperature	50–90°C
Degree of vacuum	-0.08 to -0.098 MPa
Material	SUS304 / SUS316L
Structural form	Falling film, rising film, or forced circulation
Control	PLC automatic
Safety protection	Overheating, overpressure, overload, low level
Certification	ISO9001, CE

Steam heat reuse yields up to 70% operating-cost savings compared to single-effect systems, according to Asianbios. Standard installation usually takes 20 days including performance testing. We offer 24/7 technical assistance with remote monitoring and supply of replacement parts. Our experts will adapt the equipment and the multiple effect evaporator technique to your feed. US locations additionally need to verify pressure-vessel code standards such as ASME Section VIII in the technical evaluation.

Verifying Performance and Avoiding Operating Mistakes

Verification begins with factory acceptance testing and continues through site acceptance, commissioning and ordinary production. Verify the accuracy of the instruments, responsiveness of the valves, warnings, interlocks, time for vacuum pull-down, leakage, removal of condensate, vibration and carryover. Then monitor steam consumption per kg of water evaporated, capacity, vacuum stability, pressure difference between effects and concentration change, comparing each against the design basis under the same feed and utility circumstances. Don't make these five typical mistakes: assume deeper vacuum is always better, mix up gauge with absolute pressure, raise steam to make up for scaling, overlook non-condensable gas, and change many variables at once. Training operators on the operating method of the multiple effect evaporator avoids most of them.

Conclusion

The boiling temperature in each effect is determined by the vacuum control and this in turn controls heat transmission, capacity, product quality and steam economy throughout the evaporator. The reuse of the vapour causes a pressure cascade. Absolute pressure is more important than gauge readings. The parameters must be read together, not alone. A regulated start, thorough shutdown and explicit emergency actions safeguard goods and equipment. Most low vacuum issues are caused by air leaks, condenser limitations, fouling or instrument errors. A standard diagnostic sequence detects them quickly. Cleaning on condition maintains capacity, but adding steam without monitoring fouling might worsen the situation. Feed qualities must be compatible with the feed arrangement, effect number and evaporator type. Acceptance tests to the design basis validate the outcome. A carefully designed multiple effect evaporator operating procedure brings these concepts together.

FAQ

1. Is there one ideal vacuum level?

No. The correct level relies on the qualities of the product, the boiling point elevation, the capacity of the condenser and the design of the equipment. A number is not generic. Use the supplier’s design curve, a verified multiple effect evaporator operating technique and pilot data.

2. What causes vacuum loss most often?

Air leakage, fouled condenser, heated cooling water, worn pump, plugged suction lines, malfunctioning instruments. Other factors include foaming and vapour overload. First compare gauges to transmitters, then utilities and trends.

3. When do I choose forward or backward feed?

Forward feed is suitable for low viscosity or hot feed. When the end product is viscous, backward feed helps.

4. What should I send for a quotation?

Submit input composition, flow rate, target concentration, evaporation capacity, operation hours, steam and cooling-water conditions, temperature limitations, materials and cleaning needs. Using that data our engineers may offer an effect number and feed configuration.

Discuss a Custom Multiple Effect Evaporator System with Asianbios

Looking for a manufacturer of multiple effect evaporator operating procedure that also enables commissioning? Asianbios produces 2-5 effect units from 1000 to 50000 kg/h in SUS304/SUS316L, with PLC control and average 20-day installation. Email your feed data, goal concentration and utility circumstances to plantex@asianbios.com and our engineers will provide you with transparent progress updates. Visit asianbios.com for more information.
