Disc Centrifuge Machine vs. Traditional Separators: Key Differences

The correct separation equipment may be the difference between a production line that runs smoothly and consistently and one that suffers from bottlenecks and contamination hazards. This comparison aims to see the difference of a disc centrifuge machine from the classic separators such as basket centrifuges, plate and frame filters and gravity settling tanks . By considering mechanism, efficiency, cleanliness, automation and industry fit, food, beverage, pharmaceutical and biotechnology processors may make a more informed decision on which technology best meets their throughput, purity and compliance needs. Disc centrifuge machines with capacities from 100 to 5000 L/h and separation factors up to 10000 g are a major improvement over the previous, labor-intensive technologies that are still used in many facilities.

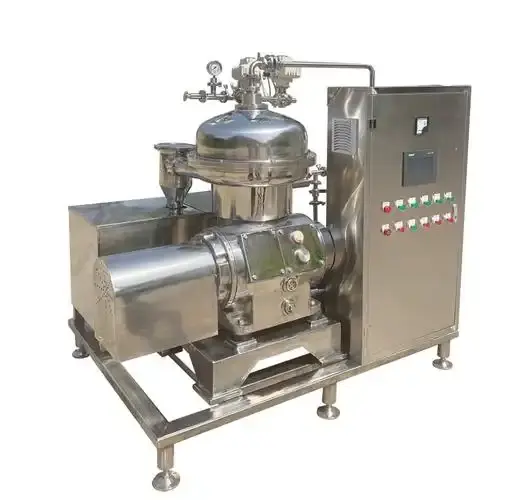

disc centrifuge machine

Understanding the Core Technology Gap

Before we get into the comparison of performance indicators, it’s useful to know the basic mechanical characteristics that divide these two types of equipment.

How a Disc Centrifuge Machine Achieves Separation

Disc centrifuge machine: A stack of conical discs revolving at 4000-10000 rpm within a sealed drum. This design provides a very large effective settling surface in a very small space. Fine particles are separated very quickly as the liquid flows constantly between the discs. The combination of the stainless-steel drum and disc assembly with PLC automated control ensures that the process is reliable and reproducible, making it feasible to produce solid-liquid or liquid-liquid three-phase separation without pausing production for human intervention.

Mechanics Behind Traditional Separators

Similar clarity may be achieved with conventional separators such as basket centrifuges and static settling tanks, but they need longer residence durations and a bigger footprint. Basket units generally function in batch cycles with manual loading, spinning and unloading, whereas gravity-based systems depend on density variations over hours, not seconds. They frequently have a difficult time handling small particles below a particular micron size resulting in less than perfect clarity and greater rework rates than with continuous centrifugal systems.

Why the Difference Matters for Modern Processing

The need for continuous, high-precision separation is part of the industry's larger requirements for speed, uniformity and decreased labour costs. A disc centrifuge machine meets these pressures front on with high g-force and continuous feeding and discharge, while standard separators frequently need another filtering step to get the same clarity. For processors of plant extracts, fermentation broths or dairy streams, this technical gap translates into meaningful variations in production, product quality and operating efficiency.

Comparing Separation Efficiency and Precision

It is efficiency measures that have caused many firms to change from previous separation techniques to disc-based systems.

Particle Size Handling Capabilities

However, the disc centrifuge machine really shines in terms of removing fine particles. The very short settling distance is due to the close spacing of the discs and allows the equipment to settle particles that would either pass through traditional filters or settle too slowly in gravity tanks. This feature is especially useful for clarification of fruit juices, herbal extracts and fermentation broths where sub-micron clarity is typically needed for downstream processing or bottling.

Separation Factor and G-Force Comparison

A convenient metric of centrifugal performance is the separation factor, expressed in multiples of gravity (g). Traditional separators create small forces, restricted by the size of the rotor and the speed at which it can be run. A disc centrifuge machine, because of its compact disc stack design, may obtain separation factors of 5000-10000 g. The increased power enables the same volume to be processed quicker, minimising the residence time and avoiding the thermal destruction of heat sensitive substances, such as vitamins or plant bioactives molecules.

Consistency Across Continuous Operations

Traditional batch based separators add unpredictability across cycles, as loading, spinning and unloading each impact on the properties of the end product. A disc centrifuge machine is fitted with a continuous feed and discharge mechanism, which removes these disruptions and guaranties constant output characteristics hour after hour. Consistency is particularly crucial in regulated businesses like medicines and functional food manufacturing, where batch-to-batch variability might impact compliance with CE, FDA or ISO requirements.

Performance Metric	Traditional Separators	Disc Centrifuge Machine
Operation Mode	Batch or semi-continuous	Fully continuous
Separation Factor	Typically under 3000 g	5000–10000 g
Fine Particle Capture	Limited, often incomplete	High-precision, sub-micron capable
Processing Speed	Slower, hours per batch	Minutes, continuous throughput
Consistency	Variable between cycles	Stable, PLC-controlled parameters

Evaluating Hygiene, Materials, and Maintenance

Any equipment that handles food, pharmaceutical or biotechnology items should be designed with respect to sanitary design and simplicity of cleaning.

Stainless Steel Construction and Sanitary Standards

SUS304 or SUS316L stainless steel, which meets the criteria of GMP and food industry hygiene, is used for the parts that come into contact with material in a disc centrifuge machine. Older basket or plate-frame designs of traditional separators may include gaskets, seams or materials that are more difficult to sanitise properly. The smooth and corrosion resistant surfaces of a disc centrifuge machine limit the potential for microbial build-up and make compliance with HACCP and FSSC22000 procedures easier.

Cleaning Protocols: CIP vs Manual Disassembly

One of the most practical distinctions is in the matter of cleaning. A disc centrifuge machine will often have a Clean-in-Place (CIP) system attached, enabling operators to rinse through the whole machine without disassembling it, saving hours of downtime between production cycles. Conventional separators often require the user to manually disassemble baskets, plates or filter media for cleaning, raising labour costs and the potential for insufficient sanitation between batches that might create product safety issues for delicate applications such as dairy or pharmaceutical processing.

Long-Term Durability and Corrosion Resistance

Its compact, rugged structure provides the disc centrifuge machine an edge in long-term endurance, especially when dealing with acidic juices, fermentation liquids or salty solutions that may damage lower-grade materials over time. Mechanical seals prevent leakage and cross-contamination, while a sturdy construction minimises wear due to vibration. Traditional separators made of mixed materials or with exposed moving parts may need to replace parts more often, increasing lifetime operating expenses even if the initial price is cheaper.

Assessing Automation, Control, and Operational Costs

But beyond mechanical performance, the degree of automation and total cost of ownership frequently dictate what technology is most appropriate for a specific manufacturing scenario.

PLC Automation vs Manual Operation

The disc centrifuge machine is PLC automated control and variable frequency drive. You may configure parameters once, and let the system automatically regulate feeding, speed and discharge. Traditional separators usually need manual adjustment and regular operator attention, which increases the possibility of human error and uneven results. Automation embedded into current centrifugal systems also permits remote monitoring of temperature, vibration and overspeed situations, enhancing safety and product uniformity.

Energy Consumption and Throughput Efficiency

The optimised motor transmission systems for a disc centrifuge machine are intended to lower power consumption relative to throughput which is a significant element in rising energy prices worldwide. Traditional separators, particularly those using lengthy batch cycles or numerous passes of filtering, tend to be more energy intensive per unit of final product because of the longer processing durations and the extra pumping or handling procedures between stages.

If you are evaluating whether a continuous disc centrifuge machine fits your specific process parameters, our technical team can review your material characteristics and throughput targets; feel free to reach out at plantex@asianbios.com for a tailored recommendation and specification sheet.

Labor and Downtime Cost Implications

Labour needs are very different across the methods. Continuous, automatic operation of a disc centrifuge machine lowers the requirement for continual human presence, while integrated CIP cycles greatly decrease cleaning-related downtime. Traditional separators, in comparison, often need specialised personnel for manual loading, unloading and cleaning, increasing labour costs and sometimes causing bottlenecks during busy production times.

Operational Factor	Traditional Separators	Disc Centrifuge Machine
Automation Level	Low to moderate	High, PLC-controlled
Cleaning Method	Manual disassembly	Integrated CIP
Labor Requirement	Higher, frequent supervision	Lower, minimal intervention
Energy Efficiency	Variable, often higher per unit	Optimized transmission design
Downtime for Maintenance	Longer	Shorter, streamlined design

Industry-Specific Suitability and Customization

Different sectors have different separation demands and knowing the strengths of each technique helps guide equipment selection.

Applications in Food, Beverage, and Pharma

The speed and cleanliness of a disc centrifuge machine is particularly advantageous for food and beverage makers of fruit juices, dairy or fermented beverages, especially when continuous production is required. Traditional separators can still be used for smaller scale operations or those without time constraints, but centrifugal systems are a good option for pharmaceutical and biotechnology applications, such as separating microbial material or purifying traditional Chinese medicine extracts because they are precise and constructed to be compliance-friendly.

Customization Options for Diverse Materials

The disc centrifuge machine may be adjusted to suit certain feedstocks since the material qualities can vary greatly, from viscous herbal extracts to diluted protein solutions, in terms of disc shape, processing capacity and discharge method. Once built, traditional separators sometimes provide less flexibility, making it challenging to accommodate new product lines or variations in raw material characteristics without substantial equipment modifications or replacements.

Scalability for Growing Production Needs

Since a disc centrifuge machine is modular and continuous in nature, producers may increase throughput as production ramps up without revamping the whole separation process. Customised setups may achieve larger capacity with the same levels of automation and cleanliness. Traditional separators generally have practical constraints in batch size or cycle time, meaning more units or major system changes are necessary to meet increasing demand.

disc centrifuge machine

Conclusion

Comparing a disc centrifuge machine with traditional separators highlights clear advantages in speed, precision, hygiene, and automation for modern processing environments. Continuous operation, high separation factors, and PLC-controlled consistency make centrifugal systems better suited to industries requiring reliable, scalable clarification. While traditional separators may still fit smaller or less demanding operations, businesses aiming for efficiency, compliance, and long-term cost savings increasingly find that disc centrifuge technology delivers superior overall value.

FAQ

Q: Is a disc centrifuge machine more expensive than traditional separators upfront?

A: Initial investment can be higher, but reduced labor, energy efficiency, and lower downtime often make the total cost of ownership more favorable over time compared to manual, batch-based traditional separators.

Q: Can a disc centrifuge machine handle the same range of materials as older separators?

A: Yes, and often more. Customizable disc configurations allow processing of juices, dairy, fermentation broths, plant extracts, and protein solutions, covering a broader range of viscosities and particle sizes than most traditional systems.

Q: How does cleaning differ between the two technologies?

A: A disc centrifuge machine typically includes integrated CIP systems for automated cleaning, while traditional separators often require manual disassembly, increasing downtime and labor costs between production cycles.

Upgrade Your Separation Process with Asianbios Today

Ready to move beyond the limitations of traditional separators? A modern disc centrifuge machine can boost throughput, improve hygiene compliance, and reduce long-term operating costs across food, beverage, and pharmaceutical applications. Our team offers customized specifications, fast delivery options, and complete installation support to match your exact production needs. Contact us at plantex@asianbios.com to request a technical consultation, discuss your material requirements, or schedule a demonstration and take the next step toward more efficient, reliable separation technology.
