Multiple-effect Evaporator Machine​s for High Volumes of Wastewater

Industrial facilities generating large volumes of saline or contaminated wastewater face mounting pressure to reduce discharge while recovering valuable resources, and a multi-effect evaporator machine has emerged as the practical solution for this challenge at scale. By reusing steam energy across multiple sequential evaporation stages, this equipment achieves evaporation capacities from 1000 to 50000 kg/h while cutting energy consumption dramatically compared to single-effect alternatives. This article examines how multi-effect technology addresses high-volume wastewater treatment specifically, covering the thermal cascade principle, configuration options, and practical considerations for facilities managing substantial liquid waste streams across chemical, pharmaceutical, and food processing operations.

Why High-Volume Wastewater Demands Multi-Effect Technology

The magnitude of the problems faced by facilities helps to explain why a single stage evaporation technique is not sufficient for large quantities of wastewater.

The Economics of Processing Large Liquid Volumes

Single-effect evaporation would not be economically viable for facilities producing thousands of kilos of wastewater per hour, since the cost of steam would rapidly increase without energy recycling between stages. A multi-effect evaporator machine is used to address this economic difficulty. It utilises secondary steam from previous effects to heat later effects, hence greatly lowering the total steam usage. This cascading energy concept may achieve huge reductions in wastewater volumes at a financial rate that ordinary evaporation cannot match.

Regulatory Pressure Driving Wastewater Reduction

Increasingly environmental rules limit the amount of discharge and the concentration of contaminants, forcing industries to use technology that may make a significant reduction in liquid waste before disposal or treatment. High-capacity evaporation directly tackles this demand by concentrating dissolved materials into a smaller volume, while creating cleaner condensate that may qualify for reuse or for easier downstream treatment, allowing facilities to satisfy increasingly strict environmental compliance standards.

Scale Requirements Across Different Industries

Chemical factories, pharmaceutical manufacturers and food processors have different effluent streams that vary in volume and content, but they all require equipment that can handle their production scales. The multi-effect evaporator machine can be configured to operate at capacities between 1000 and 50000 kg/h, enabling facilities in these various sectors to select equipment that is appropriately sized for their specific discharge volumes, rather than having to settle for undersized options that lead to processing bottlenecks.

Facility Scale	Typical Wastewater Volume	Suitable Configuration
Small-Medium Processing	1000–5000 kg/h	2–3 effect configuration
Large Industrial Operations	5000–20000 kg/h	3–4 effect configuration
Major Manufacturing Complexes	20000–50000 kg/h	4–5 effect configuration

The Thermal Cascade Principle Explained

Understanding precisely how energy flows through the system makes it clear why multi-effect systems may be so much more efficient than simpler options.

Sequential Heat Reuse Across Effects

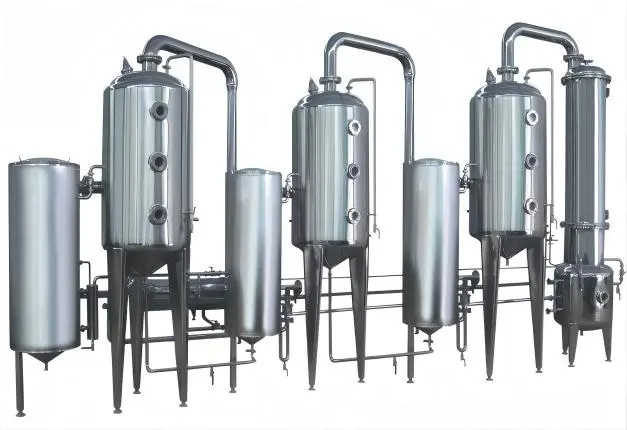

The most important feature of this technique is the transfer of secondary steam created in one evaporation effect to heat the next action in the sequence. A multi-effect evaporator machine (three, four or five effects) absorbs and reuses thermal energy again and over, doing significantly more evaporative work per unit of main steam input than could be achieved by a single stage of evaporation working alone.

Vacuum Conditions Enabling Progressive Temperature Reduction

The design is such that each subsequent effect normally runs at a lower pressure and temperature than the previous one, so that colder secondary steam from an earlier stage may still effectively heat the following chamber. The gradual lowering of pressure, kept within the vacuum range from -0.08 to -0.098 MPa, enables the whole cascade to work despite the drop in available steam temperature in each following step.

Quantifying the Energy Savings Achieved

The practical consequence of this cascade strategy is important: facilities may achieve large reductions in steam use while processing the same liquid quantities compared to single-effect evaporation. This efficiency translates directly into decreased operating costs for high-volume wastewater processing where energy costs would typically be one of the major continuing operational constraints for continuous large scale treatment operations.

Selecting the Right Configuration for Wastewater Applications

Once the underlying technology is understood, facilities need to choose which configuration best fits their wastewater characteristics and volume needs.

Choosing Between 2, 3, 4, or 5 Effect Systems

More effects usually means more energy efficiency but also more capital cost and system complexity . This is a realistic tradeoff that facilities must consider based on their unique volume and budget limits . Smaller operations or those with lower continuous wastewater volumes are better served with multi-effect evaporator machines with fewer effects, while larger industrial complexes processing tens of thousands of kilograms per hour can usually justify the extra cost of four or five-effect configurations to maximise energy savings over the long term.

Matching Structural Form to Wastewater Characteristics

Wastewater composition varies widely from industry to industry, from comparatively clean saline solutions to viscous or fouling-prone industrial effluents. The selection of different structural forms such as falling film, rising film and forced circulation designs allows the design to be tailored to specific wastewater characteristics with the assurance that facilities dealing with scaling or viscous waste streams can select forced circulation configurations that are more resistant to fouling than simpler falling film alternatives.

Accounting for Saline Wastewater Corrosion Concerns

High-salinity wastewater streams create distinct corrosion difficulties that need consideration in material selection and system design. The use of complete stainless steel construction, typically SUS304 or the more corrosion resistant SUS316L grade, ensures equipment integrity when processing saline discharge over long operational periods, an important consideration considering that saline wastewater treatment is one of the most common applications for this technology in chemical and industrial processing facilities.

If your facility is evaluating configuration options for a specific wastewater volume or composition, our technical team can help assess which effect number and structural form best suits your treatment goals; reach out to plantex@asianbios.com to discuss your particular wastewater characteristics and receive tailored recommendations.

Operational Benefits Beyond Volume Reduction

In addition to the decrease in the amount of wastewater, this technology offers a number of other operational benefits, which are important for the facilities with continuous treatment operations.

Continuous Automated Processing at Scale

The multi-effect evaporator machine may operate in a continuous manner with PLC-controlled automation without continual operator supervision, monitoring temperature, pressure, flow rates and concentration levels in real time. This automation is especially useful in wastewater treatment applications where the continuous production of discharge requires an equally continuous processing capability to avoid the problems of storage and handling that would result from batch processing.

Water Recovery and Potential Reuse Opportunities

In addition to concentrating the waste materials, the condensation system retains evaporated moisture as relatively clean condensate, providing options for water reuse in facility operations. This recovery function changes the equipment from a pure waste reduction tool to a resource recovery system that not only can balance fresh water intake needs, but improve the overall facility water management economics in addition to basic regulatory compliance.

Concentrated Byproduct Handling Considerations

As the amount of wastewater diminishes via evaporation , the dissolved particles are concentrated into a smaller volume of residual liquid or crystalline form . Facilities must prepare to manage this effectively . When multi-effect evaporation is used as part of an overall wastewater management strategy, the downstream needs for this concentrated byproduct (e.g., additional processing, disposal or possible resource recovery) should be considered in the design of the entire system.

Operational Benefit	Practical Impact for Wastewater Treatment
Continuous Processing	Matches continuous wastewater generation rates
Water Recovery	Potential reuse reduces fresh water demand
Concentrated Solids Output	Smaller volume for downstream disposal/recovery
Automated Monitoring	Reduces labor requirements for large-scale operation

Industry Applications Driving Adoption

“There are different reasons for different sectors with high-volume wastewater to use this technology,” he said, depending on the regulatory and operational demands.

Chemical Manufacturing Effluent Treatment

Chemical industrial plants create large amounts of saline or chemically complicated effluent that typically need considerable volume reduction for disposal. Industrial effluent is often aggressive in its chemical properties, but the corrosion-resistant construction of a multi-effect evaporator machine is well suited to handling these demanding streams. Industrial facilities also need the large-scale processing capacity of a multi-effect evaporator machine to ensure continuous operation.

Pharmaceutical and Fermentation Waste Streams

Residual organic chemicals and dissolved solids in wastewater produced in pharmaceutical manufacture and fermentation processes are advantageously concentrated before final treatment or disposal. This low temperature evaporation process (50-90°C) is mild and also provides the opportunity for recovery of important chemicals that would be lost in more aggressive treatments, providing an economic benefit to what would otherwise be a waste management cost.

Food Processing Wastewater Volume Reduction

Food and beverage producers produce large amounts of wastewater comprising organic matter, sugars and other dissolved solids in their processing. Multi-effect evaporation significantly reduces this volume, and the recovered condensate often meets quality standards for various facility uses, allowing food processors to address both environmental compliance and water resource efficiency as part of their wider sustainability goals.

Conclusion

A multi-effect evaporator machine provides the scalable, energy-efficient technology that high-volume wastewater treatment demands, using thermal cascade principles to process 1000-50000 kg/h while substantially reducing steam consumption compared to single-effect alternatives. From chemical effluent to pharmaceutical and food processing wastewater, this equipment's configurable design, corrosion-resistant construction, and continuous automated operation make it a practical solution for facilities seeking effective volume reduction alongside meaningful energy cost savings.

FAQ

Q: How many effects should our facility choose for wastewater processing?

A: The right number depends on your wastewater volume and budget considerations. Higher volumes generally justify more effects (4-5) for maximum energy savings, while smaller operations may find 2-3 effects more cost-effective.

Q: Can this equipment handle highly saline wastewater without corrosion issues?

A: Yes, construction using SUS304 or SUS316L stainless steel provides corrosion resistance suitable for saline wastewater applications, though SUS316L offers superior protection for particularly aggressive discharge streams.

Q: What happens to the condensed water recovered during processing?

A: Recovered condensate is typically clean enough for various reuse applications within facility operations, potentially reducing fresh water intake requirements and improving overall water management economics.

Partner with Asianbios for Scalable Wastewater Solutions

Ready to tackle high-volume wastewater challenges with proven evaporation technology? Our multi-effect evaporator machine solutions deliver configurable capacity from 1000 to 50000 kg/h, combining thermal cascade efficiency with corrosion-resistant construction for demanding industrial applications. With PLC automation, comprehensive safety systems, and dedicated installation support, we help facilities achieve meaningful volume reduction and energy savings. Contact our team at plantex@asianbios.com today to discuss your wastewater treatment requirements and receive a customized configuration recommendation.

References

1. Minnich, K., Neilson, J., & Rodriguez, S. (2018). "Multiple-Effect Evaporation for Industrial Wastewater Treatment." Environmental Progress & Sustainable Energy.

2. Perry, R. H., & Green, D. W. (2008). Perry's Chemical Engineers' Handbook. McGraw-Hill.

3. Metcalf & Eddy, Inc. (2013). Wastewater Engineering: Treatment and Resource Recovery. McGraw-Hill Education.

4. Geankoplis, C. J. (2003). Transport Processes and Separation Process Principles. Prentice Hall.

5. Mickley, M. (2006). Membrane Concentrate Disposal: Practices and Regulation. U.S. Bureau of Reclamation.

6. El-Dessouky, H. T., & Ettouney, H. M. (2002). Fundamentals of Salt Water Desalination. Elsevier Science.
