How a Centrifugal Discharge Machine Works in Industry

Continuous solid-liquid separation is the backbone of countless industrial processes, and a centrifugal discharge machine sits at the heart of this operation for facilities handling crystalline materials at scale. This equipment combines piston-pushing mechanisms with high-speed centrifugal force to separate, wash, and discharge materials in one continuous cycle, eliminating the stop-start inefficiency of batch processing. This article walks through the mechanical principles, internal components, and step-by-step operation of a centrifugal discharge machine, explaining why chemical, food, pharmaceutical, and salt production industries rely on this technology for dependable, high-volume dehydration of granular and crystalline substances.

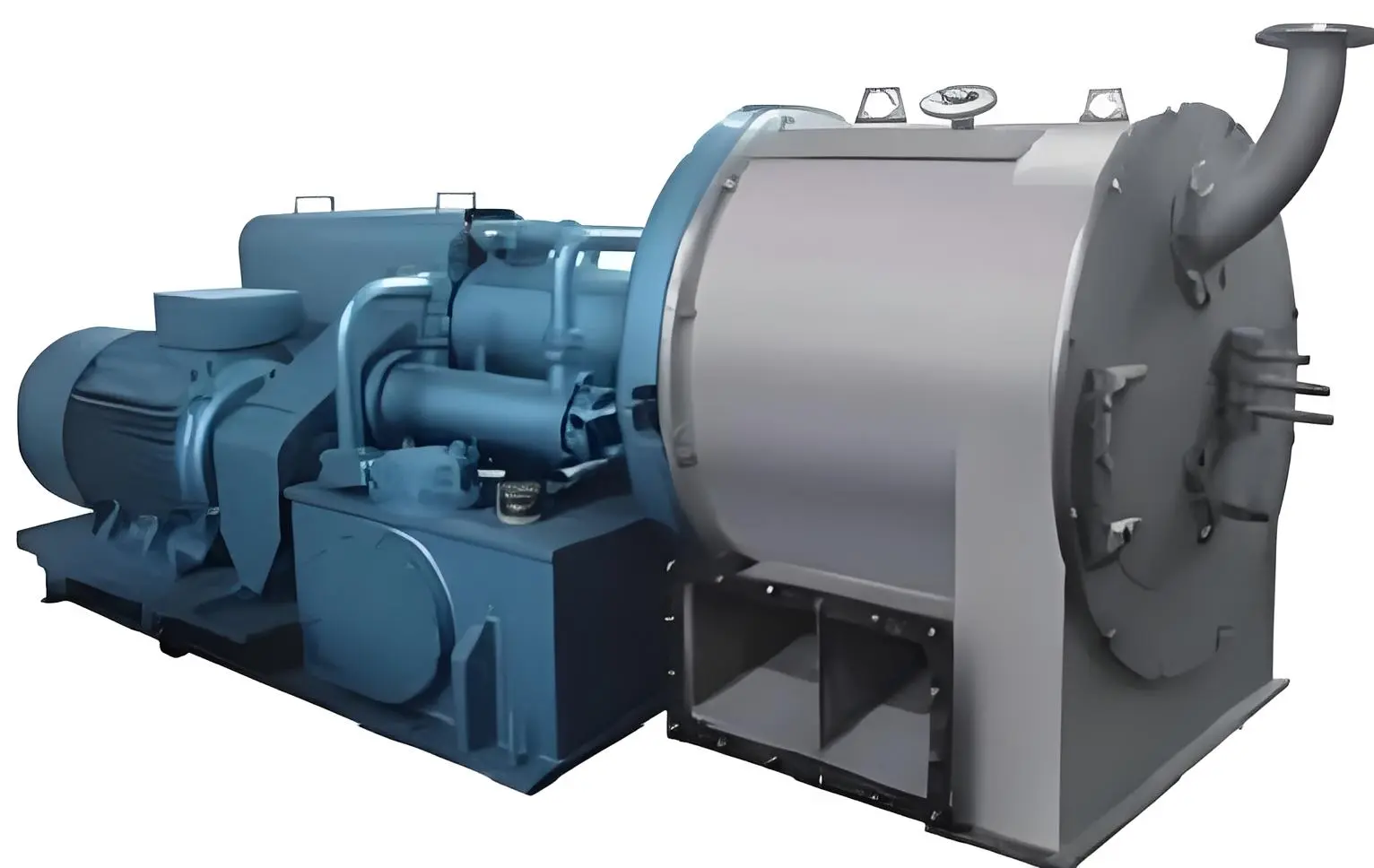

centrifugal discharge machine

The Fundamental Operating Principle

To understand the functioning of this equipment we must first understand the dual action mechanism which enables it to operate continuously.

Combining Piston Force with Centrifugal Motion

The centrifugal discharge machine works on a unique dual-mechanism basis. It employs a piston that physically forces material through the drum, and also uses high-speed spinning to create centrifugal force for separation. This combination enables for continuous operation rather than the batch cycles of the simpler centrifuges. The drum rotates between 1500 and 3600 rpm to provide separation factors up to 2000 G, while the piston pushes solids towards the discharge end, providing a continuous flow of separated material.

Why Continuous Operation Outperforms Batch Processing

Traditional batch centrifuges operate by loading, spinning, pausing and unloading. This means that there is downtime between cycles. A centrifugal discharger machine removes the material without stopping and processes 500 to 5000 kg/h and so removes this stoppage totally. This continuous process considerably enhances daily throughput for facilities processing huge amounts of salts, starch or chemical crystals, while minimising mechanical wear associated with the frequent start/stop cycles of previous equipment designs.

The Role of Pushing Frequency in Material Flow

The piston mechanism functions at a specified pushing frequency, usually 30 to 60 times per minute, which directly affects the flowability of material through the drum. Crystals that are finer and more fluid will be better for higher frequencies. Denser or more cohesive materials may be preferable for lower frequencies. The adjustable parameter enables the centrifugal discharge machine to tailor its discharge rhythm to the individual flow properties of the crystalline material being processed.

Breaking Down the Core Components

All of the foregoing functions rely on a coordinated collection of mechanical systems functioning in concert within the machine enclosure.

The Drum and Separation Chamber

The drum, as the key part of any centrifugal discharge machine, is made of SUS304 or SUS316L stainless steel, with diameters from Φ300 to 800 mm. Here is where the real separation takes place. The high-speed rotation drives the liquid through holes in the wall of the drum, while the solid particles are retained against the inner surface. It is constructed of stainless steel, which is resistant to corrosive action from salts, acids and other reactive crystalline compounds and retains the smooth surface finish required for sanitary processing.

The Piston Pushing Mechanism Explained

The pushing mechanism is the distinctive characteristic that distinguishes this equipment from regular centrifuges. The separated solid cake is continuously moved in small increments towards the discharge outlet by the carefully timed operation of the pistons so that no human handling is necessary. This mechanism must work with very high reliability since if it fails the whole separation process stops. This is why manufacturers produce these components from wear-resistant stainless steel, built for millions of pushing cycles during the lifetime of the equipment.

Transmission, Inlet, and Control Systems

Besides the drum and piston, the centrifugal discharge machine also has a motor direct drive transmission system to provide stable rotational power, an intake system to provide continuous supply of materials and a PLC control system to govern each operating parameter. This control system also monitors speed, temperature, vibration and load in real time, automatically modifying operations or initiating safety shutdowns when parameters exceed safe limits, protecting equipment and maintaining constant product quality throughout long production runs.

Component	Primary Function	Material/Technology
Drum Assembly	Houses separation chamber	SUS304/SUS316L stainless steel
Piston Pushing Mechanism	Advances solids toward discharge	Precision-engineered steel
Transmission System	Delivers rotational power	Motor direct drive
Inlet System	Manages continuous material feed	Automated flow control
Control System	Monitors and adjusts all parameters	PLC automatic control

Walking Through the Complete Workflow

With the components in place, it is helpful to trace the actual sequence of events that occur throughout a normal manufacturing cycle.

Material Entry and Initial Acceleration

The crystalline slurry is fed to the drum via the input system. Immediately the increasing centrifugal force acts on the slurry as the drum achieves operational speed. A centrifugal discharge machine is designed to rapidly accelerate material to separation speed, thereby decreasing the transition time during which separation efficiency may be lost. This period of high acceleration is important in attaining constant throughput in continuous operation.

The Separation and Washing Phase

When the liquid has attained its speed it travels out through the holes in the drum, the solid particles being held against the wall of the drum like a cake layer. Many applications additionally include a washing step in this phase, in which clean liquid is added to remove remaining contaminants from the crystal surface before final discharge. This capacity to wash makes a centrifugal discharge machine especially useful for applications such as citric acid or feed additive production, where the purity of the product directly impacts its market value.

Discharge and Continuous Cycle Repetition

As the piston goes forward, the cleaned and dewatered solid cake is gradually advanced towards the discharge end and leaves the drum, while new material enters at the same time at the input. This provides a continuous cycle in which feeding, separation, cleaning and discharge all take place at various locations along the length of the drum yet at the same time. The PLC system can synchronise the piston stroke time with the rotating speed so that it can provide a smooth, continuous flow of material over long production runs.

Understanding this workflow in detail often raises specific questions about how equipment parameters should be configured for particular materials or throughput targets; our technical team is available at producttech@asianbios.com to discuss your specific process requirements and help determine optimal settings for your application.

Matching Machine Capabilities to Material Types

Different crystalline materials respond differently to centrifugal force, thus it’s crucial to know how equipment specifications fit individual substances.

Processing Salts and Mineral Crystals

Salt manufacturing, e.g., mirabilite and table salt processing, is one of the most prevalent uses of this equipment type. The centrifugal discharge machine effectively handles the comparatively dense free flowing salt crystals. High rates of dehydration are obtained and the washing function eliminates leftover mother liquor which might impact product purity or store stability. This is where the corrosion resistant stainless steel build comes in, since salt is naturally corrosive.

Starch and Food-Grade Crystalline Processing

The equipment delivers a delicate but efficient separation, which is beneficial to starch processing and sugar refining processes. It reduces material damage while accomplishing the moisture reduction needed for future drying stages. Hygienic stainless-steel construction and conformance to HACCP requirements are important features for food-grade applications, giving operators confidence that continuous processing won’t compromise the safety or quality standards for consumable items entering the food supply chain.

Pharmaceutical and Chemical Crystal Applications

The pharmaceutical and chemical processing industries frequently require the greatest levels of purity, where even the smallest amount of contamination may make an entire batch worthless. A centrifugal discharge machine adapted to these applications is typically designed with special attention to accurate control of washing cycles and discharge timing so that crystalline active ingredients or chemical compounds meet demanding purity specifications while maintaining the constant throughput required for the economics of commercial scale production.

Material Type	Key Processing Requirement	Equipment Feature Utilized
Salts/Mirabilite	Corrosion resistance, high dehydration	SUS316L construction, high G-force
Starch/Sugar	Gentle handling, food-grade hygiene	Low material damage design
Pharmaceutical Crystals	High purity, contamination control	Precision washing, PLC monitoring
Feed Additives	Consistent moisture reduction	Continuous automated operation

Operational Efficiency and Long-Term Performance

But there are a number of elements outside the mechanical process that decide how effectively this equipment works in industrial usage over months and years.

Automation's Role in Consistent Output Quality

The PLC automated control system included in a centrifugal discharge machine not only operates the equipment, but also actively ensures constant output quality by modifying settings based on real-time monitoring data. The degree of automation also controls the variation that may be introduced by human operation, and provides crystalline products with constant moisture content and purity criteria from shift to shift, operator to operator, and production day to production day.

Energy Consumption and Operating Cost Considerations

The energy use must be included into the operational costs for facilities whose equipment is functioning 24 hours a day, 7 days a week, 365 days a year. A properly designed centrifugal discharge machine has a good separation performance with a manageable power draw. This is especially significant when working continuously at 500-5000 kg/h corresponding to a considerable daily energy consumption. Generally, motor direct-drive systems are more efficient than belt-driven systems, leading to lower power expenditures over time.

Maintenance Practices That Extend Equipment Life

The regular maintenance has a major effect on the durability of the centrifugal discharge machine ensuring uniform service. The stainless-steel structure makes cleaning between material changeovers easy, and the simple structural design allows for frequent examination of wear-prone components such as the piston mechanism and drum perforations. Facilities that adhere to regular maintenance plans—such as bearing lubrication and seal inspections—have fewer unexpected downtime events over the equipment’s operating life.

centrifugal discharge machine

Conclusion

A centrifugal discharge machine delivers continuous, high-volume solid-liquid separation through its distinctive piston-pushing and centrifugal force combination. From salt and starch processing to pharmaceutical crystal purification, this equipment's PLC-controlled automation, corrosion-resistant construction, and adjustable pushing frequency make it a dependable choice for industries requiring consistent, large-scale dehydration of crystalline materials without the downtime inherent in batch processing systems.

FAQ

Q: What separates this equipment from standard batch centrifuges?

A: The integrated piston-pushing mechanism enables continuous material discharge simultaneously with separation, eliminating the load-spin-unload cycle required by batch centrifuges and significantly increasing throughput capacity.

Q: Can this equipment handle washing in addition to separation?

A: Yes, many configurations incorporate a washing stage where clean liquid rinses residual impurities from the crystal cake before discharge, improving final product purity for applications like citric acid processing.

Q: How does pushing frequency affect processing different materials?

A: Adjustable pushing frequency, typically 30-60 strokes per minute, allows operators to match discharge rhythm to material flow characteristics, with finer crystals often suited to higher frequencies and denser materials to lower settings.
