What Is a Multi-effect Evaporator Machine and How Does It Work?

A multi-effect evaporator machine is industrial concentration equipment that removes water from liquid solutions by passing steam energy sequentially through multiple connected evaporation chambers, each operating at progressively lower pressure and temperature. Rather than discarding heat after a single use, this design reuses vapor generated in one stage to power evaporation in the next, achieving processing capacities from 1000 to 50000 kg/h while dramatically cutting steam consumption compared to single-stage alternatives. This article defines the technology in detail, explains the engineering principles that make it function, and identifies the specific industries where this equipment has become indispensable for large-scale liquid concentration.

multi-effect evaporator machine

Defining the Multi-Effect Evaporator Machine

Before exploring mechanics, it helps to establish a clear working definition of what distinguishes this equipment from simpler concentration alternatives.

A Formal Definition and Basic Purpose

A multi-effect evaporator machine is, technically, a group of evaporation containers, or “effects”, hooked up together, to concentrate liquid solutions by recirculating heat energy through a number of successive stages under vacuum circumstances. Its basic goal is to extract water from dilute solutions, whether plant extracts, fermentation broths or industrial wastes, with less external energy input needed for processing each unit of liquid than for processing it via separate, unconnected evaporation processes.

What "Effects" Actually Mean in Practice

The term "effect" refers to each individual evaporation stage within the connected system, with configurations typically ranging from two to five effects depending on application needs and capital investment considerations. Each effect functions as a semi-independent evaporation chamber, but crucially, the vapor produced in one effect becomes the heating medium for the next, creating the cascading energy relationship that defines this entire equipment category and separates it from standalone single-effect evaporators.

How This Differs from Single-Effect Alternatives

In a single-effect evaporator, the steam is used just once, and a large amount of thermal energy is lost by discharging the vapour produced after condensation. A multi-effect evaporator machine instead extracts additional evaporative work from that same vapour by routeing it to subsequent chambers before finally condensing it. This means that the same quantity of primary steam does considerably more total evaporation across a multi-effect configuration than it could achieve in a comparable single-stage system.

Terminology	Definition
Effect	Individual evaporation chamber within the cascade
Primary Steam	External heat source supplied to the first effect
Secondary Steam	Vapor generated within an effect, reused for heating next
Vacuum Degree	Negative pressure level maintained throughout system

The Engineering Principles That Make It Work

Understanding the underlying physics clarifies why cascading multiple effects together produces such significant efficiency advantages.

Pressure-Temperature Relationships Across Effects

The entire system relies on the physical principle that reducing pressure lowers the boiling point of water. Each successive effect within a multi-effect evaporator machine operates at incrementally lower pressure than the one before it, which allows the somewhat cooler secondary steam arriving from an earlier stage to still boil the liquid in the next chamber. Without this carefully engineered pressure gradient, later effects wouldn't receive sufficient temperature differential to sustain continued evaporation.

Vacuum Degree and Its Role in Gentle Processing

The dual goal of maintaining vacuum levels between -0.08 and -0.098 MPa throughout the system at the same time is to allow the pressure cascade mentioned above and to keep the evaporation temperatures low enough, often 50-90°C, to avoid thermal degradation of heat-sensitive compounds. This dual role makes vacuum management one of the most important engineering issues in system design, as bad vacuum control would adversely impact both energy efficiency and product quality results.

Thermal Efficiency Gains Quantified

The practical result of this cascading pressure-temperature relationship is that facilities can achieve substantial reductions in steam consumption, sometimes reported as high as 70% lower operating costs compared to single-effect systems processing equivalent liquid volumes. This efficiency gain directly explains why industrial-scale concentration operations increasingly favor multi-effect configurations despite their higher initial capital investment relative to simpler single-stage equipment.

Inside the System: Key Functional Components

With engineering principles established, examining the physical hardware helps clarify how theoretical efficiency translates into practical, reliable operation.

Heating and Separation Chambers Within Each Effect

Every effect contains a heating chamber, where thermal energy transfers into the liquid causing evaporation, paired with a separation chamber where vapor cleanly disengages from the concentrating liquid phase. Precision engineering of heat exchange surfaces within these chambers maximizes thermal transfer efficiency at each stage, ensuring that available energy, whether fresh primary steam or recycled secondary vapor, performs as much evaporative work as physically possible before moving to the next effect.

The Condensation and Vacuum Support Systems

At the terminal end of the cascade, condenser systems capture remaining vapor and convert it back to liquid form, often yielding water clean enough for various reuse applications. This condensation process works hand-in-hand with dedicated vacuum pumps that continuously maintain the negative pressure environment essential for the entire system's operation, together forming the backbone that sustains consistent processing conditions throughout extended production runs.

Circulation and Material Handling Infrastructure

Variable-speed circulation pumps manage liquid movement both within individual effects and between sequential stages, preventing the localized fouling or concentration irregularities that could otherwise compromise heat transfer performance. This becomes especially important when a multi-effect evaporator machine processes viscous materials like syrups or thick plant extract solutions, where inadequate circulation management could create uneven concentration results across different portions of the processed batch.

Automated PLC Monitoring and Control

Temperature, pressure, flow rate and concentration parameters are monitored by the centralised PLC control system throughout each effect and the process conditions are instantaneously altered in an effort to keep the process conditions at their optimum point without the need for continual human monitoring. Integrated safety monitoring for over-temperature, over-pressure, overload and low-level circumstances ensures continued operation without equipment damage and product spoilage.

Because configuration choices around effect number and structural form significantly influence both efficiency and suitability for specific materials, it's often worth discussing your particular application details with knowledgeable specialists before finalizing equipment specifications; our team is available at producttech@asianbios.com to help evaluate your requirements.

Step-by-Step Operational Sequence

Tracing the complete workflow from raw material entry to finished concentrate helps consolidate understanding of how all these components function together in practice.

Feeding and First Effect Evaporation

The process begins as raw liquid enters the first effect's heating chamber through automated feed controls, where externally supplied primary steam raises the material to evaporation temperature. This initial stage produces both a somewhat concentrated liquid output and vapor that will serve as the heating source for the second effect, establishing the foundation for the entire cascading sequence that follows.

Progressive Concentration Through Sequential Effects

As partially concentrated liquid and generated vapor move through each subsequent effect, the material becomes progressively more concentrated while the system extracts additional evaporative work from the diminishing thermal energy carried forward through the cascade. This sequential processing continues through however many effects the specific configuration includes, with each stage contributing incremental concentration until the material approaches its target specification.

Final Concentration Verification and Discharge

Once liquid density reaches predetermined target specifications, continuously monitored through integrated sensors, automated systems trigger discharge of the finished concentrate from the final effect. Simultaneously, remaining vapor from this last stage passes to the condenser for recovery, completing the cycle while the system continues receiving fresh feed material at the first effect, sustaining genuinely continuous production rather than requiring batch-style stops and restarts.

Process Stage	Key Activity
Feeding	Raw liquid enters first effect via automated system
Primary Evaporation	Steam heating initiates first-stage concentration
Cascading Effects	Vapor reused sequentially through remaining effects
Condensation	Final vapor recovered as reusable water
Discharge	Automated release of finished concentrate

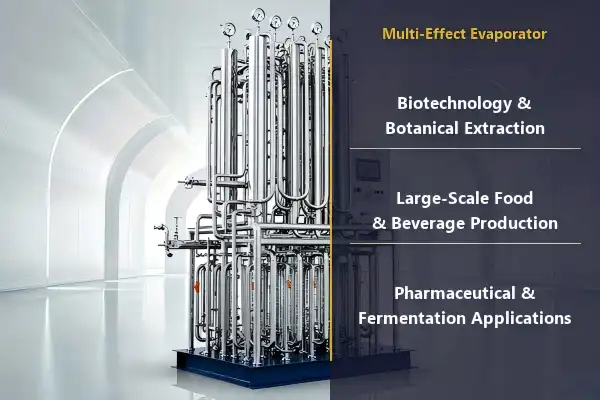

Industries That Depend on This Technology

Having established both definition and mechanics, it's useful to survey where this equipment delivers the most practical value across different manufacturing sectors.

Biotechnology and Botanical Extract Processing

Centres focusing on the concentration of plant extract solutions and traditional herbal formulations benefit from the mild, low-temperature nature of this technique, which helps to retain bioactive chemicals that could otherwise be lost with more vigorous heating. The equipment is especially useful for the manufacture of botanical and traditional medicine, since the vacuum-assisted, 50-90°C working range preserves sensitive alkaloids and flavonoids throughout the concentration process.

Large-Scale Food and Beverage Production

On an industrial scale, the method gives significant energy efficiency benefits for concentrating glucose solutions, refining syrups and processing juice. The cascade thermal efficiency translates immediately into considerable production cost savings for food producers processing thousands of kg of liquid on a daily basis. Gentle processing conditions assist to retain the flavour and nutritional attributes that characterise consumer product quality.

Pharmaceutical and Fermentation Applications

Pharmaceutical producers and fermentation facilities rely on repeatable, automated concentration for solutions of active ingredient and fermentation broths where product integrity directly correlates to medicinal or functional value. The accurate PLC controlled parameters and the reliable continuous operation provide the repeatability criteria required by regulated pharmaceutical production settings for repeated batches of manufacture.

Environmental and Wastewater Applications

This technology is increasingly being used in industrial facilities with saline wastewater or process effluent to reduce the volume of discharge while recovering usable water via an integrated condensation system, achieving regulatory and resource efficiency goals in one processing solution.

Applications

Conclusion

A multi-effect evaporator machine concentrates liquids efficiently by cascading steam energy through multiple sequential evaporation effects under vacuum conditions, achieving substantial energy savings compared to single-stage alternatives while processing 1000-50000 kg/h at gentle temperatures. Understanding its component design and operational sequence clarifies why this technology remains the standard choice for biotechnology, food, pharmaceutical, and environmental applications requiring reliable, cost-effective large-scale concentration.

FAQ

Q: What does the number of "effects" actually mean for performance?

A: More effects generally mean greater energy efficiency since thermal energy gets reused more times before being discarded, though this comes with increased capital cost and system complexity compared to fewer-effect configurations.

Q: How is this technology different from a low-temperature evaporator?

A: While both use vacuum-assisted low-temperature evaporation, multi-effect systems specifically cascade steam energy through multiple connected chambers for large-scale efficiency, whereas simpler low-temperature units typically operate as single-stage systems for smaller volumes.

Q: Can the vapor recovered during condensation be reused?

A: Yes, condensate recovered at the final stage is often clean enough for various facility reuse applications, providing additional water resource value beyond the primary liquid concentration objective.
