How Does a Disc Centrifuge Machine Separate Fine Solids?

Separating fine solids from liquid mixtures is one of the most persistent challenges across food processing, pharmaceuticals, and biotechnology. Traditional filtration methods often struggle when particles are microscopic or when high throughput is required without compromising clarity. Enter the disc centrifuge machine—a high-speed, precision-engineered solution that harnesses centrifugal force to achieve exceptional solid-liquid and even liquid-liquid-solid three-phase separation. This article takes you inside the technology, exploring its core working principles, critical components, industry applications, performance advantages, and the key factors to consider when selecting one for your production line.

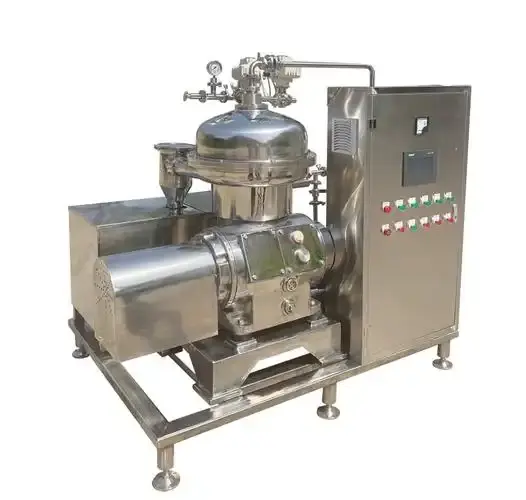

disc centrifuge machine

The Core Principle: How Centrifugal Force Powers the Disc Centrifuge Machine

To understand how a disc centrifuge machine works, you have to understand the fundamentals of the physics. This apparatus amplifies the power of gravity thousands of times instead of depending on gravity alone, which is sluggish and not very good at dealing with tiny particles, so that even the tiniest suspended solids move quickly to the outside edge of a rotating drum.

The Physics of Centrifugal Separation

Basically, a disc centrifuge machine works on the principle of the difference in density between solid particles and liquid around them . At speeds of between 4,000 and 10,000 rpm, the drum creates a centrifugal force that may be over 10,000 times the force of gravity (10,000g). The heavier solid particles are forced outwards, towards the wall of the drum, under this huge pressure, while the lighter, cleared liquid moves inside and is removed via a separate outlet. The theory is the same as when you swing a wet towel, the water flies off because it is less dense than the fabric but the disc centrifuge machine implements this notion at industrial scale with exceptional accuracy.

Why Disc Geometry Matters

The disc centrifuge is characterised by the fact that a stack of conical discs is located within the drum. These discs produce many little channels, greatly decreasing the distance a particle must travel before hitting a solid surface. In a traditional bowl centrifuge the particles have to travel the complete radius of the bowl, however in this case the space between the discs may be as small as 0.4-1.0 mm, thus the particles only need to travel a portion of this distance. This geometric innovation increases the separation efficiency and enables the disc centrifuge machine to catch particles down to just a few micrometres in size with amazing consistency.

From Feed Input to Clarified Output

The operating flow of a disc centrifuge machine is very simple. A liquid mixture is fed into the centre of the apparatus by a feed pipe and dispersed between the interstices of the revolving discs. As the drum turns, centrifugal force causes particles to be thrown outwards along the bottom of each disc, where they settle out as silt. The cleared liquid, with no suspended contaminants, flows in and out of predetermined outlets. At the same time, the concentrated solids (also termed sludge or sediment) are intermittently or constantly discharged via a special slag removal device to ensure continued operations.

Anatomy of a Disc Centrifuge Machine: Key Components Explained

A high performance disc centrifuge machine is a well-assembled system with every part playing a key role in obtaining clean, consistent separation outcomes. From the drum housing the separation process to the automated control system that runs every single parameter, each and every component is designed for durability, cleanliness and efficiency.

The Drum and Disc Assembly

Drum is the core of every disc centrifuge machine. It is a high precision rotating chamber, normally made from SUS304 or SUS316L stainless steel. These are corrosion resistant materials meeting food-grade and pharmaceutical-grade requirements. The inside of the disc assembly consists of dozens of conical plates, uniformly spaced. These discs are meticulously constructed to provide equal distribution of flow and uniform separation across all channels. The quality of the drum-disc assembly directly impacts the precision of separation, processing capacity and service life of the whole disc centrifuge machine.

Transmission System and Drive Mechanism

The transmission system of a disc centrifuge machine is used to accelerate the drum and to keep it at optimum working speed. Most newer machines have either a direct-connect drive or a belt drive and come with a variable frequency drive (VFD) that enables operators to dial in the spindle speed depending on the qualities of the material they are cutting. This adaptability is very important since various feedstocks, for example a viscous plant extract solution or a low-viscosity fruit juice, may need different spinning speeds for the best separation. A well-engineered transmission system offers smooth acceleration, vibration-free operation and energy-efficient efficiency throughout lengthy production runs.

Feeding, Discharge, and Slag Removal Systems

Well designed feeding and discharging systems are necessary for continuous disc centrifuge machine to provide stable material flow. The feed system delivers the liquid mixture to the drum at a regulated pace. The discharge system distributes the cleared liquid and concentrated solids to separate collecting sites. The slag discharge mechanism is usually hydraulically driven and is especially useful for applications with large solid loads. The intermittent or continuous expulsion of collected silt avoids accumulation that might decrease separation efficiency. This automatic waste treatment decreases down time, ensuring the disc centrifuge machine is operating at top performance without the need for constant user intervention.

PLC Automated Control System

The modern disc centrifuge machine types are fitted with PLC (Programmed Logic Controller) automated systems to control all the aspects of the operation. These controllers monitor key parameters in real-time such as spindle speed, feed rate, vibration levels and temperature. If any parameter is over the predefined range, such as overspeed or excessive vibration, the PLC will activate the protection alarm and may quickly shut down the machine to avoid harm. This degree of automation decreases the need for continual operator monitoring, reduces human error and gives a clear digital record of production data for quality assurance audits.

Component	Primary Function	Key Material / Technology
Drum & Disc Assembly	Houses the separation process; creates narrow channels for particle migration	SUS304 / SUS316L stainless steel; precision-machined conical discs
Transmission System	Accelerates and maintains drum at optimal speed	Variable Frequency Drive (VFD); direct-connection or belt drive
Feeding & Discharge System	Controls material input and separated output streams	Continuous-feed design with dedicated phase outlets
Slag Removal Mechanism	Ejects accumulated sediment automatically	Hydraulic operation; intermittent or continuous discharge
PLC Control System	Monitors speed, temperature, vibration; automates safety responses	PLC with overspeed, temperature, and vibration sensors

Industries That Rely on Disc Centrifuge Machine Technology

The disc centrifuge machine is one remarkably versatile piece of equipment used in a surprisingly broad number of industries. This method is a suitable when a clear, particle-free liquid is the desired end result or where important biological material must be recovered from a fermentation broth.

Plant Extract and Herbal Processing

In the plant extract business the goal is always to get a clear, impurity free solution. The first extraction, whether it is for stevia extract, curcumin, wolfberry polysaccharides or other botanical actives, generally produces a liquid containing tiny particle matter, cell debris and colloidal contaminants. This is where a disc centrifuge machine comes in, swiftly separating these tiny particulates from the desired solution and resulting in a cleared extract that fulfils strict purity standards. The mild processing with brief residence time also helps to safeguard the heat-sensitive bioactive chemicals, therefore, retaining the potency and colour of the finished product.

Food and Beverage Clarification

The food and beverage business is very reliant on the disc centrifuge machine to carry out clarifying steps that impact product quality and customer desirability. For example, while processing apple juice, the machine eliminates the pulp particles and haze-causing colloids so that it may get a stunningly clear juice. It is used in dairy farms to separate cream from milk, to clarify whey and to eliminate germs from milk in a procedure called bactofugation. Made of stainless steel and designed with hygiene in mind, the equipment meets food safety standards, giving companies the confidence that they are not risking infection.

Pharmaceutical and Biotechnology Applications

The pharmaceutical and biotech firms need the utmost purity, consistency and regulatory compliance. The disc centrifuge machine is fulfilling these requirements and provides a GMP-compliant separation of traditional Chinese medicine extracts, medication solutions, protein preparations and microbiological cultures. The automated PLC control offers the traceability and process documentation required by regulators, and the stainless steel contact surfaces assure no reactive contamination into the product stream. Must-have benefits for organisations manufacturing injectable-grade or oral-dosage biologics include the dependability and cleanability of this equipment.

Biological Fermentation Processing

Fermentation processes produce complicated mixes that comprise useful products (enzymes, amino acids, organic acids, etc.) in suspension in cell biomass and leftover medium. Efficient separation of the intended product from this soup is an important stage in manufacturing. A disc centrifuge machine works well here as it is able to handle feeds with high solid loads and can provide clean separation of cells, detritus and the desired liquid phase. Its capacity to run continuously is very useful in big fermentation plants where stopping the batch might be expensive. The high separation factor guaranties even the smallest bacterial cells or yeast particles are efficiently trapped.

Industry	Typical Feed Material	Separation Goal
Plant Extracts	Stevia extract, curcumin solution, herbal infusions	Remove fine particulates and cell debris for pure botanical solutions
Food & Beverage	Fruit juices, dairy milk, protein solutions	Achieve crystal-clear clarity; separate cream; remove bacteria
Pharmaceutical / Biotech	TCM extracts, drug solutions, enzyme preparations	GMP-grade purification with full process traceability
Biological Fermentation	Fermentation broths, microbial cultures	Isolate target compounds from cell biomass and residual media

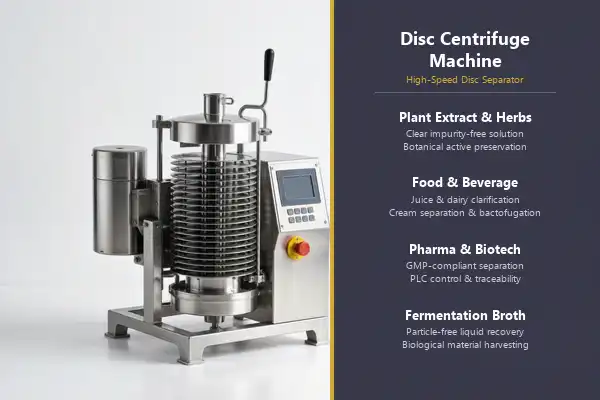

Disc Centrifuge Machine

Performance Advantages That Set a Disc Centrifuge Machine Apart

The real advantage of a disc centrifuge machine over other separation technologies like as plate and frame filters, membrane systems or decanter centrifuges is the ability to achieve accuracy, throughput and operational continuity in a small footprint.

High Separation Precision for Fine Particles

The disc centrifuge machine's stacked disc design provides a very short settling distance, which allows it to catch particles that would just pass through traditional separation equipment. With a separation factor up to 10,000g, particles as tiny as one micrometre may be efficiently removed. This degree of accuracy is vital for businesses such as medicines and plant extracts where even a little haze or fine silt might affect the appearance, stability or compliance for regulatory purposes of the product. The outcome is a refined liquid of excellent purity, every batch.

Continuous Operation and Large Processing Capacity

Disc centrifuge machines are intended for continuous operation and do not need the stop-start cycles necessary to clean and remove particles as in batch processing equipment. One machine can run high-volume manufacturing lines without becoming a bottleneck with processing capacity of 100 to 5,000 litres per hour (customisable beyond). The automatic slag discharge system discharges solids without interrupting the process and the integrated CIP (Clean-in-Place) capability provides for quick cleaning between product changeovers. This continuity immediately translates into more uptime, more throughput and cheaper per-unit processing costs.

Hygienic Design, Durability, and Energy Efficiency

All surfaces of a disc centrifuge machine that touch the product are made of high quality stainless steel (SUS304 or SUS316L) with precision welding and polishing to remove bacteria harbouring sites. The compact structural design enables low centre of gravity and steady operation at maximum speed. The mechanical seals are used to avoid leakage and cross contamination. Apart from cleanliness, the optimised motor and transmission system is intended to save energy and reduce the power consumption per litre processed. Routine maintenance is made simple by its modular design, allowing rapid access to discs, seals and bearings without the need for specific equipment or long downtimes.

Selecting the Right Disc Centrifuge Machine for Your Operation

Selecting a disc centrifuge machine is not a one size fits all. The ideal configuration will rely on your feed material, throughput goals, regulatory environment and long-term production plan. By taking these aspects into consideration you can guarantee that the equipment you purchase will provide you the best return throughout the service life of the equipment.

Processing Capacity and Speed Requirements

The first thing you want to consider is throughput. How many litres per hour does your disc centrifuge machine need to process? A unit with a rating of 100–500 L/h may be appropriate for a small pilot facility, while a commercial-scale plant extract operation may need 3,000–5,000 L/h or more. Spindle speed is also crucial, as higher rpm creates more centrifugal force, which is required to separate extremely tiny or low density particles. But at greater speeds you also have more mechanical stress, therefore the machine has to be designed for the speed range you want. Trusted vendors like Asianbios provide tailor made setups that match your exact production needs with drum size, number of discs and motor power.

Material Compatibility and Construction Quality

"Not all stainless steel is made equal. For food, beverage and pharmaceutical applications, SUS316L is often preferable over SUS304 because to its higher resistance to chloride pitting and more stringent hygiene requirements. Selection of Disc Centrifuge Machine: Ensure that all product contact parts including the drum, discs, feed intake and discharge nozzles are of the correct quality. Standards like as CE, ISO9001 and HACCP provide you further confidence that the equipment has been developed and tested to globally recognised norms. Failure to achieve these criteria might expose your organisation to regulatory risk and product responsibility.

Automation, Control Features, and After-Sales Support

The amount of automation on your disc centrifuge machine will directly effect your labour costs, process uniformity and capacity to record output for quality audits. The standard of the industry nowadays is PLC controlled system with VFD, integrated safety monitoring (overspeed, vibration, temperature) and CIP capabilities. Beyond the hardware, evaluate the supplier’s after-sales commitment: do they provide on-site installation help, operator training, remote diagnostics and a trustworthy supply chain for replacement parts? Asianbios offers full technical assistance from engineering advice for manufacturing line design to make sure your investment will work reliably for years.

Selecting the proper equipment partner is as crucial as selecting the correct machine. If you are considering a disc centrifuge for your production line, the Asianbios engineering team is ready to give you with thorough technical details, unique configuration advice and affordable price. Let’s discuss your separation difficulties, contact us at plantex@asianbios.com – we answer within hours and may provide fast delivery for urgent needs.

Conclusion

The disc centrifuge machine stands as one of the most efficient and reliable solutions for separating fine solids from liquid mixtures across food, pharmaceutical, botanical extract, and biotechnology industries. Its stacked-disc geometry, high centrifugal force, continuous operation capability, and PLC-controlled automation deliver a combination of precision, throughput, and hygiene that few alternative technologies can match. By understanding the working principles, key components, and selection criteria outlined in this guide, you are well-equipped to make an informed investment that enhances product quality, reduces processing time, and supports long-term production scalability.

FAQ

1. What types of materials can a disc centrifuge machine process?

A disc centrifuge machine is highly versatile and can process a wide range of liquid mixtures, including plant extract solutions, fermentation broths, fruit juices, dairy products, protein solutions, traditional Chinese medicine extracts, and microbial culture suspensions. It is effective for any application requiring the removal of fine suspended solids or the separation of immiscible liquid phases. The key requirement is that the feed must be pumpable and that there is a sufficient density difference between the phases to be separated.

2. How does a disc centrifuge machine differ from a standard tubular bowl centrifuge?

While both are centrifugal separators, a disc centrifuge machine uses a stack of conical discs to create short settling distances, enabling it to capture much finer particles at higher throughput rates. A tubular bowl centrifuge, by contrast, has a simple cylindrical bowl and generally handles smaller volumes but can achieve very high g-forces. For industrial-scale clarification of food, beverage, and pharmaceutical liquids, the disc-type machine is typically preferred due to its continuous operation, automated solids discharge, and superior processing capacity.

3. What certifications does Asianbios' disc centrifuge machine carry?

Our disc centrifuge machine is manufactured in compliance with ISO9001 quality management standards and carries CE European conformity certification. Additionally, the hygienic design supports HACCP food safety requirements and GMP guidelines for pharmaceutical applications. We can also provide documentation to support FCC and UL/CSA certification upon request, depending on the destination market and regulatory requirements of the customer.

Upgrade Your Separation Process with Asianbios' Disc Centrifuge Machine

Achieve superior clarity and consistency in your production line with an engineered disc centrifuge machine built to international CE, ISO9001, and HACCP standards. Asianbios offers customizable processing capacities from 100–5,000 L/h, stainless steel SUS304/316L construction, and full PLC automation—all backed by fast delivery, low MOQ options, and dedicated technical support. Contact our team today at plantex@asianbios.com for a tailored quote, free technical consultation, or to request a sample separation trial. Let us help you find the perfect centrifugal solution for your specific application.

References

1. Leung, W. W.-F. (2009). Centrifugal Separations in Biotechnology. Butterworth-Heinemann, Oxford.

2. Svarovsky, L. (2000). Solid-Liquid Separation (4th ed.). Butterworth-Heinemann, Oxford.

3. Axelson, J. E. L. (1985). Disc Stack Centrifuges: Design and Application. In Progress in Filtration and Separation (Vol. 4, pp. 159–194). Elsevier.

4. Wakeman, R. J., & Tarleton, E. S. (2005). Solid/Liquid Separation: Principles of Industrial Filtration. Elsevier, Amsterdam.

5. Purchas, D. B., & Sutherland, K. (2002). Handbook of Filter Media (2nd ed.). Elsevier Advanced Technology, Oxford.

6. Fuchs, N. A. (1964). The Mechanics of Aerosols. Pergamon Press, Oxford.
